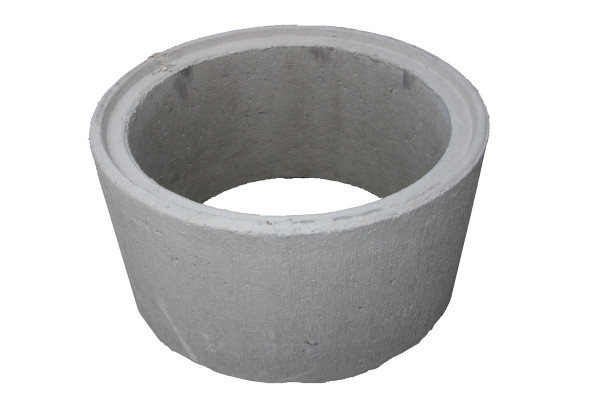

Shaft ring with fold DIN 4034 Part 2 SR-F 800x500mm smooth

Shaft ring with fold DIN 4034 Part 2 Shaft prefabricated parts according to DIN 4034 Part 2... more

Shaft ring with fold DIN 4034 Part 2

Shaft prefabricated parts according to DIN 4034 Part 2 (10.90) are only suitable for the construction of shafts for wells and drainage systems. Shaft rings with fold DIN 4034 Part 2 have a minimum wall thickness of 90 mm and a peak pressure force of 47 KN/m for a shaft ring DN 1000. The watertightness is tested in accordance with DIN 4281: Concrete for drainage objects as a drop in the water level on the pressureless filled component. Elastomer sealants are not mandatory and are generally not used.

Gewicht (kg):	265
Höhe (mm):	500
Wandstärke (mm):	90
Nennweite DN (mm):	800
Artikeltyp Revisionsschächte:	Schachtring
Ausführung Revisionsschächte:	glatt
Material Revisionsschächte:	Beton
Artikelart:	Schachtring
Hersteller:	Kühne
