Ostendorf Kunststoffe KG 2000 socket plugs Material Polypropylene (PP), mineral-reinforced.... more

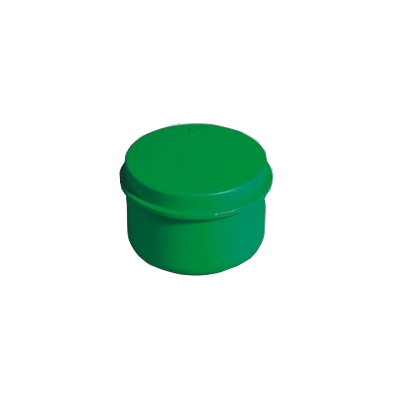

Ostendorf Kunststoffe KG 2000 socket plugs

Material
Polypropylene (PP), mineral-reinforced.
¬†
Pipe structure
Solid wall pipe system with homogeneous wall structure.
¬†
Connection
The pipe system is connected using a plug-in socket with a patented sealing ring pre-assembled at the factory.
¬†
Seal
Rubber rings in accordance with DIN EN 681.
¬†
Color
May green RAL 6017
¬†
Quality requirements
DIN EN 14758
¬†
Manufacture
KG 2000 Plastic piping systems for underground, pressureless sewage canals and pipes - polypropylene with mineral additives (PP-MD). The general requirements for pipes and fittings for underground sewage canals and pipes of DIN EN 476 and the general quality requirements of DIN 8078 are used as a basis for the manufacture of the pipes and fittings.
¬†
Area of application
Underground sewage canals and pipes. The pipes are resistant to normal sewage (pH 2 ‚Äì pH 12). In special cases, the chemical resistance can be found in Supplement 1 of DIN 8078.
