preview: attachment 300x300mm Kl. B125 SW 25mm cast gutter form preview: attachment 300x300mm Kl. B125 SW 25mm cast gutter form
attachment 300x300mm Kl. B125 SW 25mm cast gutter form
attachment 300x300mm Kl. B125 SW 25mm cast gutter form

Description
Attachment of class B 125 according to DIN EN 124 / DIN 19593 trough shape Properties:... more
Men¸ close
Productdescription

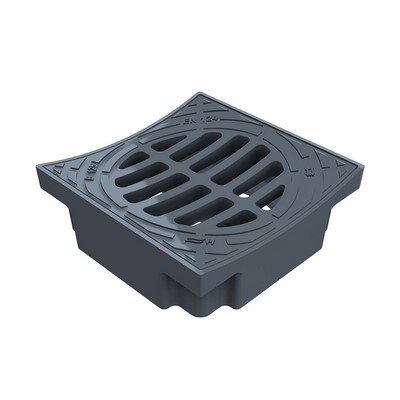

Attachment of class B 125
according to DIN EN 124 / DIN 19593 trough shape

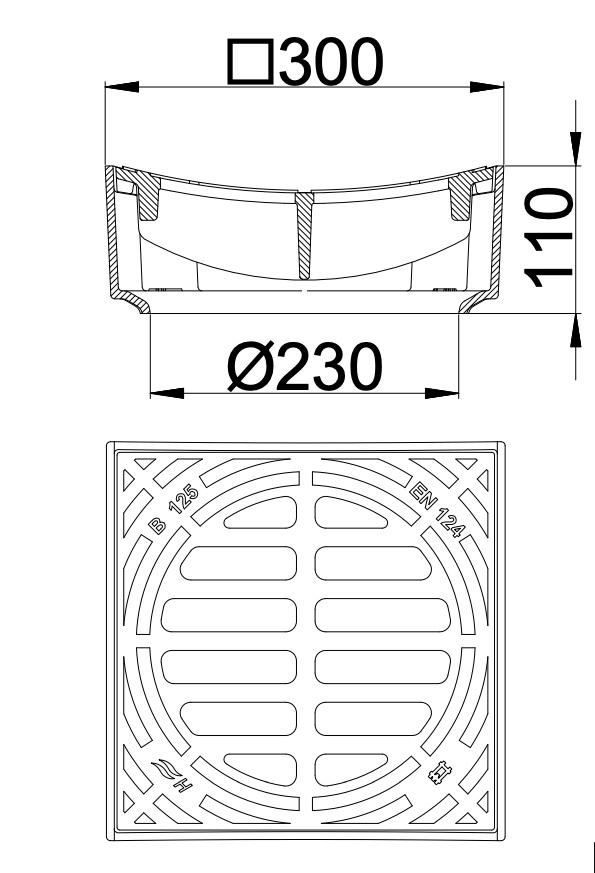

Properties:

  • Length: 300 mm
  • Width: 300 mm
  • Height: 100 mm
  • Design: Square
  • Inlet cross-section (cm¬≤): 220
    • Technical Data
    Breite (mm): 300.0
    Länge (mm): 300.0
    Gewicht (kg): 15.5
    Marke: HYDROTEC
    Hinweis: Muldenform
    Höhe (mm): 100.0
    Belastungsklasse: Klasse B 125
    Material Abdeckung/Rost: Gusseisen
    Artikelart: Hofaufsatz
    Hersteller: HATIBA
    PRODUCT LINKS

    attachment 300x300mm Kl. B125 SW 25mm cast gutter form

    • Article no.: 1020210007
    • EAN: 4016162074069
    €115.19 *
    (€115.19 / Piece)

    incl. VAT plus shipping costs

    delivery time 13-15 Working days

    Product can be picket up at

    Amount:
    Minimum order:
    1 unit
    unit
    Packaging units:
    1 unit = 1 Piece
    1 PALETTE = 48 unit = 48 Piece
    Sales unit 1 Piece
