Attachment for yard drain class A15/50 kN clear width Ø300mm trough shape SW 23mm
Attachment for yard drain class A15/50 kN clear width Ø300mm trough shape SW 23mm

Description
Yard attachment 300x380 class A 50kN Round design Properties: Frame made of cast iron 1... more
Men¸ close
Productdescription

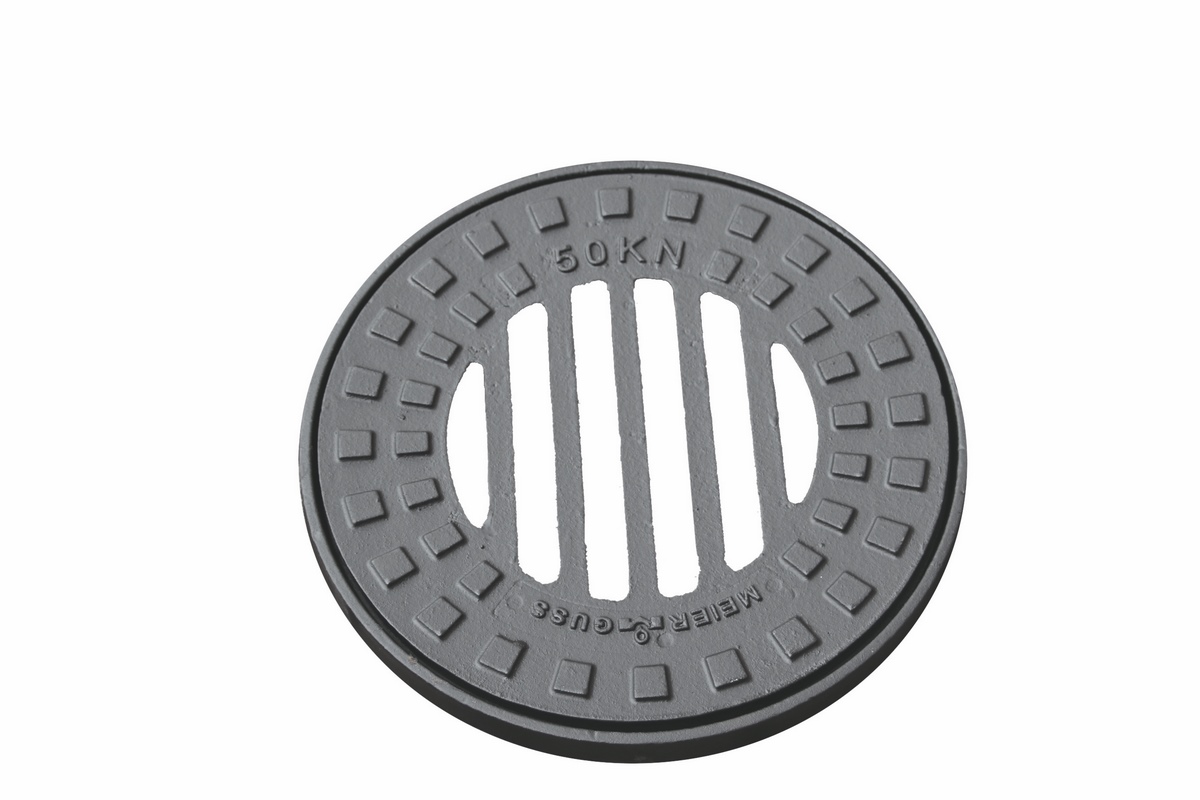

Yard attachment 300x380 class A 50kN
 Round design

Properties:
  • Frame made of cast iron 1 DIN 19591 (old)
  • Grate made of cast iron 2 or 3 DIN 19592 (old)
  • Trough shape, class A 15

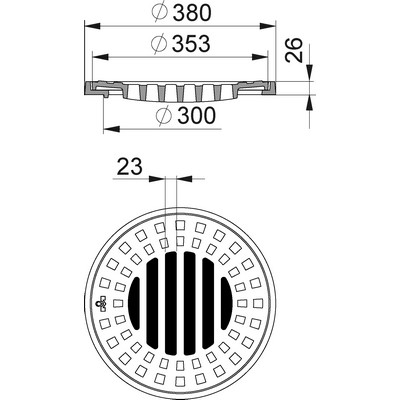

  • Slot width 23 mm, inlet cross-section 208 cm¬≤
  • Outer diameter 380 mm
  • Grate diameter 353 mm
  • Frame without bucket support
  • for shaft with bucket support lugs
Technical Data
Breite (mm): 380
Länge (mm): 300
Gewicht (kg): 10
Hinweis: DIN 19590 alt, rund, Muldenform Schlitzweite 23 mm, Einlaufquerschnitt 208 cm2
Höhe (mm): 26
Belastungsklasse: 50 KN
Material Abdeckung/Rost: Gusseisen
Artikelart: Hof-Aufsatz
Hersteller: Meier Guss
PRODUCT LINKS

Attachment for yard drain class A15/50 kN clear width Ø300mm trough shape SW 23mm

  • Article no.: 1020210053
  • EAN: 4044374004550
€69.97 *
(€69.97 / Piece)

incl. VAT plus shipping costs

delivery time 4-6 Working days

Product can be picket up at

Amount:
Minimum order:
1 unit
unit
Packaging units:
1 unit = 1 Piece
1 PALETTE = 100 unit = 100 Piece
Sales unit 1 Piece
