Water barrier B 15 round Molded round water barrier plate Ø 120 mm ensures the greatest... more

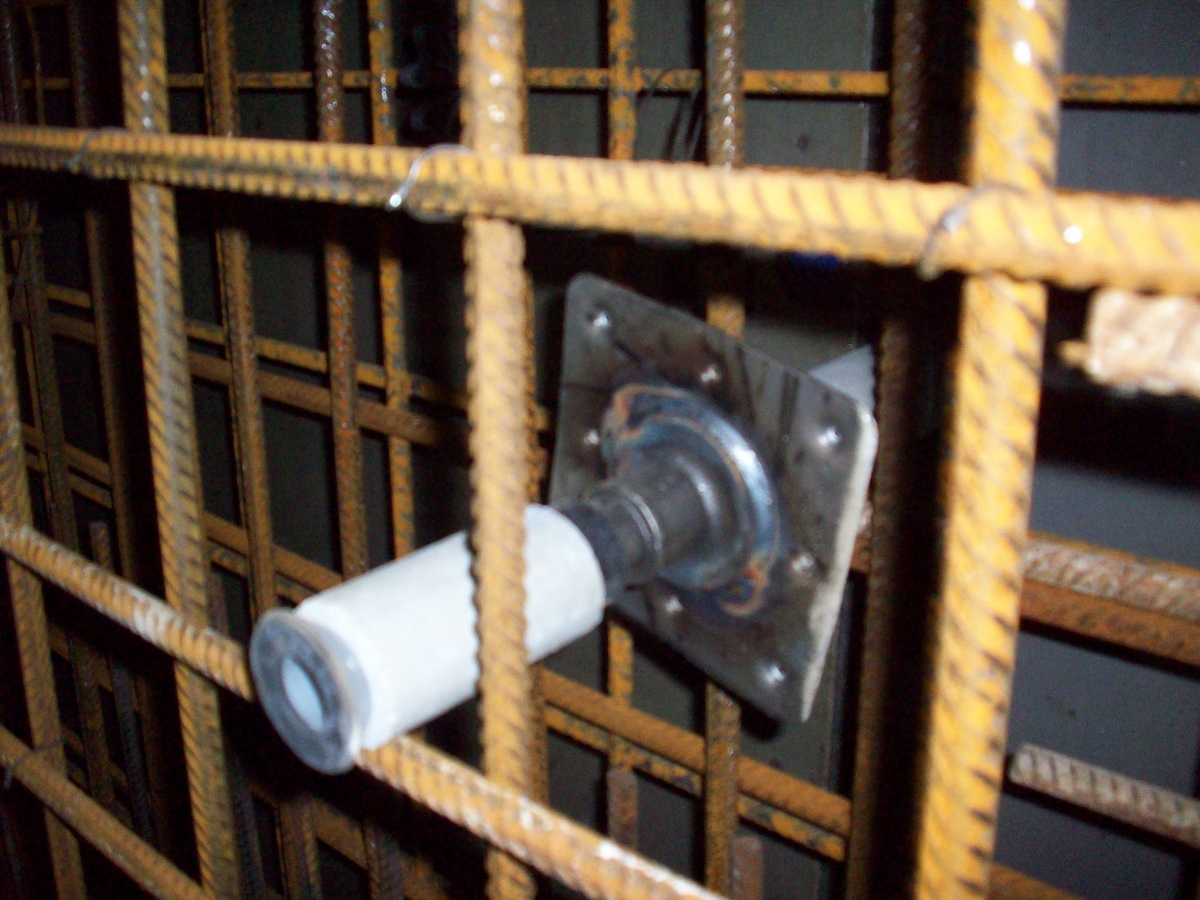

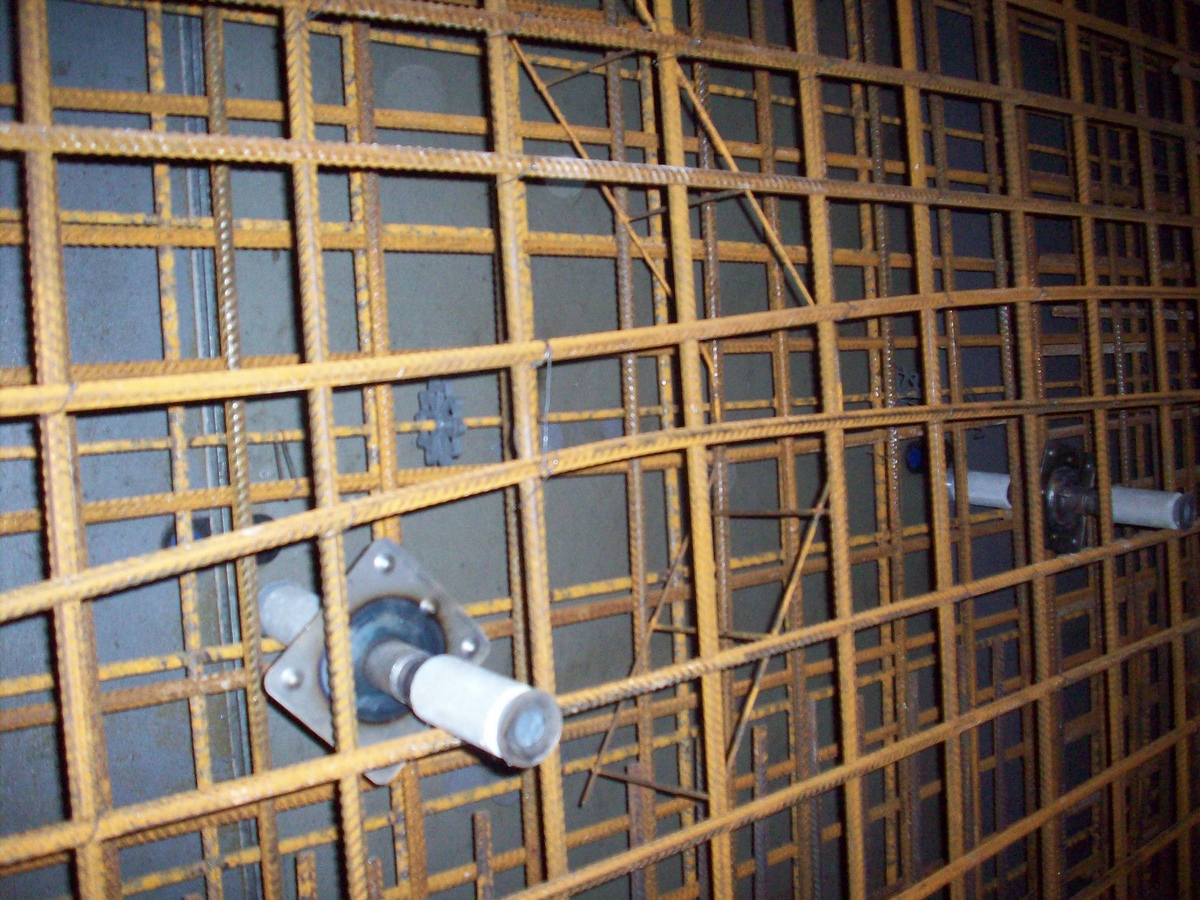

Water barrier B 15 round

Molded round water barrier plate Ø 120 mm ensures the greatest possible security against water flow
Cone holes can be mortared or glued with concrete plugs after the cone has been removed
The concrete cover c when used with cone EX is e.g. B. 35 or 50 mm
The concrete cover c when used with MKK® B 15 is 50 mm
Compatible with Uni 15
The water barrier B 15 has attachment points on both sides onto which the pipe cuts Dist K- 26 rough can be attached to form a tight seal
This ensures that concrete slurry does not flow in and the anchor rod cannot be "encased in concrete"
Reducing coupling for Dist K-22 and Dist FB-22
When using the reducing coupling, the dimension changes from 70 mm to 125 mm
