preview: Can wall panel SB grey smooth LF 1 - 3 80/55/100cm 12cm wall thickness preview: Can wall panel SB grey smooth LF 1 - 3 80/55/100cm 12cm wall thickness

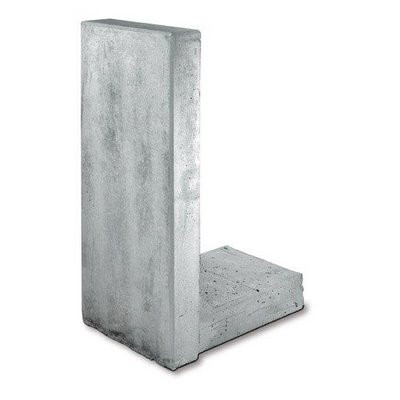

Can wall panel SB grey smooth LF 1 - 3 80/55/100cm 12cm wall thickness
Can wall panel SB grey smooth LF 1 - 3 80/55/100cm 12cm wall thickness

Description
Complies with EN 15258 Reinforced concrete according to EN 1992-1-1 (Eurocode 2) Concrete... more
Men¸ close
Productdescription
  • Complies with EN 15258
  • Reinforced concrete according to EN 1992-1-1 (Eurocode 2)
  • Concrete strength class C35/45
  • Exposure class XD1/XF2 (air side) and XC2/XF2 (ground side)
  • Other exposure classes on request
  • 12 cm wall thickness
  • Available in heights from 55¬†- 305 cm
  • Available in 2 lengths: 50 or 100 cm
  • Fitting pieces
  • Load case 1¬†- 5b available
  • Exposed concrete surface
  • 1m element with dummy joint
    • Technical Data
    Stärke (mm): 120
    Farbe: grau
    Breite (mm): 1000
    Breite (cm): 100
    Gewicht (kg): 347
    Höhe (cm): 80
    Länge (cm): 55
    Marke: KANN
    Hinweis: Betonfertigteil für Stützwände nach EN 15258, Stahlbeton nach EN 1992-1-1 (Eurocode 2), Betonfestigkeitsklasse C35/45, Expositionsklasse XD1/XF2 (Luftseitig) und XC2/XF2 (Erdseitig), Lastfälle 1-5b
    Höhe (mm): 800
    Grundmaterial: Beton
    Materialspezifizierung: Stahlbeton
    Artikelart: Mauerscheibe
    Hersteller: KANN
    PRODUCT LINKS

    Can wall panel SB grey smooth LF 1 - 3 80/55/100cm 12cm wall thickness

    • Article no.: 1060610275
    • EAN: 4024991145966
    Price upon request

    incl. VAT plus shipping costs

    delivery time 16-18 Working days

    Product can be picket up at

    Amount:
    Minimum order:
    1 unit
    unit
    Packaging units:
    1 unit = 1 Piece
    1 PALETTE = 4 unit = 4 Piece
    Sales unit 1 Piece
