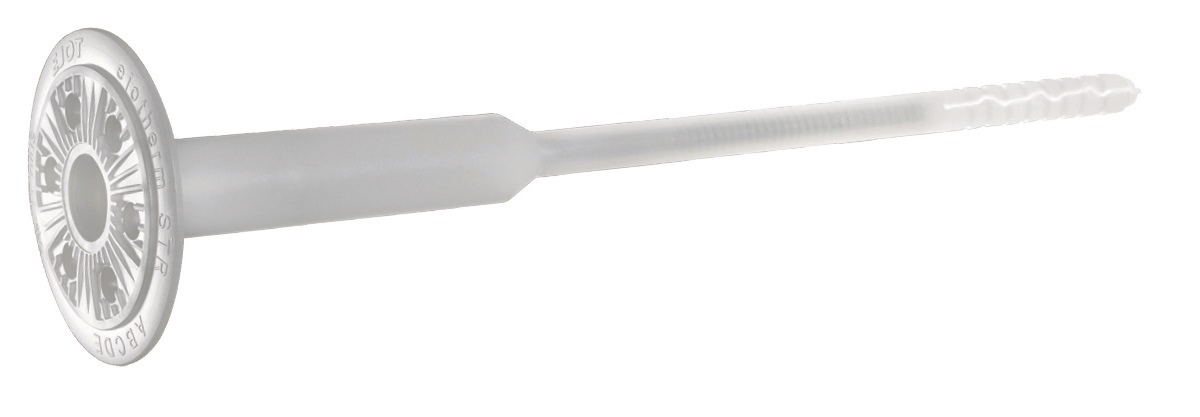

Knauf screw anchor STR U 2G
Screw anchor for fastening WARM WALL systems

Screw anchor for countersunk or flush mounting for Knauf WARM WALL systems. The dowel sleeve is made of high-quality plastic with a predetermined crumple zone.
Accessories include washers made of EPS (white/grey) and mineral wool as well as plugs made of EPS and matching dowel plates.

Properties:

• Economical dowel lengths due to minimal anchoring depth of 25 mm (aerated concrete 65 mm)
• Safety due to the highest characteristic loads
• 100% setting control, non-anchored dowels are immediately detected
• For flush and countersunk installation
• Use for EPS, mineral wool, wood fiber and high-performance insulation materials
• For extra thick insulation material thicknesses up to 400 mm
• Permanent contact pressure
• Pre-assembled screw for quick installation

Area of application:

• Is suitable for the statically relevant fastening of insulation materials from the Knauf WARM WALL systems

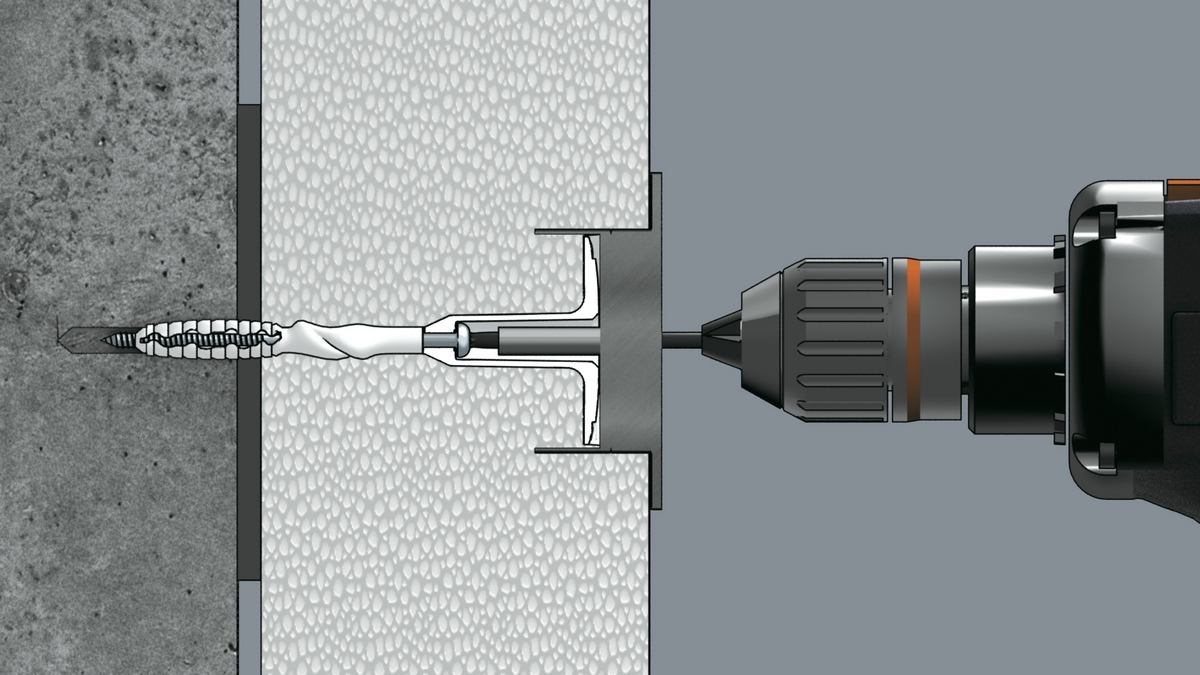

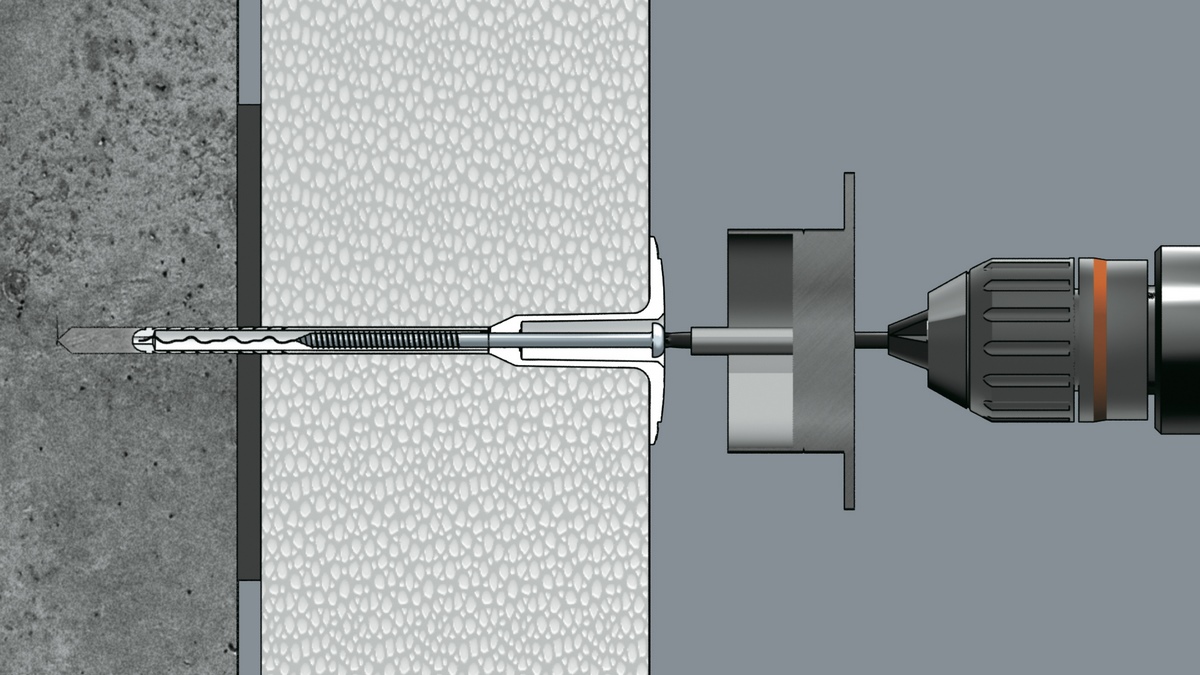

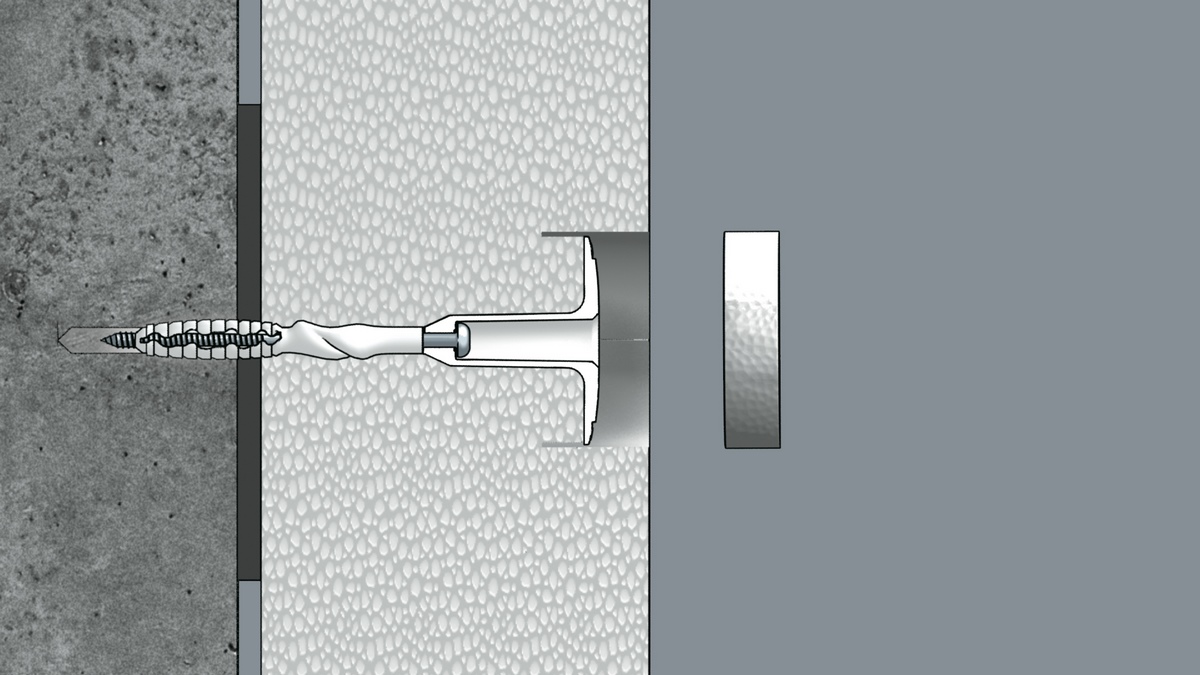

• Countersunk installation with washers or flush mounting with plugs is possible
• For mineral wool insulation materials, the dowel can be combined with dowel plates of 90 mm or 140 mm diameter for flush mounting and with VT 2G for countersunk mounting
• Can be used on all common anchoring surfaces such as concrete, solid and perforated bricks, porous lightweight concrete and aerated concrete (usage categories A, B, C, D and E)
• Can also be used for weather shells (three-layer panels)

Länge (mm):	135
Inhalt (st):	100
Marke:	Knauf
Modell:	STR U 2G 135
Geeignet für Dämmstoffe:	true
Ankersystem:	mechanisch
Bohr-Ø (mm):	8
Dübel mit Dämmteller:	true
Geeignet für Beton:	true
Geeignet für Porenbeton:	true
Geeignet für Lochsteine:	true
Geeignet für Vollsteine:	true
Montagetechnik:	Schrauben & Spreizen
Verankerungstiefe min. (mm):	25
Herstellerbezeichnung:	Schraubdübel
Artikelart:	Schraubdübel
Hersteller:	Knauf Gips
