Description
Knauf screw anchor STR U 2G Screw anchor for fastening WARM WALL systems Screw anchor for... more
Men¸ close
Productdescription

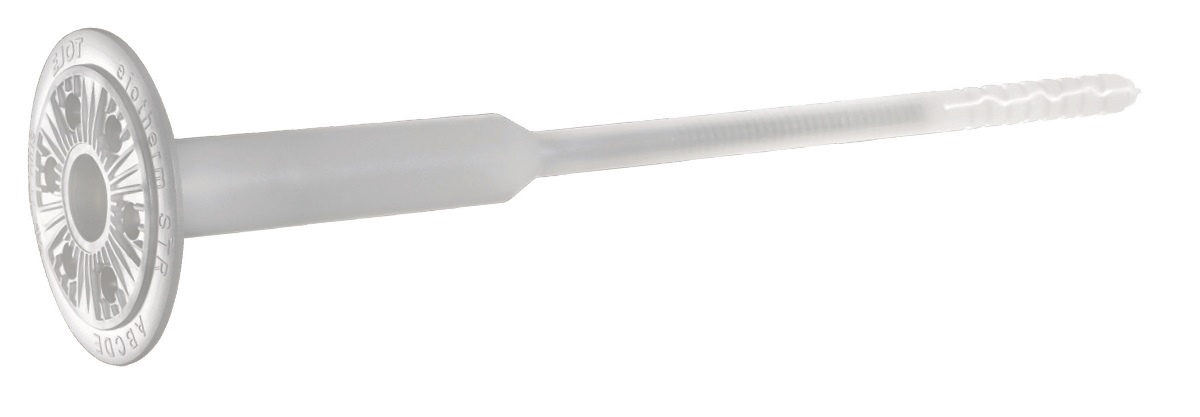

Knauf screw anchor STR U 2G
Screw anchor for fastening WARM WALL systems

Screw anchor for countersunk or flush mounting for Knauf WARM WALL systems. The dowel sleeve is made of high-quality plastic with a predetermined crumple zone.
Accessories include washers made of EPS (white/grey) and mineral wool as well as plugs made of EPS and matching dowel plates.

Properties:
  • Economical dowel lengths due to minimal anchoring depth of 25 mm (aerated concrete 65 mm)
  • Safety due to the highest characteristic loads
  • 100% setting control, non-anchored dowels are immediately detected
  • For flush and countersunk installation
  • Use for EPS, mineral wool, wood fiber and high-performance insulation materials
  • For extra thick insulation material thicknesses up to 400 mm
  • Permanent contact pressure
  • Pre-assembled screw for quick installation
Area of application:
  • Is suitable for the statically relevant fastening of insulation materials from the Knauf WARM WALL systems

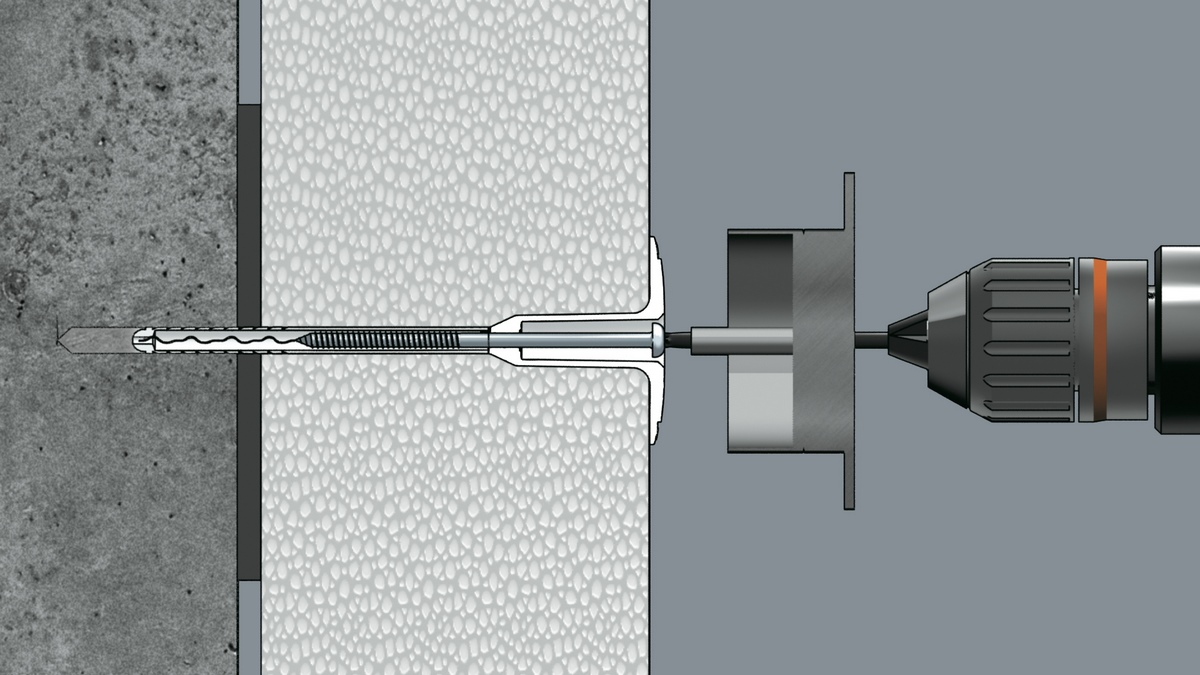

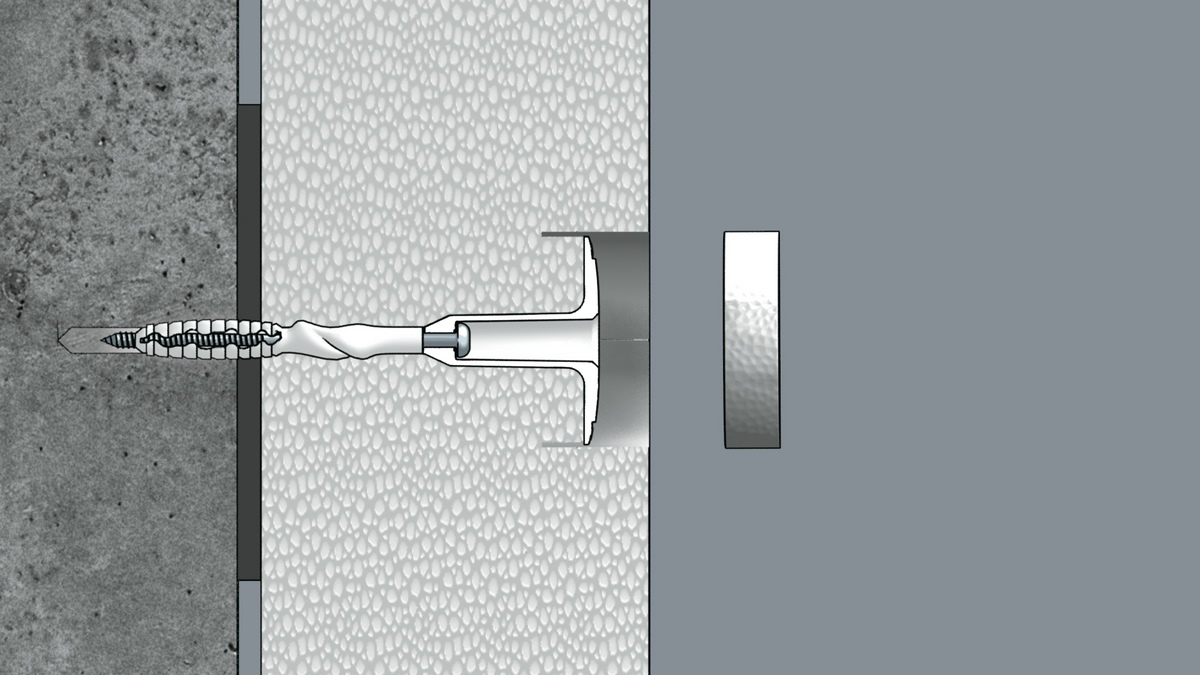

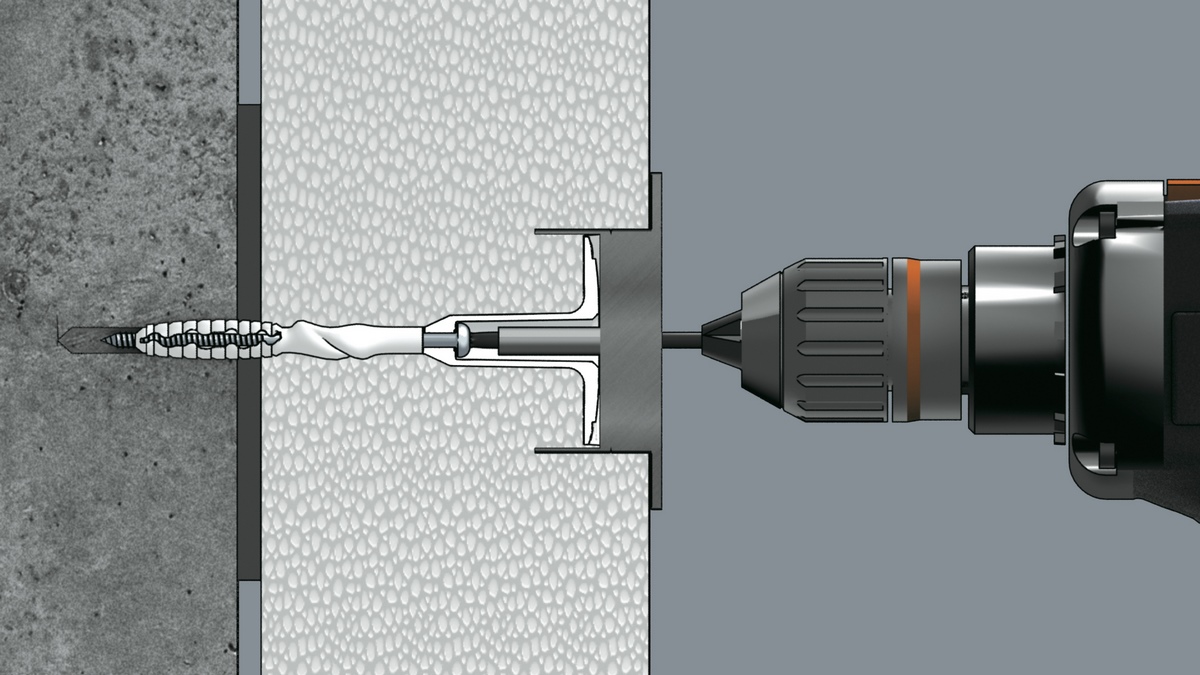

  • Countersunk installation with washers or flush mounting with plugs is possible
  • For mineral wool insulation materials, the dowel can be combined with dowel plates of 90 mm or 140 mm diameter for flush mounting and with VT 2G for countersunk mounting
  • Can be used on all common anchoring surfaces such as concrete, solid and perforated bricks, porous lightweight concrete and aerated concrete (usage categories A, B, C, D and E)
  • Can also be used for weather shells (three-layer panels)
Technical Data
Länge (mm): 175
Inhalt (st): 100
Marke: Knauf
Modell: STR U 2G 175
Geeignet für Dämmstoffe: true
Ankersystem: mechanisch
Bohr-Ø (mm): 8
Dübel mit Dämmteller: true
Geeignet für Beton: true
Geeignet für Porenbeton: true
Geeignet für Lochsteine: true
Geeignet für Vollsteine: true
Montagetechnik: Schrauben & Spreizen
Verankerungstiefe min. (mm): 25
Herstellerbezeichnung: Schraubdübel
Artikelart: Schraubdübel
Hersteller: Knauf Gips
PRODUCT LINKS

Knauf screw anchor STR U 2G 175mm 100 pieces package

  • Article no.: 2020260621
  • EAN: 4003950091476
€183.26 *
(€183.26 / package)

incl. VAT plus shipping costs

delivery time 4-6 Working days

Product can be picket up at

Amount:
Minimum order:
1 unit
unit
Packaging units:
1 Piece = 0.01 package
1 unit = 100 Piece = 1 package
1 PALETTE = 30 unit = 3000 Piece = 30 package
Sales unit 1 package
