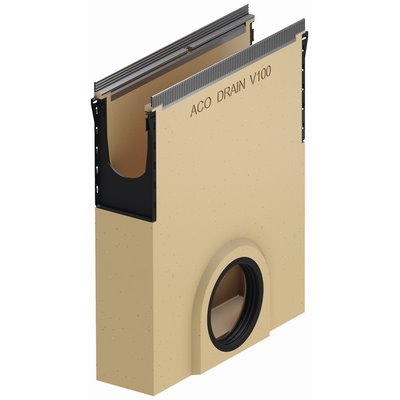

Channel system in accordance with DIN EN 1433/DIN 19580
Nominal width 100 mm
Galvanised steel edge protection design
With lip labyrinth seal (LLD) made of NBR for horizontal, watertight pipe connection
With connection adapter for watertight channel connection
With end wall (1 piece) for one-sided, watertight sealing of the inlet box
With PP plastic sludge bucket
Short version (KF) for installation height 0 - 10 or long version (LF) for installation height 0 - 20

Manufacturer "ACO GmbH"

ACO GmbH

Am Ahlmannkai
24782
Büdelsdorf D
04331/354-700
info@aco.com

Article type:	Inlet box
Brand:	ACO
Drainage channel material:	Polymer concrete
Hint:	with galvanised steel edge protection, pipe diameter DN 160
Installation height from (mm):	610
Length (mm):	500
Load class:	Class E 600
Manufacturer:	ACO GmbH
Model:	V 100 S
Nominal diameter DN:	DN 100
Series:	ACO DRAIN® Multiline Seal in
Use of drainage channels:	Road drainage
Weight (kg):	34.7
Width (mm):	135
