Product advantages:

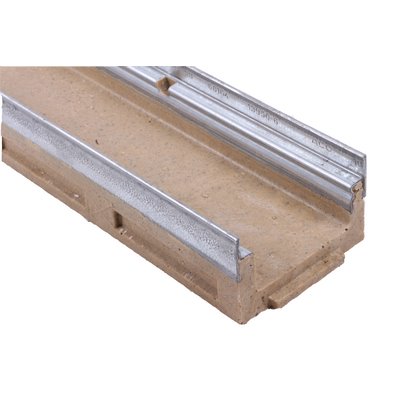

With ACO DRAIN® safety fold (SF) With screwless locking Drainlock channel body made of polymer concrete
Specific product information:
Channel system in accordance with DIN 1433/DIN 19580 Nominal width 100 mm Load classes A 15 - D 400 Optionally available in galvanised steel, stainless steel or cast iron EN-GJS edge protection versions Optionally available with or without vertical, liquid-tight pipe connection Version with vertical, liquid-tight pipe connection with lip labyrinth seal (LLD) made of NBR
Dimensions:
Length: 1000 mm Width: 135 mm Height start/end: 80 mm
Am Ahlmannkai
24782
Büdelsdorf D
04331/354-700
info@aco.com
| Article type: | Drainage channel |
|---|---|
| Artikelbeschreibung mit KI: | Die ACO DRIAN® Multiline Flachrinne V 100 (Modell V100) ist ein polymerbetonierter Rinnenkörper für die Straßenentwässerung. Sie wird ohne Abdeckung geliefert, hat die Belastungsklasse E?600, Nennweite DN?100 und misst 1000?mm?×?135?mm?×?80?mm. |
| Brand: | ACO |
| Drainage channel material: | Polymer concrete |
| Hint: | with galvanised steel edge protection |
| Installation height from (mm): | 80 |
| Installation height up to (mm): | 80 |
| Intrinsic gradient: | No |
| Length (mm): | 1000 |
| Load class: | Class E 600 |
| Manufacturer: | ACO GmbH |
| Model: | V 100 |
| Nominal diameter DN: | DN 100 |
| Series: | ACO DRIAN® Multiline flat channel |
| Use of drainage channels: | Road drainage |
| Weight (kg): | 11.9 |
| Width (mm): | 135 |
