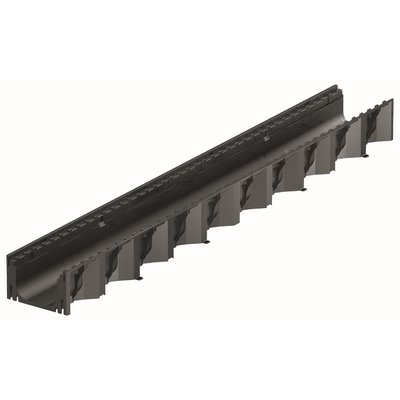

ACO Self Hexaline 2.0 without grate
made of plastic

The ACO Hexaline 2.0 channel system has been specially developed for the safe drainage and visual accentuation of patios, driveways and other sealed surfaces. The recyclable plastic and the innovative production process make the channel body light, robust and unbreakable. The honeycomb structure in the side wall gives the channel body a high level of stability. Lateral embedding in concrete is therefore only necessary if the channel is driven over. The surface covering can be applied directly.

System advantages:

many design options
favourable alternative from the market leader
flexible system Simple installation
Length can be individually adapted to local conditions
Corner element for 90°, 180° and 270° connections
Illustration for installation directly on the product

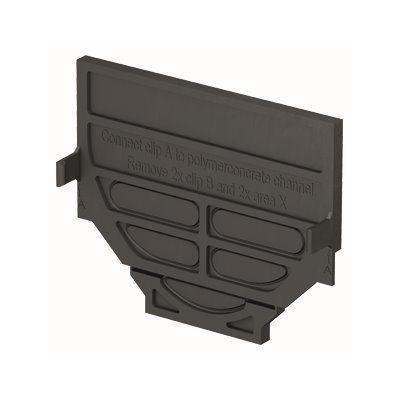

pre-punched end wall, can also be used with shortened channel
Can be driven over by cars
high stability even on sand (for walk-on applications)

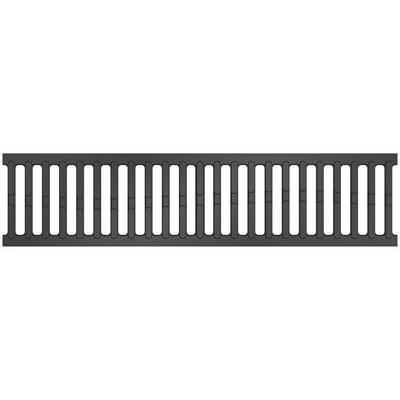

complies with EN 1433 Cover gratings optionally made of plastic or galvanised steel

Manufacturer "ACO GmbH"

ACO GmbH

Am Ahlmannkai
24782
Büdelsdorf D
04331/354-700
info@aco.com

More products from ACO GmbH

Article type:	Foot scraper insert
Brand:	ACO
Drainage channel material:	Plastic
Installation height from (mm):	80
Installation height up to (mm):	80
Length (mm):	1000
Load class:	Accessible by car
Manufacturer:	ACO GmbH
Series:	ACO Self ® Hexaline
Use of drainage channels:	House & yard drainage
Width (mm):	129
