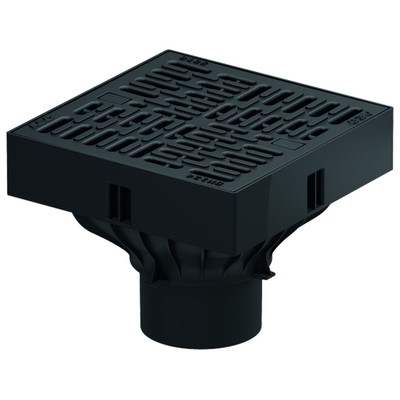

ACO Self® XtraPoint point drain
- The plastic ACO Self® Xtrapoint point drain is trafficable (B 125), has a sludge bucket with handle (1.1 litre capacity), the modified paving edge and rotatable grates

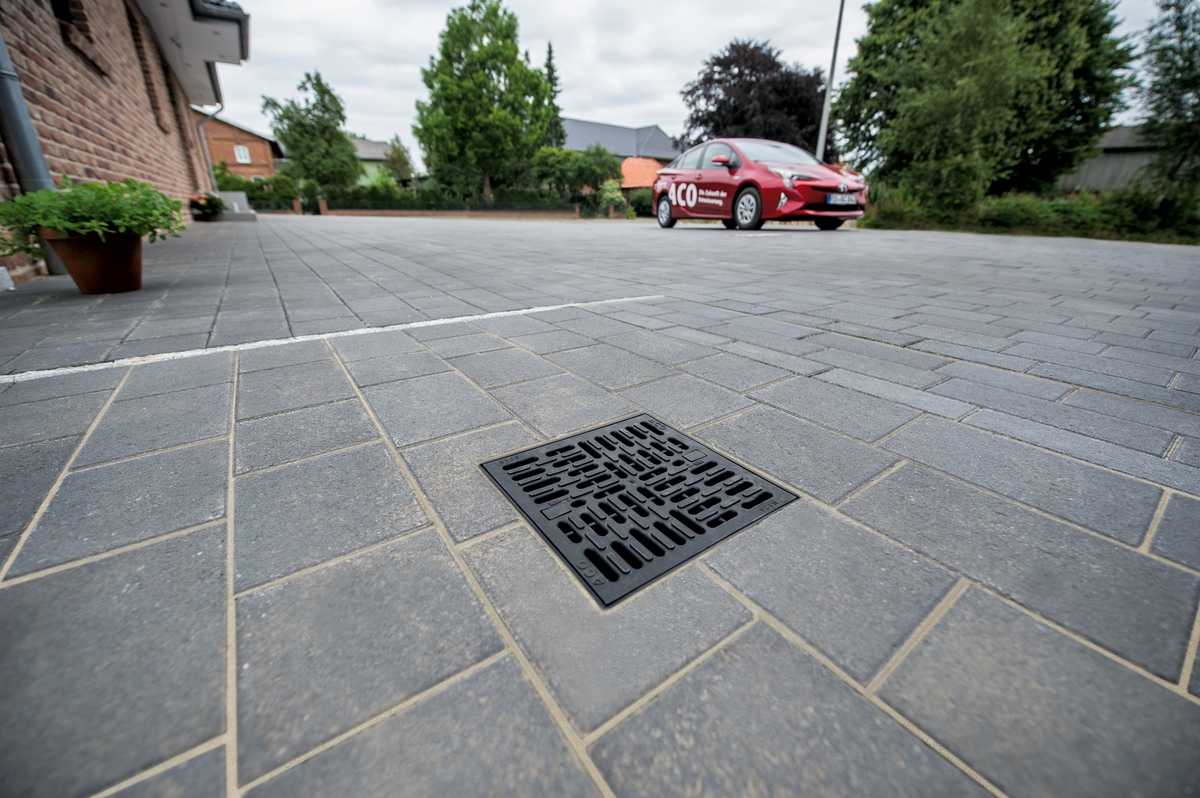

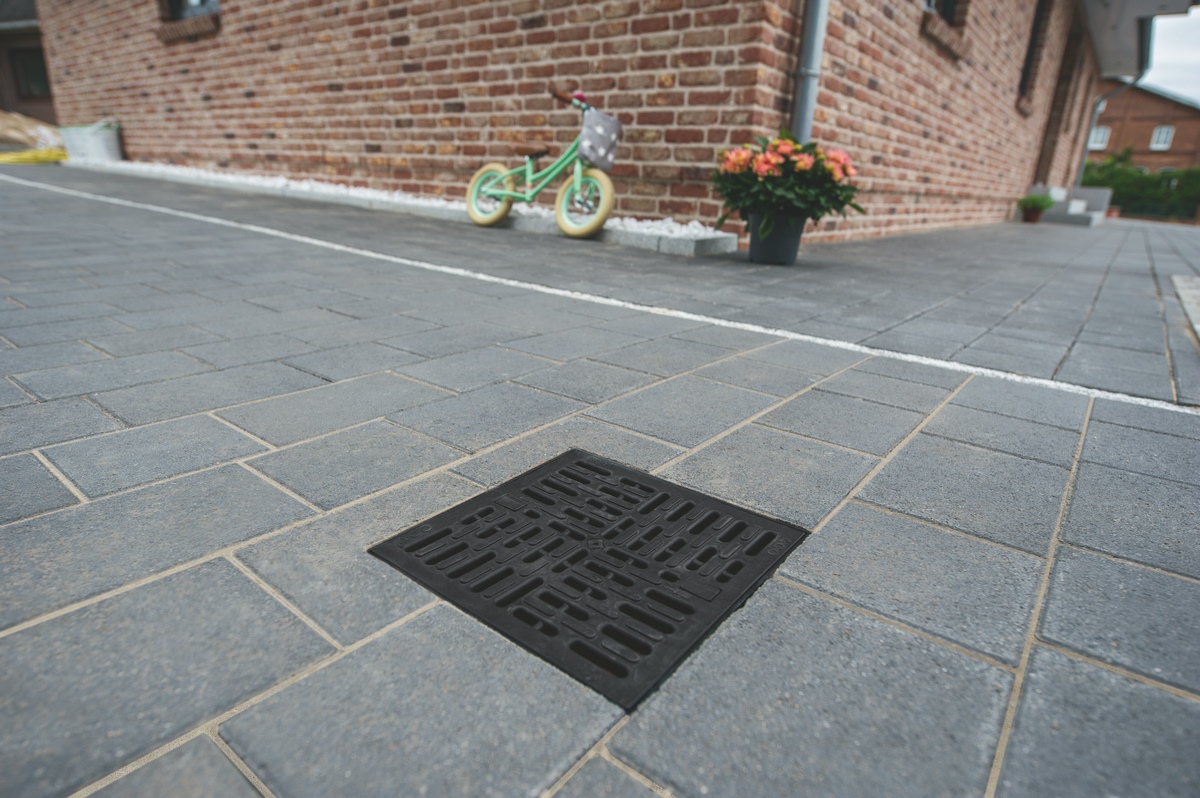

- The drivable, frost- and de-icing salt-resistant drains for wastewater and rainwater provide reliable point drainage of surfaces or under water taps in gardens and courtyards for rapid collection and drainage of surface water
- With the development of new base bodies and gratings, ACO has not only improved the performance of the point drains, it has also opened up new design options
- The DN 100 outlet is arranged vertically
- The newly designed paving edge enables precise paving work to be carried out
- With the 90° rotatable gratings, the cover can be individually adapted to the joint pattern
Manufacturer "ACO GmbH"
ACO GmbH
Am Ahlmannkai
24782
Büdelsdorf D
04331/354-700
info@aco.com
Am Ahlmannkai
24782
Büdelsdorf D
04331/354-700
info@aco.com
| Article type: | Point process |
|---|---|
| Brand: | ACO |
| Cover/grate material: | Plastic (polypropylene) |
| Height (mm): | 205 |
| Hint: | Permanently colourfast, incl. mud bucket and grate hooks |
| Length (mm): | 250 |
| Load class: | Class B 125 |
| Manufacturer: | ACO GmbH |
| Nominal diameter DN: | DN 110 |
| Series: | ACO XtraPoint |
| Use of yard drainage & point drains: | Yard drainage |
| Width (mm): | 250 |
| Yard drainage material & point drains: | Plastic (polypropylene) |
0 of 0 reviews
Average rating of 0 out of 5 stars
Login
No reviews found. Share your insights with others.
ACO Self® XtraPoint yard drain with plastic grate class B 125
Product number:
1020241559
EAN:
4002626756633
€332.01
Content:
1
STÜCK
Delivery time of 4 business days once payment has been received
