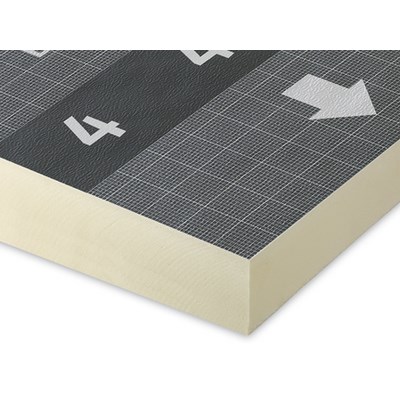

BauderPIR FA standard gradient insulation boards

Rigid polyurethane foam thermal insulation with a specified gradient of 2% and aluminium lamination on both sides
BauderPIR FA Gradient 2.0% is used as thermal insulation with a gradient and particularly low thermal conductivity on utilised and unutilised flat roofs
Standard sloped insulation boards with aluminium facing on both sides, without rebate
Can be underlaid with BauderPIR FA or BauderPIR FA TE base boards

Manufacturer "Bauder Paul GmbH & Co. Kg"

Bauder Paul GmbH & Co. Kg

Korntaler Landstraße 63
70499
Stuttgart D
0711/8807-0
stuttgart@bauder.de

Area of application Insulation materials:	Roof
Area of application Insulation materials according to DIN 4108-10:	DAA dh, DEO dh
Article type:	Standard gradient insulation boards
Brand:	Bauder
Coating Insulation materials:	Yes
Compressive stress (kPA):	120
Edge formation Insulation materials:	Stump
Fire protection class:	E
Insulation material:	Polyisocyanurate (PIR)
Length (mm):	1200
Manufacturer:	BAUDER Paul
Nominal value of thermal conductivity ?D (W/mK):	.022
Rated value of thermal conductivity ? (W/mK):	.023
Series:	BauderPIR FA
Surface coating material:	Aluminium on both sides
Thermal conductivity level:	WLS 024
Thickness (mm):	80
Thickness in mm:	55 - 80
Use of insulating materials:	Flat roof insulation
Width (mm):	1200
