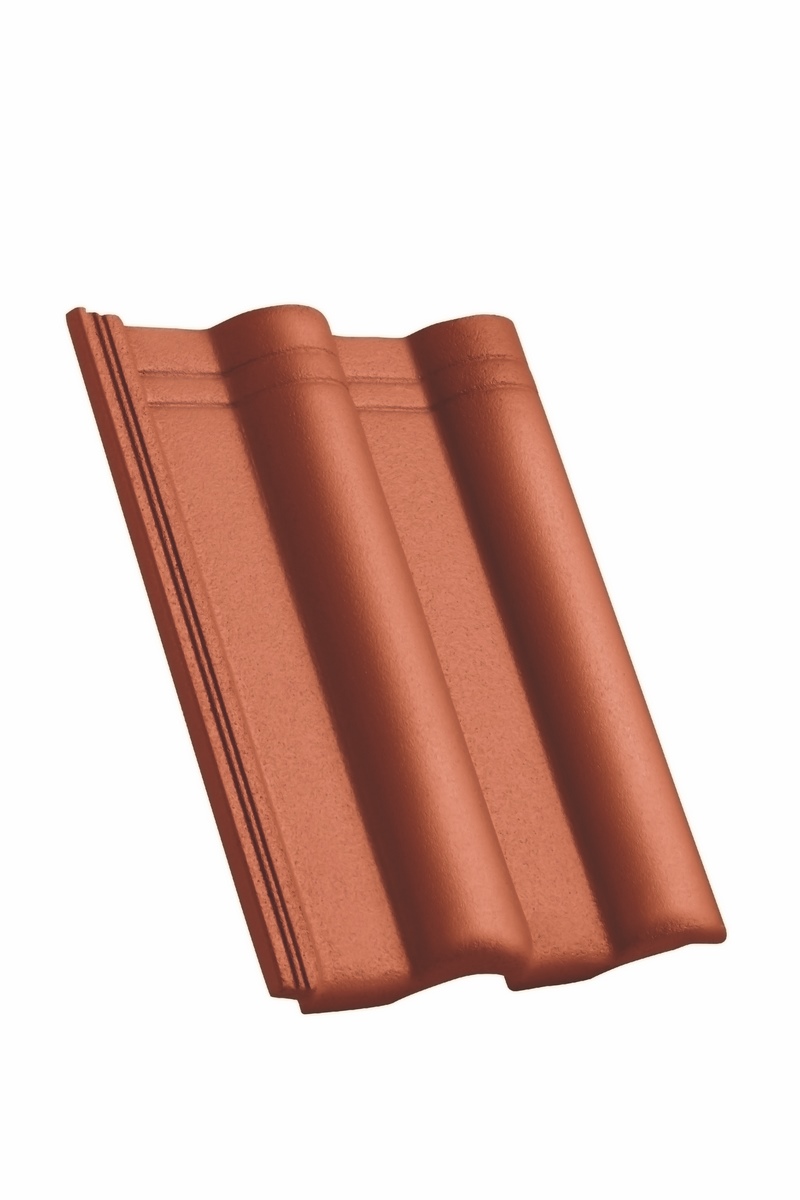

CRE Heidelberg flat stone
planar classic red

Traditional, timeless shape for new builds and renovations
Double water traps offer additional protection against rain ingress
Rounded base edge for better water drainage and to prevent soiling of the edges
Sturdy support bars on the hanging lug to prevent waterlogging on the roof batten
Pronounced base ribbing reduces the penetration of drifting snow or driving rain
High-lying side rebates with joints open to the side ensure better water drainage, relieve pressure on the side rebates and provide better protection against premature moss growth

Manufacturer "Creaton GmbH"

Creaton GmbH

Dillinger Straße 60
86637
Wertingen D
08272 / 86-0
bestellung@creaton.com

Article type:	Surface stone
Brand:	CREATON
Colour:	classic red
Deck width (mm):	300
Demand per m² from (st):	9.7
Demand per m² to (st):	10.7
Form of roof & façade cladding:	Roof tile
Length (mm):	420
Manufacturer:	Creaton
Roof & façade cladding material:	Concrete
Roof & façade cladding surface:	planar
Series:	Heidelberg
Standard roof pitch (°):	22
Type of roof & façade cladding form:	corrugated
Variable deck length of (mm):	310
Variable deck length up to (mm):	345
Weight (kg):	4.5
Width (mm):	334
