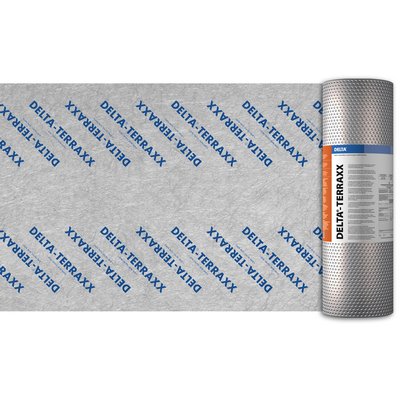

DELTA®-TERRAXX

Protection and drainage system for pressurised vertical and horizontal substrates according to DIN 18195 and DIN 4095.
With WTH effect.

The dimpled sheet acts as a full-surface drainage layer, the welded-on pressure-resistant and filter-stable geotextile reliably prevents the dimpled structure from silting up.
DELTA-TERRAXX is a universal protection in accordance with DIN 18195 as a second watertight layer in front of the basement wall waterproofing for all load cases involving backwater, stratum water and seepage water.
The membrane protects perimeter insulation boards from moisture, secures the insulation value and has the special warm-dry-holder effect for the cellar.
It is free from recycled material, bears the CE 0799-CPD-13 mark and conforms to the requirements of EN 13252.
DELTA-TERRAXX has a high compressive strength of 400 kN per square metre and can be used at installation depths of up to 10 m and even in extreme water conditions.
The membrane is absolutely rot-proof and acts as a reliable methane gas and radon drainage system.

Horizontal drainage

The heavy-duty DELTA-TERRAXX protection and drainage system is optimised for various horizontal drainage applications. The composite structure consisting of a dimpled sheet with a welded-on geotextile forms a highly effective drainage layer. The upward-facing geotextile acts as a filter layer for the cavities formed by the dimpled sheet underneath.

Manufacturer "Dörken GmbH & Co. KG"

Dörken GmbH & Co. KG

Wetterstraße 58
58313
Herdecke D
02330/63-0
bvf@doerken.de

More products from Dörken GmbH & Co. KG

Article type:	Dimpled track
Brand:	Dörken
Delivery form Protection, drainage mats & panels:	Role
Length (m):	12.5
Manufacturer:	Dörken
Material protection and drainage mats & panels:	Plastic
Material type Protection, drainage mats & panels:	PE (polyethylene)
Model:	Terrax
Series:	DELTA
Thickness (mm):	9
Thickness in mm:	9
Width (m):	2.4
