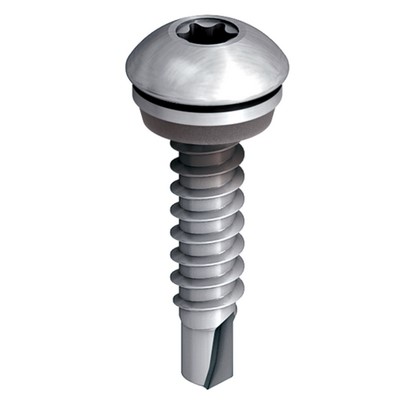

SUPER-SAPHIR JT3-FR-2H-Plus-5,5

Application: Longitudinal butt joint screw connection of steel profile sheets Longitudinal butt joint screw connection of aluminium profile sheets Screw connection of steel profile sheets to cassette walls Screw connection of aluminium profile sheets to cassette walls
Properties:
A2 stainless steel with hardened drill point Stainless steel sealing washer Pre-assembled captive sealing washer With undercut under the screw head for the longitudinal butt joint screw connection

Manufacturer "EJOT SE & Co. KG"

EJOT SE & Co. KG

In der Stockwiese 35
57334
Bad Laasphe D
02752/908-0
bau@ejot.de

More products from EJOT SE & Co. KG

Article type:	Drill screw
Brand:	EJOT
Diameter (mm):	5.5
Head drive:	TX
Head shape:	Flat round head
Length (mm):	25
Manufacturer:	EJOT
Manufacturer designation:	Bohrschraube JT3-FR-2H-Plus-5,5x25-E11
Material screws:	Stainless steel A2
Properties:	Stainless steel, with hardened steel drill point, stainless steel sealing disc Ø 11 mm, captive pre-assembled sealing disc, with undercut under the screw head for effective longitudinal butt joint screw fastening, clamping thickness 0 - 7 mm
Screw with drill point:	Yes
Screw with sealing disc:	Yes
Standard:	ETA-10/0200
Suitable for aluminium & sheet metal:	Yes
Suitable for metal:	Yes
Tested by building authorities:	Yes
Thread division:	Solid thread
Thread pitch:	Coarse thread
Thread type:	Wood thread
suitable for:	TX25
