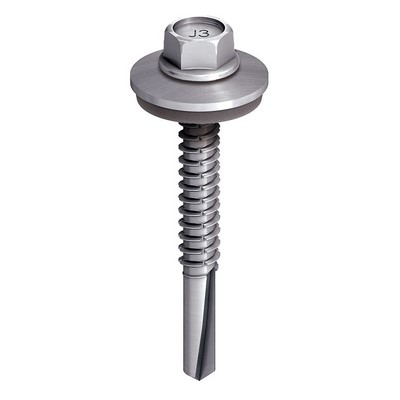

SUPER-SAPPHIRE JT3-12-5.5
Application:
Screwing of steel profile sheets to steel substructures 4 - 10 mm Screwing of aluminium profile sheets/sandwich elements to steel substructures 4 - 10 mm Screwing of aluminium profile sheets/sandwich elements to aluminium substructures 4 - 12 mm
Properties:
A2 stainless steel with hardened drill point Stainless steel sealing disc Pre-assembled captive sealing disc

Manufacturer "EJOT SE & Co. KG"

EJOT SE & Co. KG

In der Stockwiese 35
57334
Bad Laasphe D
02752/908-0
bau@ejot.de

More products from EJOT SE & Co. KG

Article type:	Drill screw
Brand:	EJOT
Diameter (mm):	5.5
Head drive:	Hexagon
Head shape:	Hexagon head
Length (mm):	40
Manufacturer:	EJOT
Manufacturer designation:	Self-drilling screw JT3-12-5.5x40-E22
Material screws:	Stainless steel A2
Properties:	Stainless steel, with hardened steel drill point, stainless steel sealing disc Ø 22 mm, captive pre-assembled sealing disc, clamping thickness 0 - 11 mm
Screw with drill point:	Yes
Screw with sealing disc:	Yes
Standard:	ETA-10/0200, ETA-13/0177
Suitable for aluminium & sheet metal:	Yes
Suitable for metal:	Yes
Tested by building authorities:	Yes
Thread division:	Partial thread
Thread pitch:	Fine thread
Thread type:	Wood thread
suitable for:	SW8
