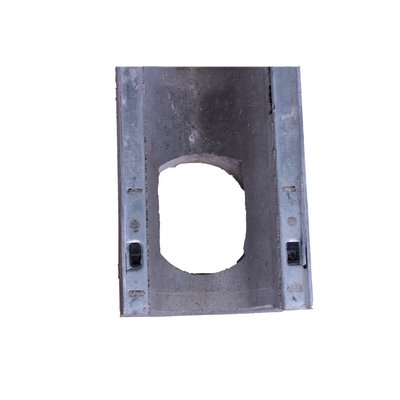

FASERFIX KS 150 type 01 L - channel base made of fibre-reinforced concrete, load class A 15 - F 900 to DIN 19580/EN 1433, with vertical opening DN/OD 160 in the base area, CE-compliant, with galvanised steel frame and screwless SIDE-LOCK quick-release fastener, locked in place 8 times, without crossbars in the channel line, with safety joint, L/W/H 1000x210x220 mm, art. no. 11035

Manufacturer "Hauraton GmbH & Co KG"

Hauraton GmbH & Co KG

Werkstr. 13 + 14
76437
Rastatt D
07222/958-0
marketing@hauraton.com

More products from Hauraton GmbH & Co KG

Article type:	Channel base
Brand:	Hauraton
Drainage channel material:	Fibre concrete
Hint:	with galvanised frame
Installation height from (mm):	220
Length (mm):	1000
Load class:	Class F 900
Manufacturer:	Hauraton
Nominal diameter DN:	DN 150
Series:	FASERFIX KS
Slope number:	01
Use of drainage channels:	Road drainage
Wall thickness (mm):	30
Weight (kg):	54
Width (mm):	210
