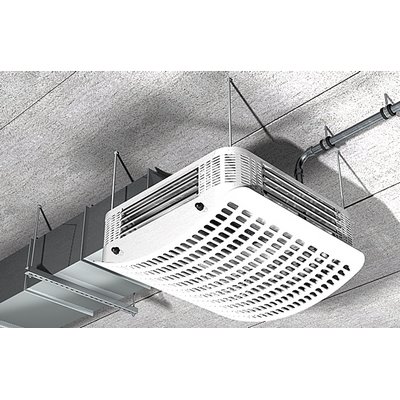

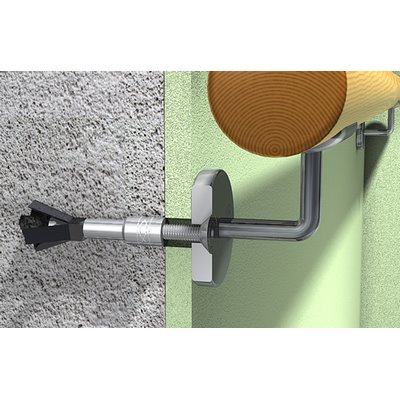

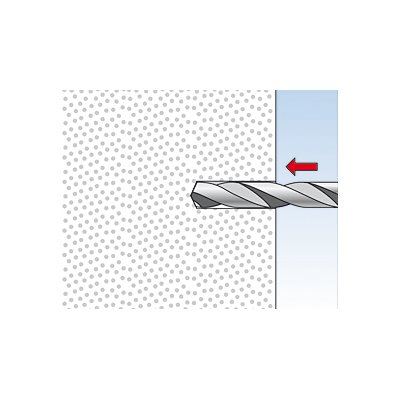

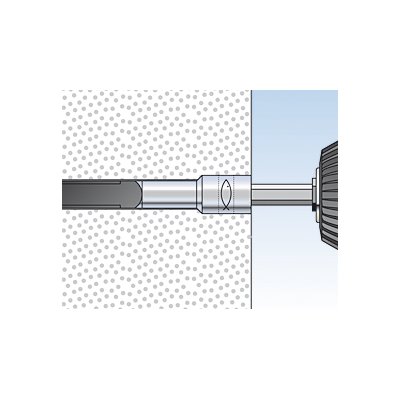

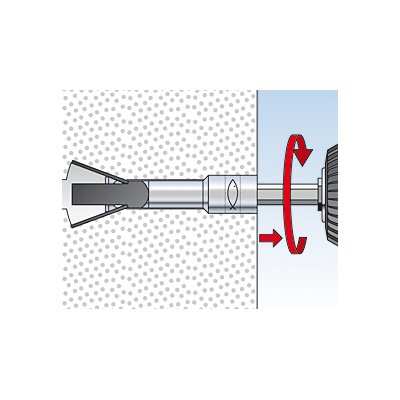

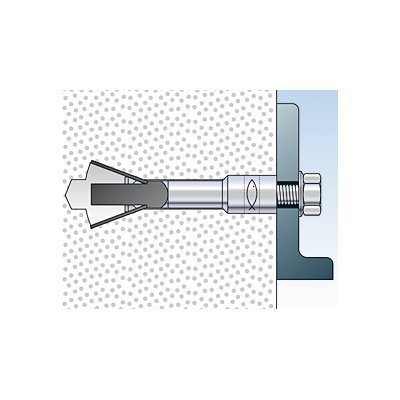

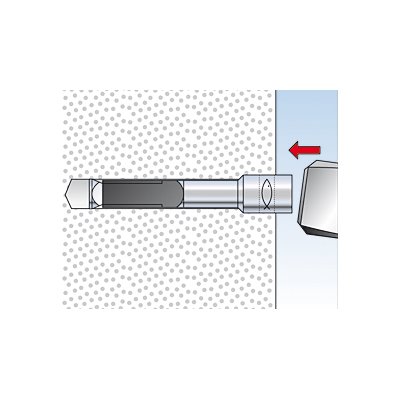

The fischer FPX-I aerated concrete anchor is made of galvanised steel. After pre-drilling, the FPX-I is simply driven in with a hammer. It is not necessary to clean the drill hole. The fischer aerated concrete anchor is tightened with a hexagon spanner using a cordless screwdriver or a ratchet. This pulls the cone into the expansion sleeve. The four wings create an undercut in the drill hole. After expansion, the hexagon spanner is automatically released. The fischer FPX-I aerated concrete anchor is ideal for fixing suspended ceilings, banisters or kitchen cabinets in aerated concrete.
- The first approved metal anchor for aerated concrete.
- High load-bearing capacity: expansion wings create an undercut. This saves fixing points.
- Simple and effortless installation without additional setting tools.
- No twisting of the anchor.
- Automatic setting control guarantees maximum safety
Klaus-Fischer-Straße 1
72178
Waldachtal D
07443/12-0
info@fischer.de
| Anchoring depth min. (mm): | 70 |
|---|---|
| Anchor system: | mechanical |
| Article type: | Aerated concrete anchor |
| Assembly technology: | Screws & spreaders |
| Authorisation for materials: | Aerated concrete of compressive strength class 2 to 7 N/mm², aerated concrete wall and ceiling panels of compressive strength 3.3 to 4.4 N/mm², planked aerated concrete masonry |
| Brand: | fischer |
| Contents (st): | 25 |
| Diameter (mm): | 14 |
| Drill-Ø (mm): | 10 |
| Drill hole depth min (mm): | 95 |
| Length (mm): | 75 |
| Manufacturer: | Fisherman |
| Manufacturer designation: | Aerated concrete anchor |
| Material dowel & anchor: | Steel |
| Model: | FPX M 8 I |
| Suitable for aerated concrete: | True |
| Test mark: | ETA-12/0456 |
| suitable for: | Thread M8 |
| Hersteller |
| Produktinformation |
0 of 0 reviews
Average rating of 0 out of 5 stars
Login
Fischer aerated concrete anchor FPX M 8 I PU=25
