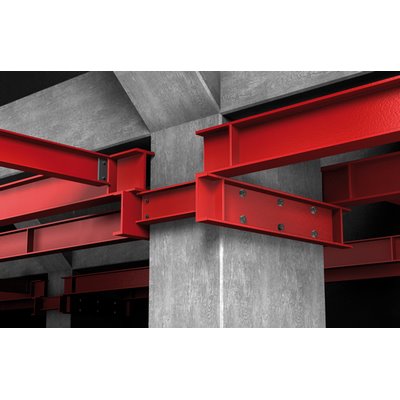

The fischer FAZ II bolt anchor is the steel anchor for the highest demands. The steel anchor is used to fix heavy loads in cracked concrete. The FAZ II can be used particularly flexibly thanks to its simple installation. The tried-and-tested expansion clip guides the loads particularly securely into the concrete and enables the highest load-bearing capacity. The galvanised steel version is used to fasten loads indoors. The steel anchor is ideal for fastening heavy steel structures, for example.
- With expansion clip for maximum load-bearing capacity: this means that fewer fixing points and smaller anchor plates are required. This saves time and costs.
- Minimised tightening slip: Simple installation reduces time and effort.
- With approval for cracked concrete and fire testing: maximum safety.
Klaus-Fischer-Straße 1
72178
Waldachtal D
07443/12-0
info@fischer.de
| Anchor system: | mechanical |
|---|---|
| Article type: | Bolt anchor |
| Assembly technology: | Screws & spreaders |
| Authorisation for materials: | cracked and non-cracked concrete C20/25 to C50/60 |
| Brand: | fischer |
| Contents (st): | 5 |
| Diameter (mm): | 20 |
| Drill-Ø (mm): | 20 |
| Drill hole depth min (mm): | 155 |
| Length (mm): | 172 |
| Manufacturer: | Fisherman |
| Manufacturer designation: | Bolt on |
| Material dowel & anchor: | Steel |
| Model: | FAZ II gvz 20/30 |
| Suitable for concrete: | True |
| Test mark: | ETA-05/0069 |
| suitable for: | SW30 |
| Hersteller |
| Produktinformation |
