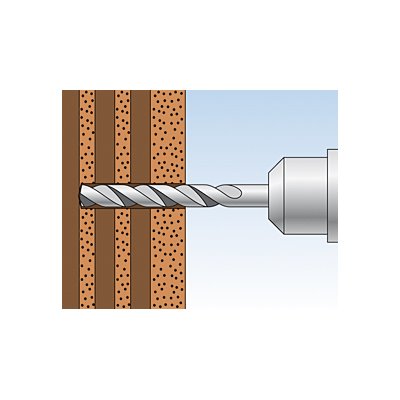

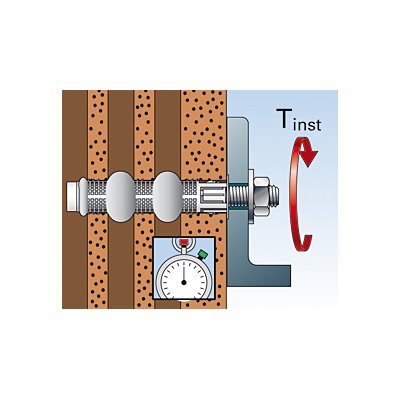

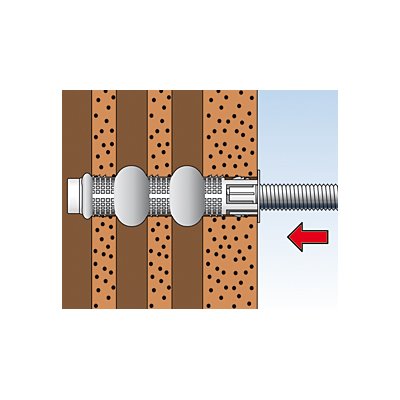

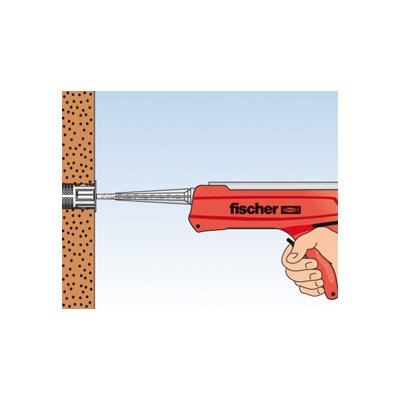

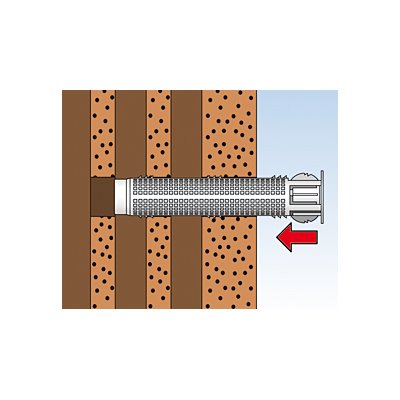

The fischer injection anchor sleeve with mesh is the system component for the use of fischer injection mortar in perforated brickwork. The anchor sleeve is inserted into the drill hole and filled with injection mortar from the base of the anchor sleeve. When the anchor rod is set, the mortar presses the mesh structure outwards and bonds with the perforated brick in a positive fit. This transfers the load into the building material.
- Mesh structure enables optimum positive locking in perforated brick.
Klaus-Fischer-Straße 1
72178
Waldachtal D
07443/12-0
info@fischer.de
| Anchoring depth min. (mm): | 85 |
|---|---|
| Article type: | Anchor sleeves |
| Assembly technology: | Bonding & threaded rod |
| Authorisation for materials: | Hochlochziegel, Hohlblock aus Leichtbeton, Hohlblock aus Beton, Kalksand-Lochstein, Kalksand-Vollstein, Vollziegel, Bimshohlstegdielen, Hohlkörperdecken und andere Lochsteine, Vollbims und andere Vollbaustoffe |
| Brand: | fischer |
| Contents (st): | 20 |
| Drill-Ø (mm): | 18 |
| Drill hole depth min (mm): | 95 |
| Manufacturer: | Fisherman |
| Manufacturer designation: | Injection anchor sleeve |
| Material Chemical dowels: | Plastic |
| Model: | 18x85 N |
| Series: | FIS H |
| Suitable for concrete: | True |
| Suitable for perforated bricks: | True |
| Suitable for solid bricks: | True |
| suitable for: | Ø10/M10 |
