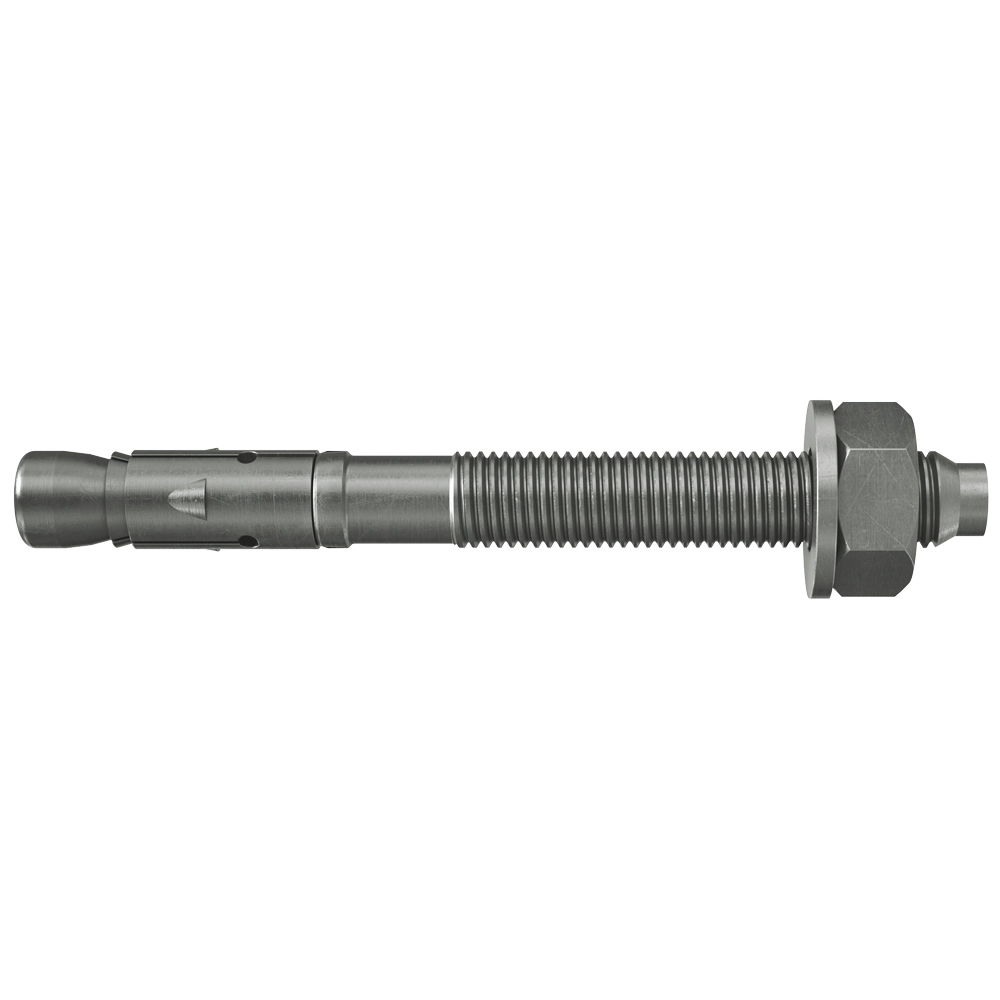

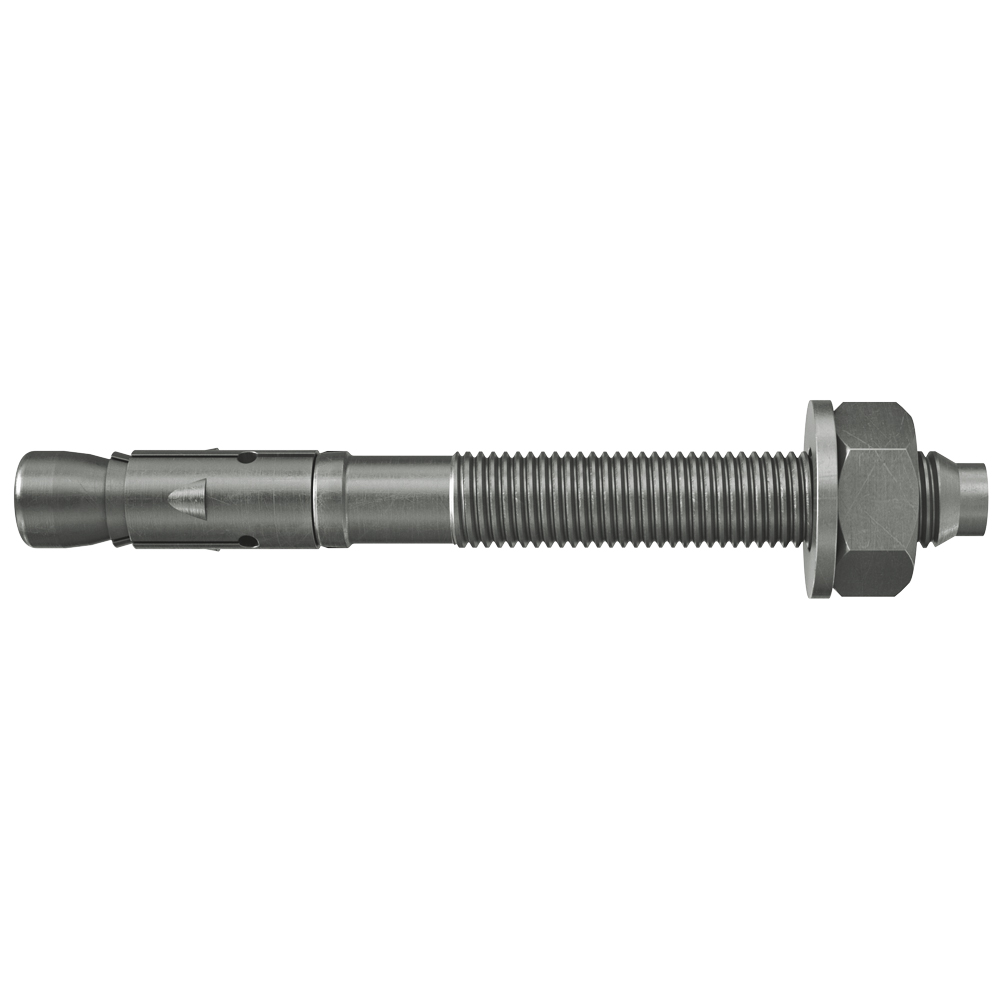

The fischer FAZ II bolt anchor is the steel anchor for the highest demands. The steel anchor is used to fix heavy loads in cracked concrete. The FAZ II can be used particularly flexibly thanks to its simple installation. The proven expansion clip guides the loads safely into the concrete and enables the highest load-bearing capacity. The steel anchor is ideal for anchoring railings, cable trays and brackets, for example.

Stainless steel: maximum safety for outdoor use.
Simple installation: just a few hammer blows and minimal tightening slip. Saves time and effort.
Powerful fastening: expansion clip guarantees maximum load-bearing capacity. Fewer fixing points and smaller anchor plates save time and money.

Manufacturer "fischer Deutschland Vertriebs GmbH"

fischer Deutschland Vertriebs GmbH

Klaus-Fischer-Straße 1
72178
Waldachtal D
07443/12-0
info@fischer.de

More products from fischer Deutschland Vertriebs GmbH

Anchor system:	mechanical
Article type:	Bolt anchor
Assembly technology:	Screws & spreaders
Authorisation for materials:	Concrete C20/25 to C50/60 - cracked and non-cracked
Brand:	fischer
Contents (st):	1
Diameter (mm):	12
Dowel/anchor with edge:	false
Drill-Ø (mm):	12
Drill hole depth min (mm):	100
Length (mm):	110
Manufacturer:	Fisherman
Manufacturer designation:	Bolt anchor
Material dowel & anchor:	Stainless steel A4
Model:	FAZ II 12/10 R E
Suitable for concrete:	True
Test mark:	ETA-19/0520
suitable for:	SW19
