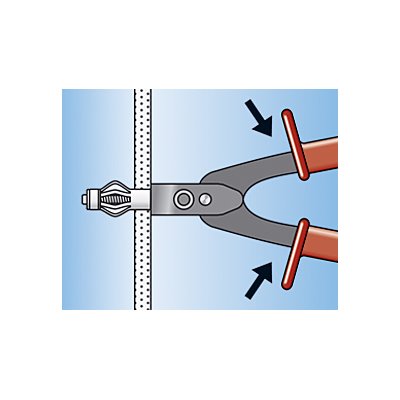

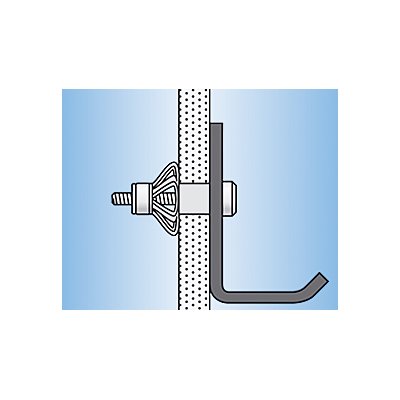

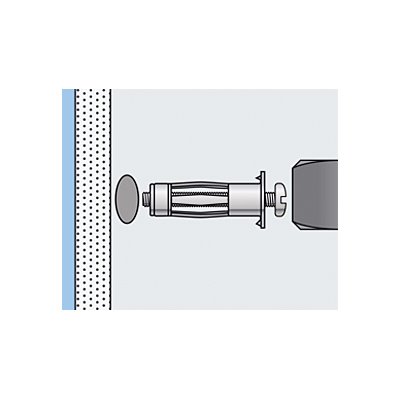

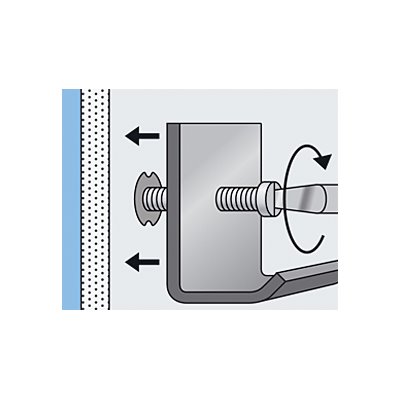

The fischer HM-S cavity metal plug is a versatile cavity plug with metric screw for all panelled building materials. The plug is installed using the fischer HM-Z 1 installation pliers in the push-in installation. The pliers are used to pull the plug in the cavity against the board building material. The expansion arms fold open and press against the back of the panel. Alternatively, installation is also possible using a screwdriver or cordless screwdriver. The fischer HM-S cavity metal plug is suitable for fixing lights, towel rails and curtain rails in interiors.

Multiple loosening and fastening of the attachment part without reducing the load-bearing capacity. This increases flexibility.
High load-bearing capacity thanks to the large contact surface of the spreader arms.
Anti-rotation lock for convenient installation: claw on the edge of the dowel fixes the dowel in the panelled building material.

Manufacturer "fischer Deutschland Vertriebs GmbH"

fischer Deutschland Vertriebs GmbH

Klaus-Fischer-Straße 1
72178
Waldachtal D
07443/12-0
info@fischer.de

More products from fischer Deutschland Vertriebs GmbH

Article type:	Hollow metal dowel
Assembly technology:	Screws & spreaders
Authorisation for materials:	Plasterboard and gypsum fibreboard, hollow ceilings, wood wool lightweight panels, chipboard, plywood panels
Brand:	fischer
Contents (st):	50
Drill-Ø (mm):	10
Drill hole depth min (mm):	71
Length (mm):	65
Manufacturer:	Fisherman
Material dowel & anchor:	Metal
Model:	HM 5X65 S
Suitable for gypsum fibreboards:	True
Suitable for panel building materials:	True
Suitable for plasterboard:	True
suitable for:	Panel thickness: 20 to 34 mm
