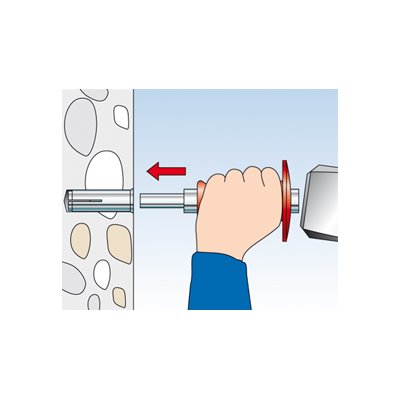

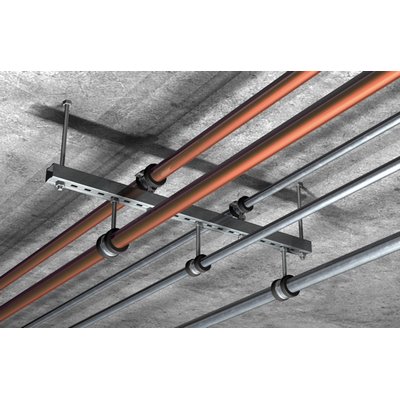

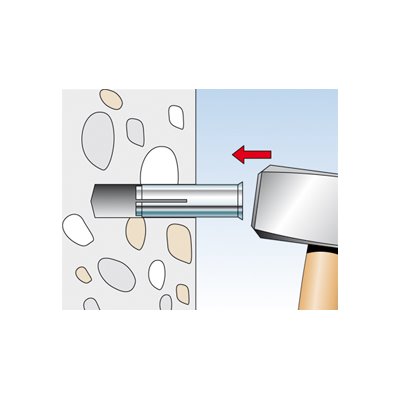

The fischer EA II hammer-in anchor is an internally threaded anchor made of galvanised steel. The hammer-in anchor is set flush with the surface of the anchoring base using a hammer. Using the EAW H Plus hammer-in tool or the EA II S-SDS machine setting tool, the sleeve is expanded by driving in the internal pin and braced against the drill hole wall. No torque needs to be applied to the screw or threaded rod for correct expansion. The fischer EA II drive-in anchor is ideal for fixing sprinkler systems, grilles and brackets indoors with approval.
- Simple impact installation: no slipping during installation due to the pronounced edge of the anchor sleeve.

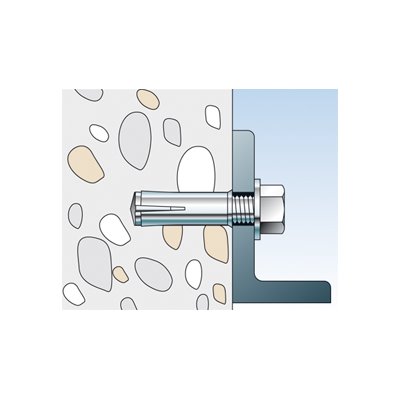

- Use of standard metric screws and threaded rods reduces complexity.
- Power-saving series installation with EA II S-SDS machine setting tool.

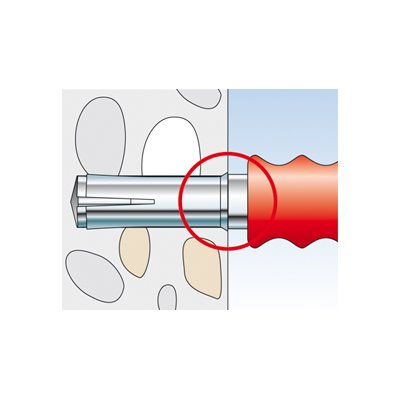

- Visual inspection through embossing.
- ETA approval for non-cracked concrete and multiple fixings.
Klaus-Fischer-Straße 1
72178
Waldachtal D
07443/12-0
info@fischer.de
| Anchor system: | mechanical |
|---|---|
| Article type: | Drive-in anchor |
| Assembly technology: | Striking & spreading |
| Brand: | fischer |
| Contents (st): | 100 |
| Drill-Ø (mm): | 10 |
| Drill hole depth min (mm): | 33 |
| Length (mm): | 30 |
| Manufacturer: | Fisherman |
| Manufacturer designation: | Drive-in anchor |
| Material dowel & anchor: | Steel |
| Model: | EA II vz M8 |
| Suitable for concrete: | True |
| Suitable for natural stone: | True |
| Test mark: | ETA-07/0135, ETA-07/0142 |
| Hersteller |
| Produktinformation |
0 of 0 reviews
Average rating of 0 out of 5 stars
Login
Fischer drive-in anchor EA II M8 GVZ PU=100
€100.32
