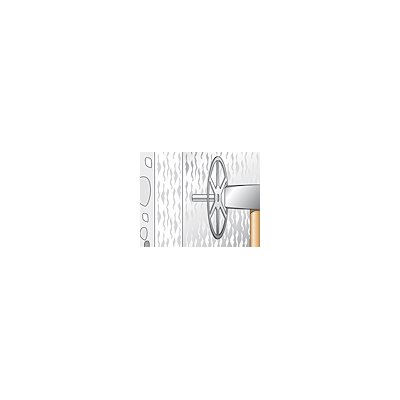

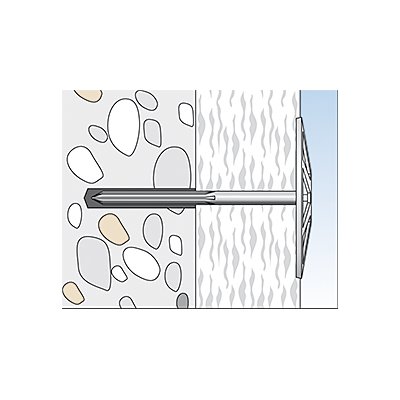

The fischer DHK insulation retainer is the economical plastic insulation retainer for insulation boards with low compressive strength. The DHK is driven in with a hammer in push-through installation. When hammered in, the ribs are braced in the drill hole and the DHK is optimally pressed into place. The fischer DHK insulation fastener is suitable for anchoring insulation boards in solid and perforated brick, concrete and aerated concrete.

Reduced drilling effort: optimised geometry reduces anchoring depth.
Permanent contact pressure thanks to flexible webs in the disc area.
Simple impact installation saves time and costs.
Visually neutral joint appearance with black-laminated insulation boards thanks to black colouring.

Manufacturer "fischer Deutschland Vertriebs GmbH"

fischer Deutschland Vertriebs GmbH

Klaus-Fischer-Straße 1
72178
Waldachtal D
07443/12-0
info@fischer.de

More products from fischer Deutschland Vertriebs GmbH

Anchoring depth min. (mm):	20
Article type:	Insulation holder
Assembly technology:	Beating
Authorisation for materials:	Dämmplatten, Beton, Hohlblock aus Leichtbeton, Hochlochziegel, Kalksand-Lochstein, Kalksand-Vollstein, Naturstein mit dichtem Gefüge, Porenbeton, Vollstein aus Leichtbeton, Vollziegel
Brand:	fischer
Contents (st):	200
Dowel with insulating disc:	True
Drill-Ø (mm):	8
Drill hole depth min (mm):	30
Length (mm):	165
Manufacturer:	Fisherman
Manufacturer designation:	Insulation holder
Material dowel & anchor:	Plastic
Model:	DHK 140
Suitable for aerated concrete:	True
Suitable for concrete:	True
Suitable for insulating materials:	True
Suitable for natural stone:	True
Suitable for panel building materials:	True
Suitable for perforated bricks:	True
Suitable for solid bricks:	True
