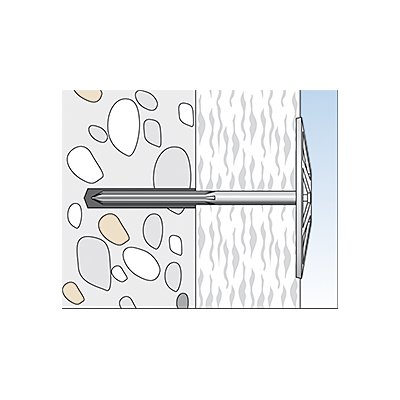

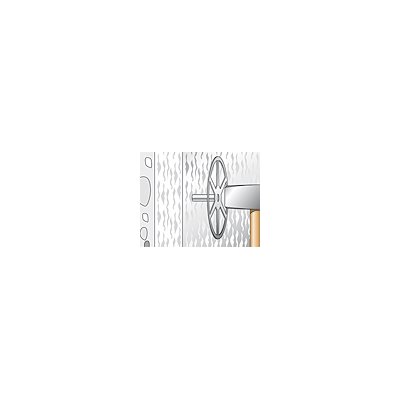

The fischer DHK insulation retainer is the economical plastic insulation retainer for soft insulation materials. The optimised geometry of the expansion area ensures a shallow anchoring depth and reduces the amount of drilling required. DHK is driven in with a hammer in push-through installation. When hammered in, the ribs are braced in the drill hole and the DHK is optimally pressed into place. Flexible webs in the disc area adapt to the insulation material and ensure permanent contact pressure. The fischer DHK 90 insulation fastener is suitable for anchoring insulation boards in solid and perforated brick, concrete and aerated concrete.
- Permanent contact pressure thanks to flexible webs in the disc area.
- Simple impact installation saves time and costs.
- Visually neutral joint appearance with black-laminated insulation boards thanks to black colouring.
- Reduced drilling effort: optimised geometry reduces anchoring depth.
Klaus-Fischer-Straße 1
72178
Waldachtal D
07443/12-0
info@fischer.de
| Anchoring depth min. (mm): | 20 |
|---|---|
| Article type: | Insulation holder |
| Assembly technology: | Beating |
| Authorisation for materials: | Concrete, hollow block made of lightweight concrete, vertically perforated brick, perforated sand-lime brick, solid sand-lime brick, natural stone with dense structure, aerated concrete, solid brick made of lightweight concrete, solid brick |
| Brand: | fischer |
| Contents (st): | 250 |
| Dowel with insulating disc: | True |
| Drill-Ø (mm): | 8 |
| Drill hole depth min (mm): | 30 |
| Length (mm): | 65 |
| Manufacturer: | Fisherman |
| Manufacturer designation: | Insulation holder |
| Material dowel & anchor: | Plastic |
| Model: | DHK 40 |
| Suitable for aerated concrete: | True |
| Suitable for concrete: | True |
| Suitable for natural stone: | True |
| Suitable for perforated bricks: | True |
| Suitable for solid bricks: | True |
