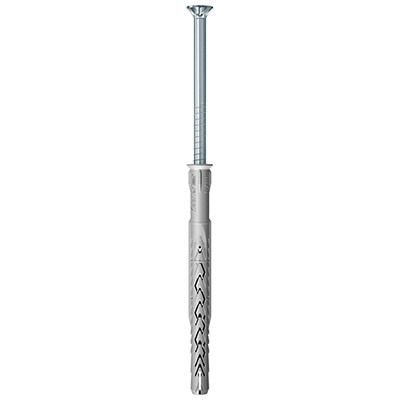

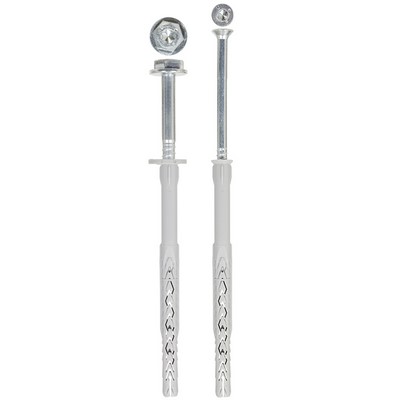

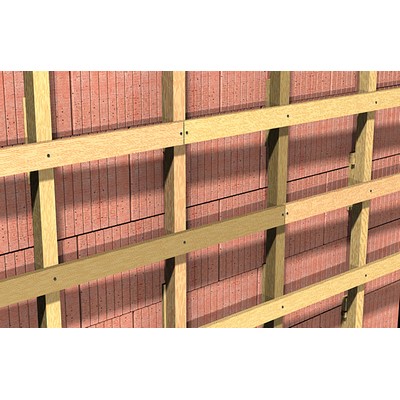

The fischer SXRL long-shaft plug with up to three anchoring depths is approved with the fischer countersunk head screw for multiple fixings of non-load-bearing systems in concrete, masonry and aerated concrete. The SXRL 14 also has an approval for pressurised spacer constructions in façades. In perforated brickwork, the two expansion zones of the anchor apply force evenly, while in aerated concrete and solid building materials they combine to form one long expansion element. This guarantees outstanding load values. The extensive range with diameters of 8, 10 and 14 mm and dowel lengths of up to 360 mm enable versatile applications. The SXRL with the countersunk head screw is particularly recommended for fastening timber constructions.

ETA rating with outstanding load values: secure multiple fastenings of non-load-bearing systems in concrete and masonry.

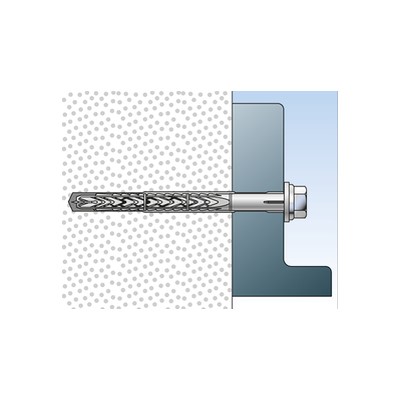

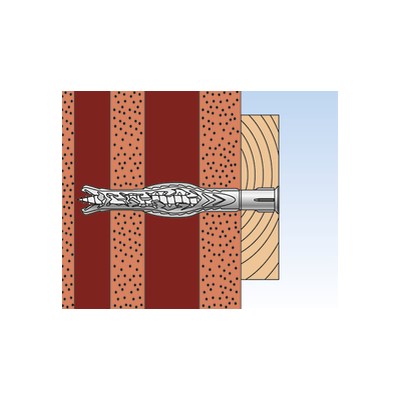

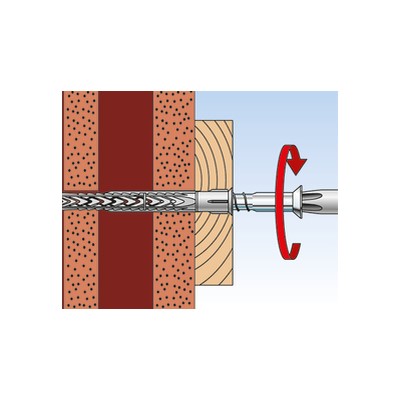

Loads are transferred evenly into the building material thanks to the anchor geometry. This means that webs are not destroyed in thin-walled building materials.
The long expansion element with two anchoring depths makes the SXRL versatile in use.

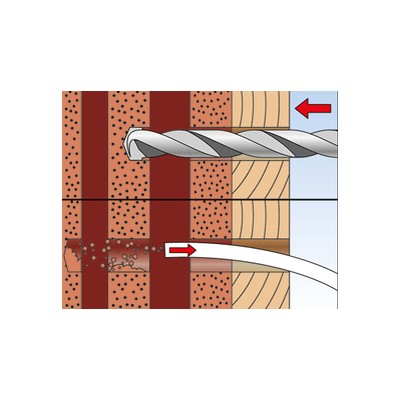

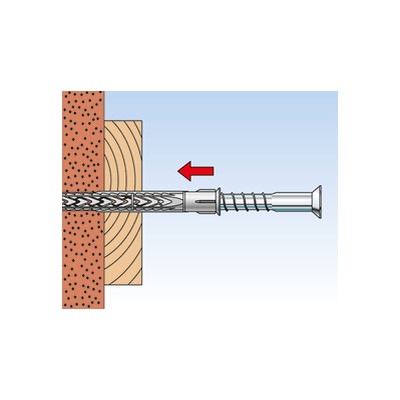

Easy installation: ribs prevent the plug from turning when it is inserted deeper.

Manufacturer "fischer Deutschland Vertriebs GmbH"

fischer Deutschland Vertriebs GmbH

Klaus-Fischer-Straße 1
72178
Waldachtal D
07443/12-0
info@fischer.de

More products from fischer Deutschland Vertriebs GmbH

Article type:	Long shank dowel
Assembly technology:	Screws & spreaders
Authorisation for materials:	Perforated brick, aerated concrete, hollow block made of lightweight concrete, perforated sand-lime brick, thermal insulation blocks, solid block made of lightweight and normal concrete, solid brick, solid sand-lime brick, concrete ? C12/15
Brand:	fischer
Contents (st):	50
Dowel/anchor with edge:	True
Drill-Ø (mm):	10
Drill hole depth min (mm):	90
Length (mm):	80
Manufacturer:	Fisherman
Manufacturer designation:	Long shank dowel
Material dowel & anchor:	Nylon
Model:	SXRL 10x80 T
Scope of delivery:	Countersunk head screw
Suitable for aerated concrete:	True
Suitable for concrete:	True
Suitable for insulating materials:	True
Suitable for perforated bricks:	True
Suitable for solid bricks:	True
Test mark:	ETA-07/0121
suitable for:	TX40
