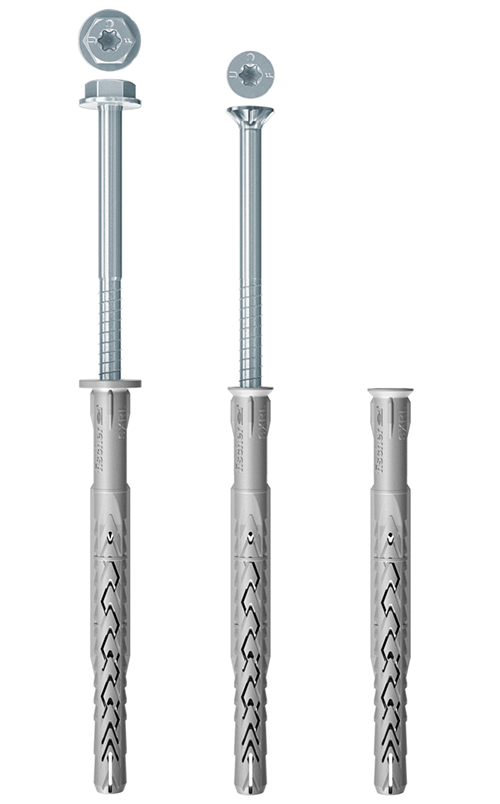

The fischer SXRL long-shaft plug with up to three anchoring depths is approved with the fischer countersunk head screw for multiple fixings of non-load-bearing systems in concrete, masonry and aerated concrete. The SXRL 14 also has an approval for pressurised spacer constructions in façades. In perforated brickwork, the two expansion zones of the anchor apply force evenly, while in aerated concrete and solid building materials they combine to form one long expansion element. This guarantees outstanding load values. The extensive range with diameters of 8, 10 and 14 mm and dowel lengths of up to 360 mm enable versatile applications. The SXRL with the countersunk head screw is particularly recommended for fastening timber constructions.

ETA rating with outstanding load values: secure multiple fixings for non-load-bearing systems in concrete and masonry.
Loads are transferred evenly into the building material thanks to the anchor geometry. This means that webs are not destroyed in thin-walled building materials.
The long expansion element with three anchoring depths makes the SXRL versatile in use.
Easy installation: ribs prevent the anchor from turning when it is inserted deeper.

Manufacturer "fischer Deutschland Vertriebs GmbH"

fischer Deutschland Vertriebs GmbH

Klaus-Fischer-Straße 1
72178
Waldachtal D
07443/12-0
info@fischer.de

More products from fischer Deutschland Vertriebs GmbH

Anchoring depth min. (mm):	50
Article type:	Long shank dowel
Assembly technology:	Screws & spreaders
Brand:	fischer
Dowel/anchor with edge:	True
Drill-Ø (mm):	10
Drill hole depth min (mm):	190
Length (mm):	180
Manufacturer:	Fisherman
Manufacturer designation:	Long shank dowel
Material dowel & anchor:	Nylon
Model:	SXRL 10x180 T E
Scope of delivery:	with countersunk head screw TX40 drive
Suitable for aerated concrete:	True
Suitable for concrete:	True
Suitable for perforated bricks:	True
Test mark:	ETA

Links:

Hersteller

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

Your email address

Your password

Display reviews in current language only.

No reviews found. Share your insights with others.

Fischer long-shaft dowel SXRL PU=25 SXRL 10x180 T E - 544228

fischer Deutschland Vertriebs GmbH

Product number: 7040433233

EAN: 4048962312799

€8.57

Content: 1 STÜCK

Approx. 2-3 business days delivery time after receipt of payment

Munich-Sendling 25 STÜCK IN STOCK to route planner
