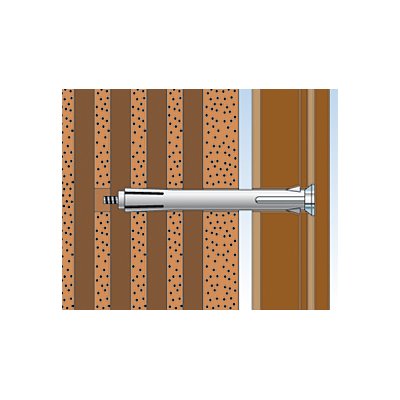

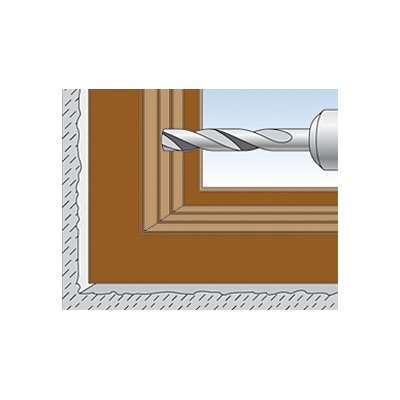

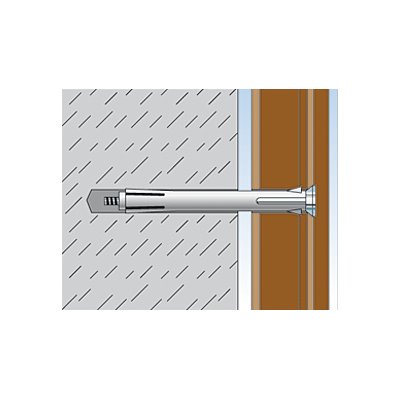

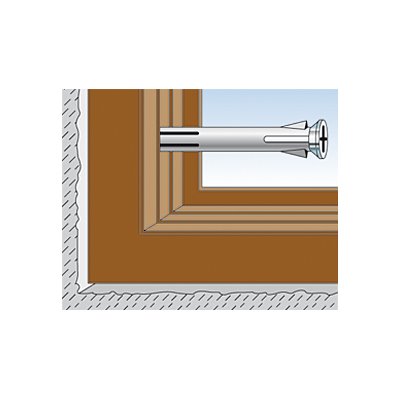

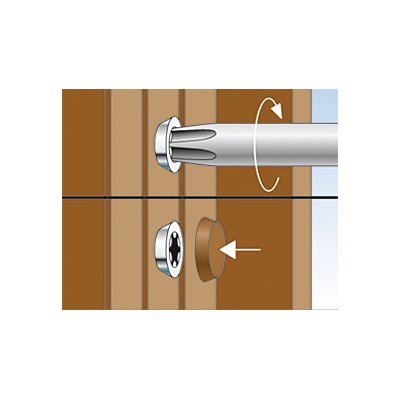

The fischer F 10 M metal frame plug is a special plug for stress-free spacer fixing of window and door frames. It consists of a metal sleeve and a countersunk screw made of galvanised steel. The F 10 M is installed in a time-saving push-through installation. When the screw is tightened, the cone is pulled into the dowel sleeve, expands and braces itself against the wall of the drilled hole. As a result, the window frame is fixed without tension in solid and perforated building materials. In addition to fixing window and door frames, the fischer F 10 M metal frame plug is also suitable for squared timber.

Fire protection tested to R 120: Use in fire protection-relevant applications.
Stress-free and durable fixing of the frame. Continuous thread prevents the frame from being pulled in.
Use for all solid and perforated building materials reduces complexity.
Tension and compression-resistant anchoring of metal and plastic profiles.
With countersunk head screw.

Manufacturer "fischer Deutschland Vertriebs GmbH"

fischer Deutschland Vertriebs GmbH

Klaus-Fischer-Straße 1
72178
Waldachtal D
07443/12-0
info@fischer.de

More products from fischer Deutschland Vertriebs GmbH

Anchoring depth min. (mm):	30
Article type:	Metal frame dowels
Assembly technology:	Screws & spreaders
Authorisation for materials:	Concrete, vertically perforated brick, hollow block made of lightweight concrete, perforated sand-lime brick, solid sand-lime brick, aerated concrete, solid block made of lightweight concrete, solid brick
Brand:	fischer
Contents (st):	100
Dowel/anchor with edge:	True
Drill-Ø (mm):	10
Length (mm):	132
Manufacturer:	Fisherman
Manufacturer designation:	Metal frame dowels
Material dowel & anchor:	Metal
Model:	F10 M 132
Suitable for aerated concrete:	True
Suitable for concrete:	True
Suitable for perforated bricks:	True
Suitable for solid bricks:	True
Test mark:	Fire resistance duration F 120
