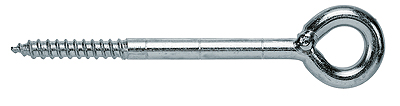

The fischer GS scaffolding eye made of galvanised steel is suitable for fixing in concrete and solid brick together with the fischer S 14 ROE expansion plug. The use of the S 16 H R long-shaft plug is recommended for masonry made of perforated building materials and aerated concrete. The optimum interaction between the scaffolding eye (up to 350 mm shank length) and the anchor enables high holding values and therefore offers greater security. The high-quality welded connection prevents the eyelet from bending open and therefore offers additional security. The screw-in marking enables visual inspection during installation. The fischer scaffolding eyelet is ideal for fastening façade scaffolding, trellises or washing lines.

No bending of the eyelet thanks to the high-quality welded connection.
Optimum interaction between scaffolding eyelet and fischer expansion plug.

Manufacturer "fischer Deutschland Vertriebs GmbH"

fischer Deutschland Vertriebs GmbH

Klaus-Fischer-Straße 1
72178
Waldachtal D
07443/12-0
info@fischer.de

More products from fischer Deutschland Vertriebs GmbH

Article type:	Scaffolding anchoring
Brand:	fischer
Contents (st):	1
Hardware material:	Steel
Head drive:	Hand-guided
Inside Ø (mm):	23
Length (mm):	120
Manufacturer:	Fisherman
Shape ring/hook:	round
Surface treatment of hardware:	Galvanised
Thickness (mm):	12
Thread division:	Partial thread
Thread type:	Wood thread
suitable for:	S 14 ROE 185, S 16 H 160 R
