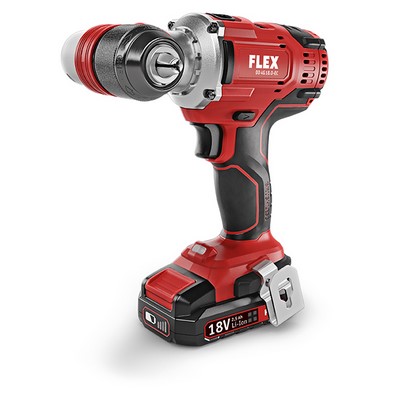

Flex cordless drill driver

Electronic Management System (EMS) protects the machine, extends service life and increases efficiency

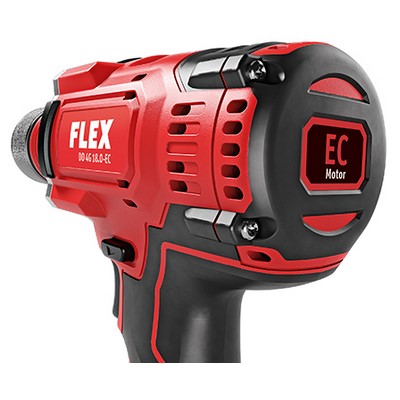

Brushless motor with higher efficiency and longer service life

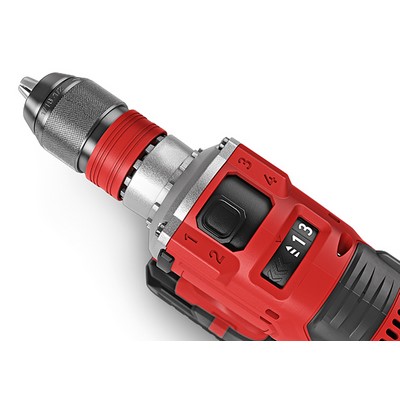

4-speed gearbox with up to 4200 rpm for maximum drilling and screwdriving efficiency
Throttle switch with switch-on lock
Electronic quick brake
Robust die-cast aluminium gear housing

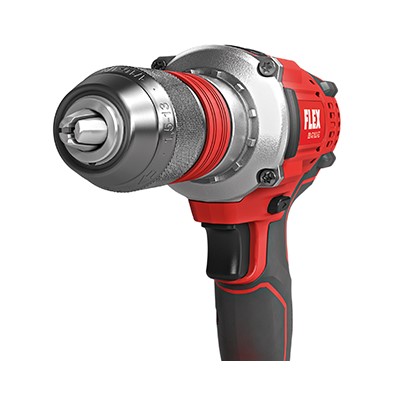

Quick-action drill chuck in metal design with thrust ring and auto-lock function

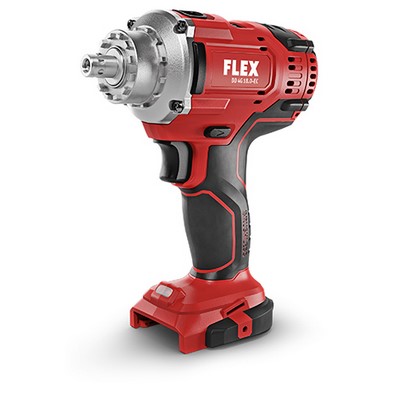

Drill chuck can be removed without tools
Clockwise/anticlockwise rotation with switch-on lock

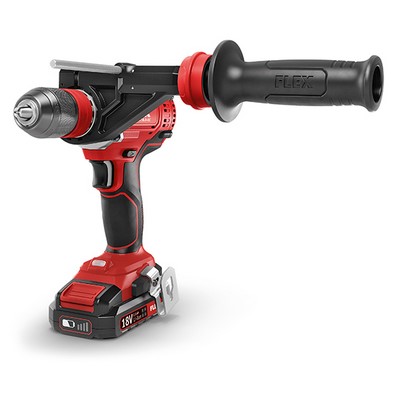

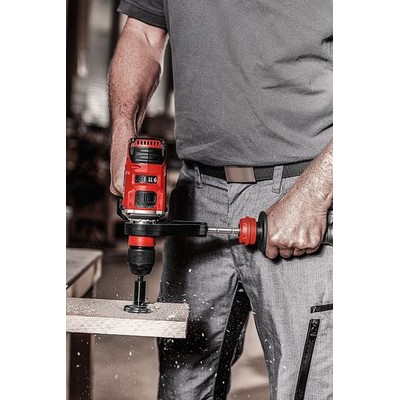

User protection even at maximum torque thanks to extendable handle

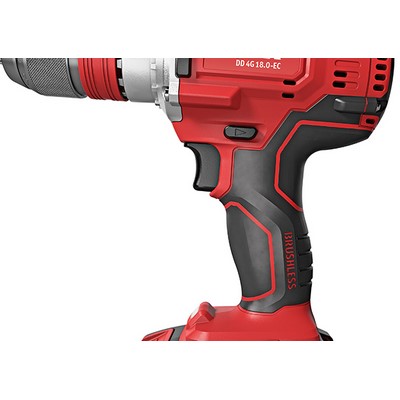

Ergonomically designed, non-slip, rubberised handle

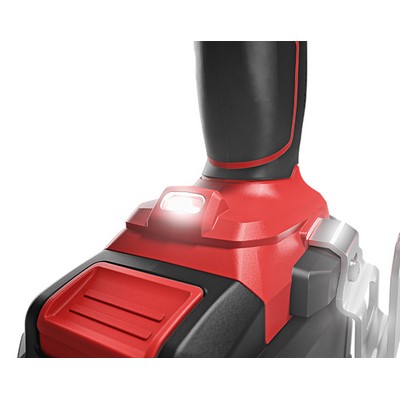

Integrated LED light with afterglow function
LED battery capacity indicator

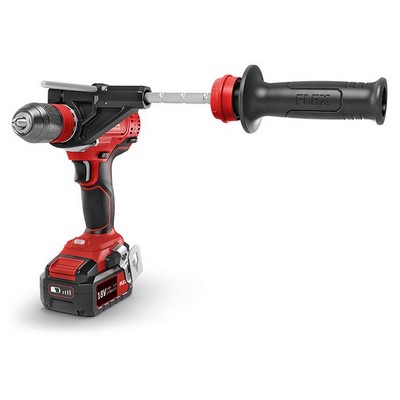

Includes mountable additional handle, belt clip and bit holder
FLEX battery system: Operation with all 18.0 V battery packs. Supplied without battery, without charger

Manufacturer "FLEX-Elektrowerkzeuge GmbH"

FLEX-Elektrowerkzeuge GmbH

Bahnhofstr. 15
71711
Steinheim D
07144/828-0
info@flex-tools.com

Article type:	Cordless drill driver
Battery capacity (Ah):	5
Battery technology:	Li-ion
Battery voltage (V):	18
Brand:	FLEX
Drill chuck clamping range from (mm):	1.5
Drill chuck clamping range up to (mm):	13
Drilling Ø in masonry max. (mm):	16
Drill Ø in steel max. (mm):	13
Drill Ø in wood max. (mm):	76
Drive technology machines:	Battery
Height (mm):	240
Idle speed 1st gear from (min-1):	0
Idle speed 1st gear up to (min-1):	450
Idle speed 2nd gear from (min-1):	0
Idle speed 2nd gear up to (min-1):	900
Idle speed 3rd gear from (min-1):	0
Idle speed 3rd gear up to (min-1):	2000
Length (mm):	215
Manufacturer:	Felx
Max. torque for soft screwing (Nm):	64
Model:	DD 4G 18.0-EC C
Noise level (dB):	89
Number of batteries:	none
Number of gears:	4
Scope of delivery:	1x handle, 1x belt clip, 1x bit holder, 1x bit holder
Tool holder:	Quick-action drill chuck
Torque for hard screwing max. (Nm):	135
Uncertainty at K (m/s²):	1.5
Use Drilling & screwing:	Drilling, screwing
Vibration emission value ah (m/s²):	2.5 m/s² for drilling in metal, 2.5 m/s² for screws
WEEE registration number:	DE10180300
Weight (kg):	1.5
Width (mm):	75
