All-round solution for all levelling and checking work Horizontal and vertical levelling with 3 x 360° green laser lines Creation of right angles on the floor anywhere in the room for straight and diagonal laying of tiles Creation and checking of the correct height of the floor covering Checking the evenness of walls and floors.

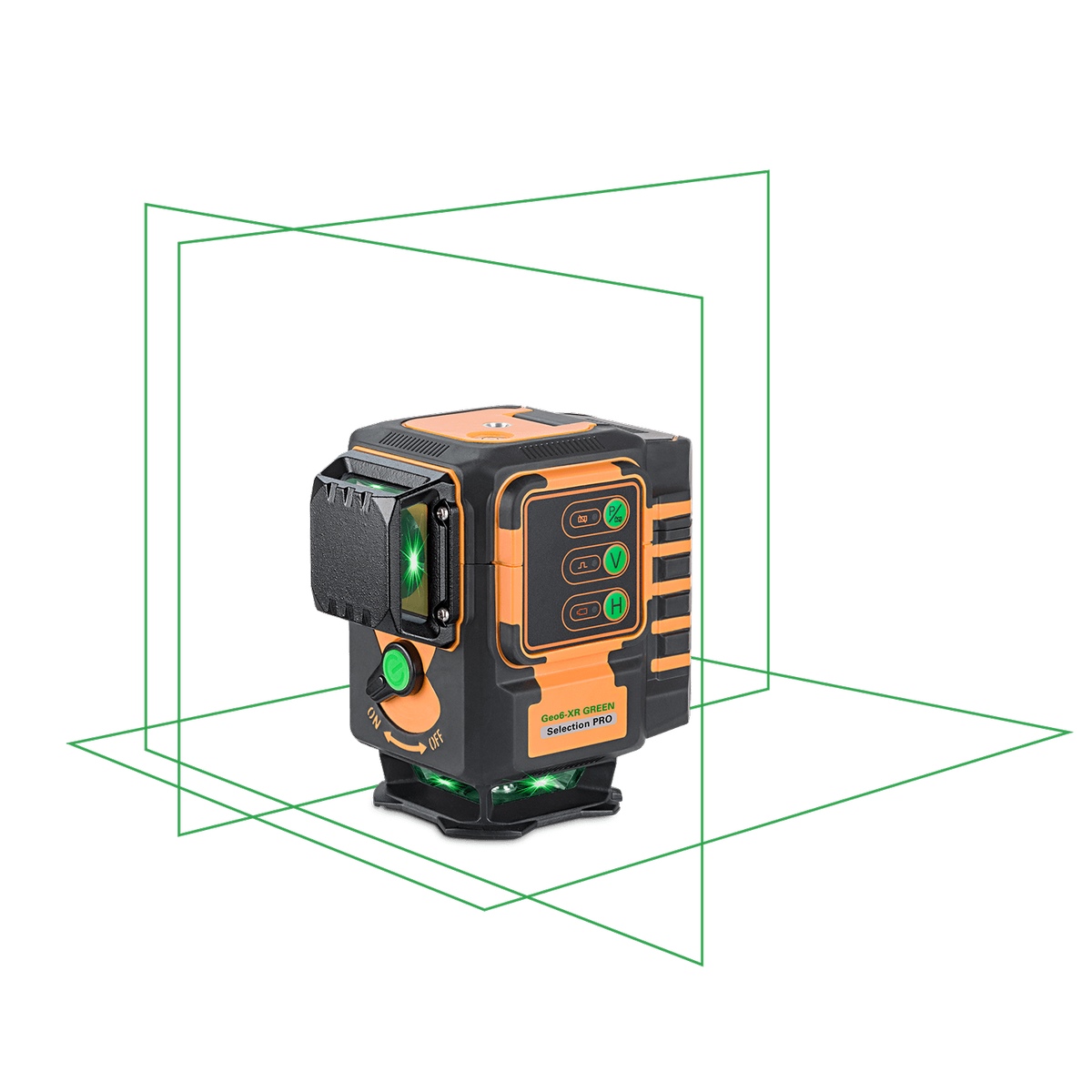

3 x 360° green laser lines, visibility up to 30 m. Small minimum distance of the laser lines of 6 mm from the wall and 8 mm from the floor. Individually height-adjustable platform in the range from 25 to 85 mm for height-correct laying of floor tiles.

20 mm adapter (also for 5/8" tripod connection). Height-adjustable wall bracket with swivelling support rail. Free-hanging attachment to the stand for optimum line visualisation on the floor. Check for uneven floors using height control pins Pulse function for use with receiver (optional).

Manufacturer "geo-FENNEL GmbH"

geo-FENNEL GmbH

Kupferstr. 6
34225
Baunatal D
+49 561 492145
info@geo-fennel.de

More products from geo-FENNEL GmbH

Article type:	Laser rangefinder
Battery technology:	Li-ion
Brand:	geo-FENNEL
Depth (mm):	96
Functions:	3x 360° function, 6 laser crosses, plumb function
Height (mm):	118
IP protection class:	IP54
Laser class:	Class 2
Laser colour:	green
Levelling range:	± 3°
Manufacturer:	geo-FENNEL
Measuring accuracy:	± 0.2 mm/m
Model:	Geo6-XR GREEN SP
Number of batteries:	1
Number of lasers (st):	3
Operating mode:	Battery operation
Running time (h):	5

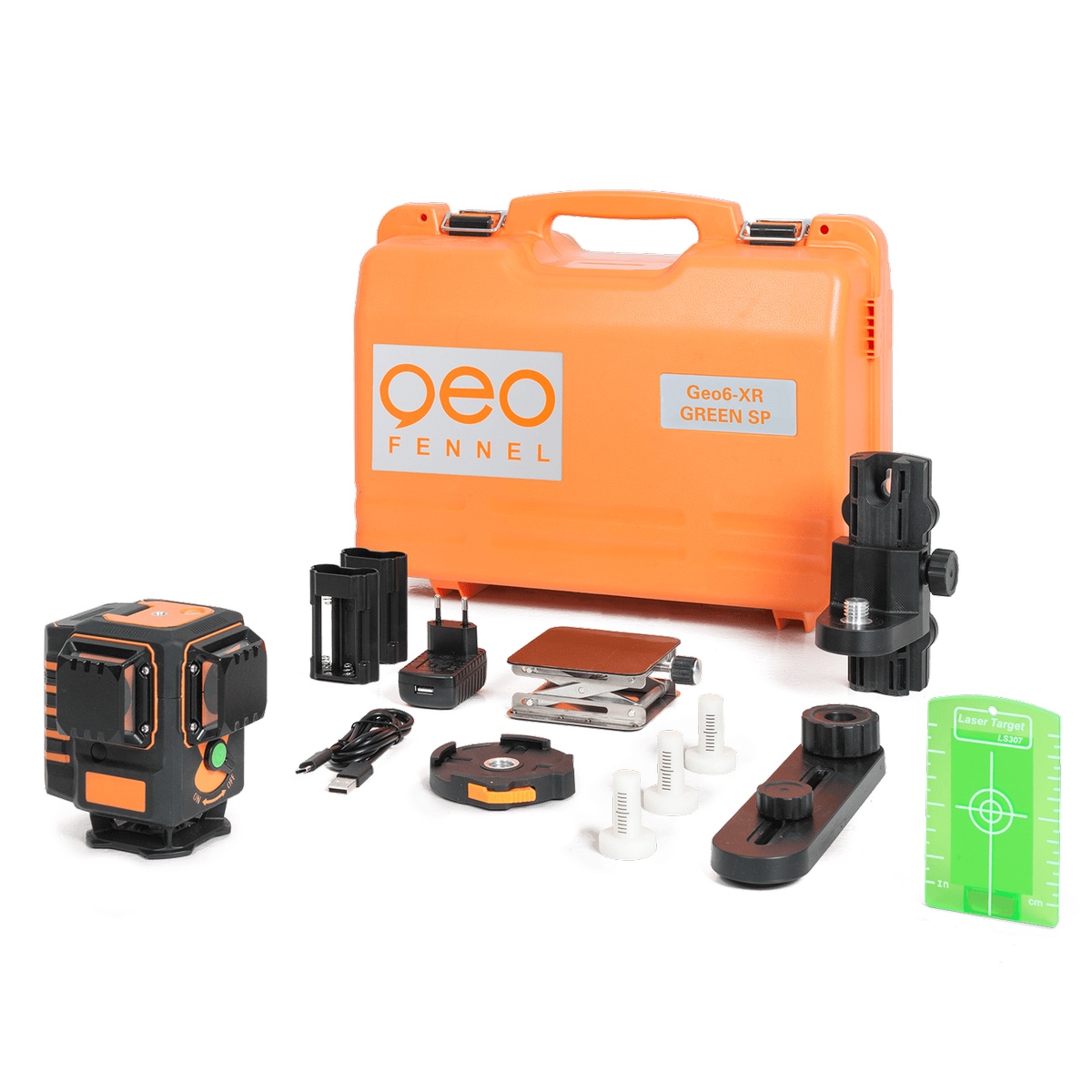

Scope of delivery:	Li-Ion battery, charger & USB 3.0 cable, battery compartment for alkaline batteries, height-adjustable platform, wall bracket, connecting rail, 20 mm adapter with 5/8", 3 height test pins, magnetic target board, case
Self-levelling:	True
Tripod threaded mount:	1/4", 5/8"
Width (mm):	115
Working range-Ø without receiver (m):	40
Working range-Ø with receiver (m):	60
Working range Temperature from (°C):	-10
Working range temperature up to (°C):	45
