Standard annular space seal
with stepped super segment ring technology
- visual and tactile installation safety thanks to integrated inspection opening
- integrated super segment ring technology for customised adaptation to the pipe diameter on site
- Segments with exact diameter labelling

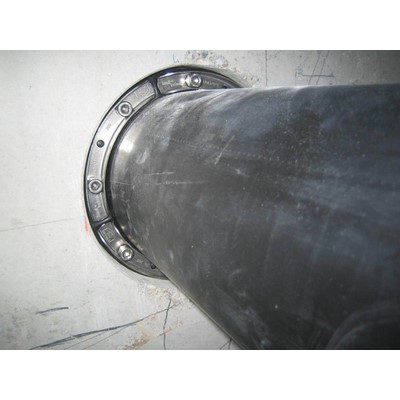

For sealing newly installed or already installed pipes in core drill holes or casing pipes. Can be customised to the most common pipe diameters on site.
Area of application
- Accumulating seepage water, pressurised water, waterproof concrete Stress class 1, DIN 18195 Part 4, DIN 18195 Part 6
Advantages
- Diameter 100 mm split as standard
- can be split on site for subsequent installation from a diameter of 150 mm
- different material combinations for customised applications
Manufacturer "Hauff-Technik GmbH & Co. KG"
Hauff-Technik GmbH & Co. KG
Robert Bosch Straße 9
89568
Hermaringen D
07322/1333-0
office@hauff-technik.de
Robert Bosch Straße 9
89568
Hermaringen D
07322/1333-0
office@hauff-technik.de
| Article type: | Annular space seal |
|---|---|
| Brand: | Hauff technology |
| Manufacturer: | HAUFF |
| Model: | HSD 200 SSG 1x110/125/135/160 b40 A2/EPDM55 |
| Sealing insert for cable/pipe Ø of (mm): | 110 |
| Sealing insert for cable/pipe Ø up to (mm): | 160 |
| Suitable for: | Media line Ø 110, 125, 135, 160 mm |
0 of 0 reviews
Average rating of 0 out of 5 stars
Login
No reviews found. Share your insights with others.
Hauff standard annular space seal DN 200 HSD 200 SSG 1x110/125/135/160
Product number:
0170790287
EAN:
4052487123624
€189.21
Content:
1
STÜCK
Delivery time of 4 business days once payment has been received
