HECO-MULTI-MONTI-plus

The new MULTI-MONTI®-plus (MMS-plus) screw anchor with optimised standards is a further development of the MULTI-MONTI® concrete screw

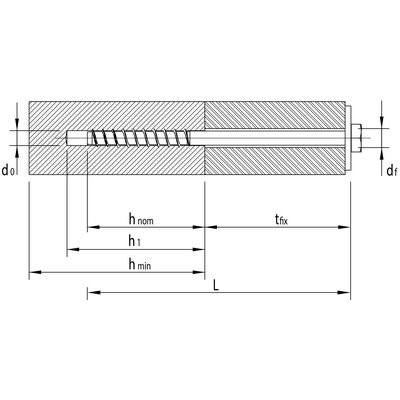

It is screwed directly into a pre-drilled hole without an anchor and can be loaded immediately
The reinforced serration on the screw tip cuts an internal thread into the building material when screwed in
This creates a positive fit, which is ultimately used for anchoring
This not only simplifies the installation process, but also guarantees the craftsman a high degree of application safety
The MULTI-MONTI®-plus concrete screw can be used close to the edge and without a torque spanner, is completely removable and can be reused after testing

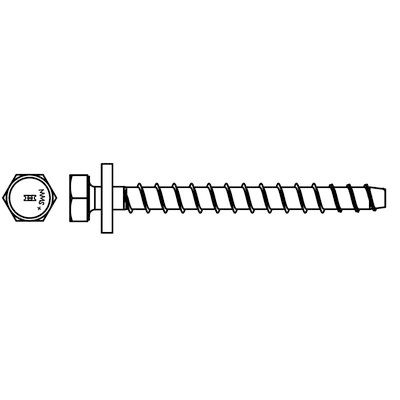

New standard: hexagon head with pressed-on washer
Can be set by machine and can be loaded immediately
Optimised concrete thread with more effective area
Additional load classes per diameter and improved installation safety
Extended product range, e.g. with MMS-plus V plug-in anchor

Manufacturer "Heco Schrauben GmbH & Co. KG"

Heco Schrauben GmbH & Co. KG

Dr-Kurt-Steim-Str. 28
78713
Schramberg D
07422 - 9890
info@heco-schrauben.de

Article type:	Concrete screw
Brand:	HECO screws
Contents (st):	25

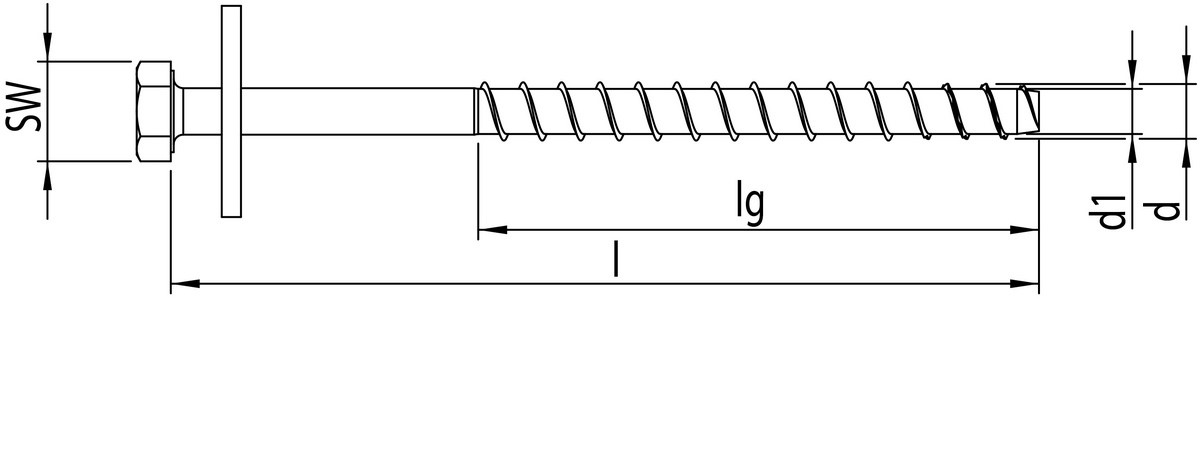

Diameter (mm):	12
Head drive:	Hexagon
Head shape:	Hexagon head
Length (mm):	180
Manufacturer:	Heco screws
Manufacturer designation:	MULTI-MONTI®-plus SS screw anchor
Material screws:	Steel
Scope of delivery:	with disc
Screw with sealing disc:	true
Standard:	ETA-15/0784
Suitable for aluminium & sheet metal:	true
Suitable for concrete:	true
Suitable for plastic:	true
Suitable for wood:	true
Surface treatment of hardware:	blue galvanised, A2K
Tested by building authorities:	true
Thread division:	Partial thread
Thread pitch:	Coarse thread
Thread type:	Concrete thread
suitable for:	SW 19
