Automatic suction at low water levels from 5 mm to prevent major flooding in rooms without a pump shaft or floor drain, e.g. due to flooding, torrential rain, burst pipes or a faulty washing machine. Emergency use in the event of flooding. The cooling jacket with pressure connection at the top ensures sufficient motor cooling at low water levels (sip operation). The sensor switch automatically switches the pump on at a water level of just 5 mm. Residual water is pumped down to 2 mm.

Installation: stationary or portable.

Pumped liquid: Clear or dirty water with solids up to 3 mm particle size. Max. Max. temperature of the pumped liquid: 35°C, briefly up to 60°C

Manufacturer "HOMA Pumpenfabrik GmbH"

HOMA Pumpenfabrik GmbH

Industriestr. 1
53819
Neunkirchen-Seelsch. D
02247/7020
info@homa-pumpen.de

More products from HOMA Pumpenfabrik GmbH

Article type:	Submersible pump
Body material:	Plastic
Brand:	HOMA
Cable designation:	H07RN8-F3G1
Cable length (m):	10
Delivery rate (l/h):	10000
Drive technology machines:	Electrical
Grain size max. (mm):	3
Height (cm):	301
Hose connection suction side:	1 1/4"
IP protection class:	IPX8
Manufacturer:	HOMA
Material pump impeller:	Plastic
Max. delivery head (m):	10.2

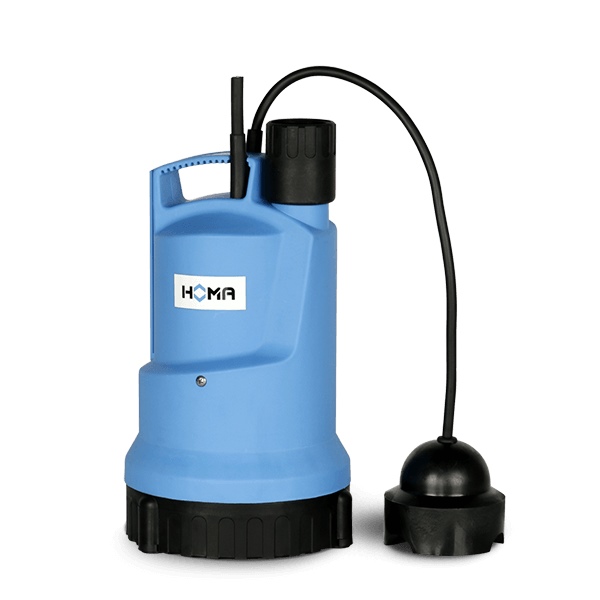

Model:	Chromatic C240 WF
Power (W):	700
Pump drive:	1-stage
Residual water height (mm):	2
Scope of delivery:	Sensor switch, double socket G 1 1/4 incl. sealing rings and hose connection
Supply voltage (V):	230
Temperature resistance up to (°C):	60
Weight (kg):	5.4
Width (cm):	261
