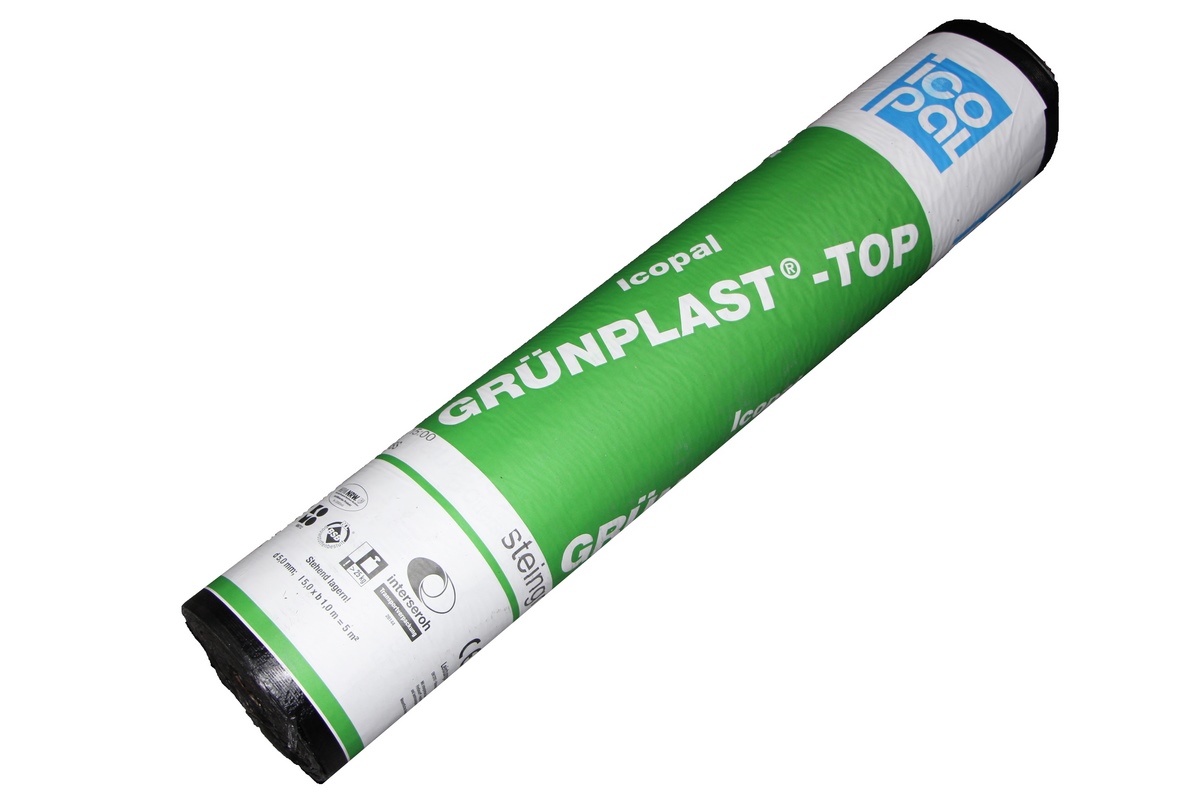

Icopal GRÜNPLAST® TOP

Elastomer bitumen welding membrane with integrated root penetration protection,
FireSmart® finish, grooved VARIO, safety seam and scatter-free transverse joint
free transverse joint.

Field of application:

Top layer of a multi-layer root penetration-resistant waterproofing for new construction
construction and renovation for green roofs in application categories K1 and
K2. The evenly mixed root protection additive is neither harmful to plants
harmful to plants or the environment. It cannot leach out of the elastomer bitumen compound
or be washed out of the elastomer bitumen mass. It only seals (keratinises) growing root tips
growing root tips and thus reliably prevents root growth
root growth.

Property class E1 according to DIN 18531.
Application type DO according to DIN 20000-201.

GRÜNPLAST® TOP is suitable as a membrane for the repair of bituminous seals in accordance with
bitumen waterproofing in accordance with FDRL and DIN 18531.

Waterproofing membrane suitable for structural waterproofing in accordance with DIN 18195, Part 5
Application type BA.

Tested according to FLL guidelines.

In accordance with the ministerial decree, the roof sealing system is
with the ICOFLOR® greening system is resistant to flying sparks and
radiant heat.

GRÜNPLAST® TOP is equipped with FireSmart®, the fire protection formula from Icopal
Formulation from Icopal. It offers homogeneous fire protection through and through with
a variety of tested system roof structures.

Manufacturer "BMI Deutschland GmbH"

BMI Deutschland GmbH

Marke Icopal
Frankfurter Landstr. 2 - 4
61440
Oberursel D
+49 6104 8010 1300
info.icopal.de@bmigroup.com

More products from BMI Deutschland GmbH

Article type:	Welding track
Bitumen finish:	Welding sheet
Brand:	Icopal
Colour:	stone grey
Field of application:	Exterior
Length (m):	5
Length (mm):	5000
Manufacturer:	Icopal
Material waterproofing membranes:	Elastomer bitumen
Model:	Grünplast Top
Thickness (mm):	5
Thickness in mm:	5
Use of waterproofing & underlay membranes & separating layers:	Roof waterproofing
Weight per square metre (g):	260
Width (cm):	100
Width (mm):	1000
