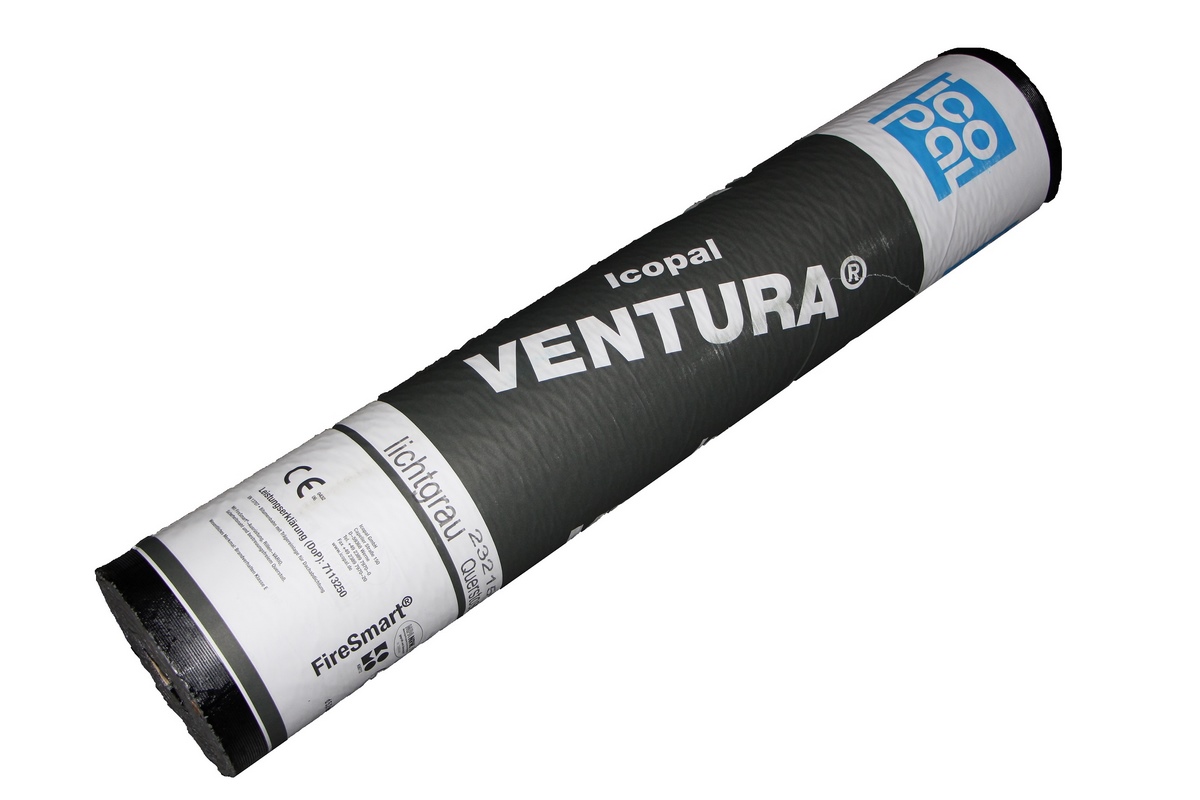

Elastomer bitumen welding membrane with FireSmart® finish, grooved VARIO,
Safety seam and cross-joint with no scoring.
TOP top layer membrane made of elastomer bitumen, with a maximum tensile strength of
1550 N/5 cm. Top layer of a multi-layer waterproofing system for new construction and
In application categories K1 and K2, even on areas subject to heavy loads,
roof constructions of all pitches that are susceptible to vibrations or shocks
for the highest loads. Due to the scattering, additional surface
surface protection is not required.
Property class E1 according to DIN 18531.
Application type DO according to DIN 20000-201.
VENTURA® is suitable for the repair of bitumen waterproofing in accordance with FDRL
and DIN 18531.
Waterproofing membrane suitable for structural waterproofing in accordance with DIN 18195, Part 5
Application type BA.
VENTURA® is equipped with FireSmart®, the fire protection formulation from Icopal.
It offers homogeneous fire protection through and through for a large number of tested system
Roof structures. Detailed information can be found at www.firesmart.de.
Marke Icopal
Frankfurter Landstr. 2 - 4
61440
Oberursel D
+49 6104 8010 1300
info.icopal.de@bmigroup.com
| Article type: | Sealing |
|---|---|
| Bitumen finish: | Welding sheet |
| Brand: | Icopal |
| Colour: | light grey |
| Field of application: | Exterior |
| Length (m): | 5 |
| Manufacturer: | Icopal |
| Material waterproofing membranes: | Elastomer bitumen |
| Model: | Ventura |
| Thickness (mm): | 5.2 |
| Thickness in mm: | 5,2 |
| Use of waterproofing & underlay membranes & separating layers: | Roof waterproofing |
| Weight per square metre (g): | 260 |
| Width (cm): | 100 |
| Width (m): | 1 |
