Kingspan TT46 FM Tapered Insulation

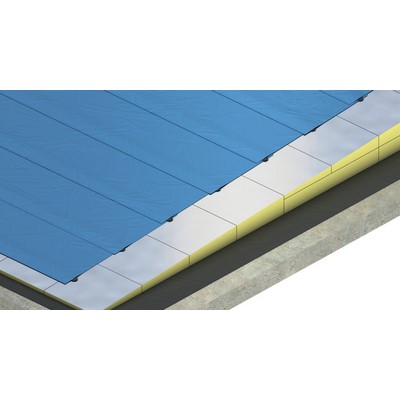

The Kingspan Therma TT46 FM sloped insulation board is made of rigid polyurethane (PIR) foam with multilayer aluminium composite foil on both sides (silver colour) and is designed for the thermal insulation of flat roofs on which a slope is to be created. Therma TT46 FM is suitable for loose laying with ballast as well as for mechanical fastening. Thanks to the high insulation value (WLS 023), low installation heights can be realised. This not only saves transport and installation costs, but also reduces the weight load on the entire roof.
Properties:
The Kingspan Therma TT46 FM sloped insulation board is made of rigid polyurethane (PIR) foam with multilayer aluminium composite foil on both sides (silver colour) and is designed for the thermal insulation of flat roofs on which a slope is to be created. Therma TT46 FM is suitable for loose laying with ballast as well as for mechanical fastening. Thanks to the high insulation value (WLS 023), low installation heights can be realised. This not only saves transport and installation costs, but also reduces the weight load on the entire roof.
Properties:
- Very good insulation values in WLS 023
- Gradient of 2.1%
- High dimensional stability
- Simple processing
- Low weight
- High compressive strength, therefore walkable
- Certified according to FM-Global
Manufacturer "Kingspan Insulation GmbH & Co. KG"
Kingspan Insulation GmbH & Co. KG
Fuggerstr. 15
49479
Ibbenbüren D
+49 5451 898-0
info@kingspaninsulation.de
Fuggerstr. 15
49479
Ibbenbüren D
+49 5451 898-0
info@kingspaninsulation.de
| Area of application Insulation materials: | Roof |
|---|---|
| Area of application Insulation materials according to DIN 4108-10: | DAD, DAA |
| Article type: | Sloped insulation board |
| Brand: | Kingspan® |
| Coating Insulation materials: | Yes |
| Compressive stress (kPA): | 150 |
| Edge formation Insulation materials: | Stump |
| Fire protection class: | E |
| Insulation material: | Polyurethane |
| Length (mm): | 1200 |
| Manufacturer: | Kingspan |
| Nominal value of thermal conductivity ?D (W/mK): | .022 |
| Rated value of thermal conductivity ? (W/mK): | .023 |
| Series: | Therma TT46 |
| Surface coating material: | Aluminium |
| Thickness (mm): | 40 |
| Use of insulating materials: | Flat roof insulation |
| Width (mm): | 1200 |
0 of 0 reviews
Average rating of 0 out of 5 stars
Login
No reviews found. Share your insights with others.

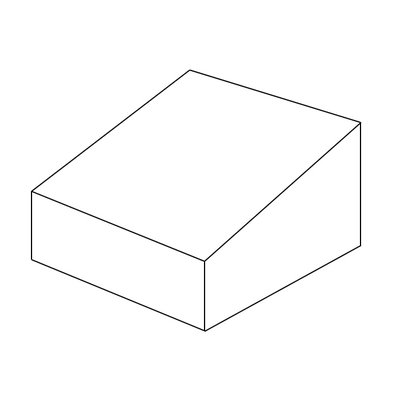

Kingspan PUR gradient ThermaTT46FM WLS023 0.833% gradient 1200x1200mm 30-40mm
Product request
(Product number: 2070740248)
