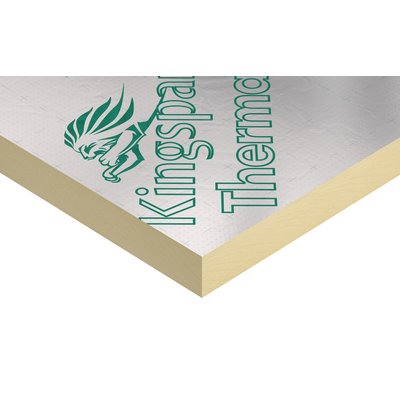

Kingspan PUR Flashing ThermaTT46FM
The Kingspan Therma TT46 FM ridge board consists of polyurethane (PUR/PIR) rigid foam with multilayer aluminium composite foil on both sides (silver colour) and is designed for the thermal insulation of flat roofs on which a slope is to be created. Therma TT46 FM is suitable for loose laying with ballast as well as for mechanical fastening. Thanks to the high insulation value (WLS 023), low installation heights can be realised. This not only saves transport and installation costs, but also reduces the weight load on the entire roof.
Properties:
The Kingspan Therma TT46 FM ridge board consists of polyurethane (PUR/PIR) rigid foam with multilayer aluminium composite foil on both sides (silver colour) and is designed for the thermal insulation of flat roofs on which a slope is to be created. Therma TT46 FM is suitable for loose laying with ballast as well as for mechanical fastening. Thanks to the high insulation value (WLS 023), low installation heights can be realised. This not only saves transport and installation costs, but also reduces the weight load on the entire roof.
Properties:
- Very good insulation values in WLS 023

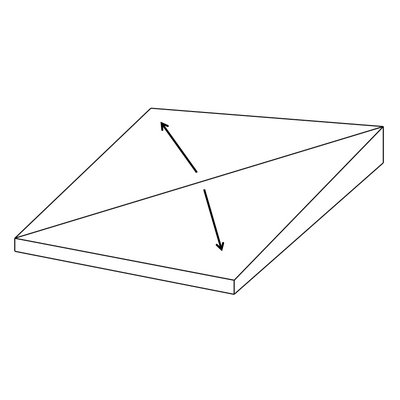

- Gradient of 2.1%
- High dimensional stability
- Simple processing
- Low weight
- High compressive strength, therefore walkable
- Certified according to FM-Global
Manufacturer "Kingspan Insulation GmbH & Co. KG"
Kingspan Insulation GmbH & Co. KG
Fuggerstr. 15
49479
Ibbenbüren D
+49 5451 898-0
info@kingspaninsulation.de
Fuggerstr. 15
49479
Ibbenbüren D
+49 5451 898-0
info@kingspaninsulation.de
| Area of application Insulation materials: | Roof |
|---|---|
| Area of application Insulation materials according to DIN 4108-10: | DAD, DAA |
| Article type: | PUR burr plate |
| Brand: | Kingspan® |
| Coating Insulation materials: | Yes |
| Compressive stress (kPA): | 150 |
| Edge formation Insulation materials: | Stump |
| Fire protection class: | E |
| Insulation material: | Polyurethane |
| Length (mm): | 1200 |
| Manufacturer: | Kingspan |
| Nominal value of thermal conductivity ?D (W/mK): | .022 |
| Rated value of thermal conductivity ? (W/mK): | .023 |
| Series: | Therma TT46 |
| Surface coating material: | Aluminium |
| Thickness (mm): | 75 |
| Use of insulating materials: | Flat roof insulation |
| Width (mm): | 1200 |
