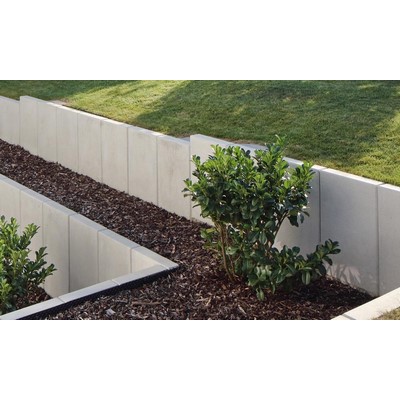

Lithonplus system angle brackets

The universally usable, reinforced angle support elements combine efficient installation with effortless handling
They also fulfil the highest visual and functional requirements
L-TEC system brackets in accordance with DIN EN 15258
Heights 55 cm to 305 cm
Available in lengths of 49 cm, 99 cm and 199 cm: 99 cm and 199 cm without dummy joint
Optimised suspension system with arrangement in the centre of gravity, making handling much easier and enabling rapid relocation
Smooth formwork all round: highest exposed concrete class SB4
Weathering < 1,000 g/m2 in the CDF process
Flawless shaping: no conicity

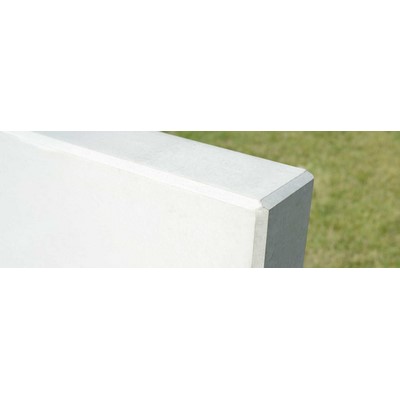

All-round chamfer 8/8
Concrete strength class C35/45
Type-tested statics for numerous load cases
Standard and high load versions
On request: special shapes, e.g. angled approach, mitre, recess

Manufacturer "Lithonplus GmbH & Co . KG"

Lithonplus GmbH & Co . KG

Karl-Lösch Str. 3
67360
Lingenfeld D
06344/949-0
verkauf.thalfingen@lithonplus.de

Article type:	Wall disc
Base material:	Concrete
Brand:	Lithonplus
Colour:	stone grey
Edge design gardening & landscaping:	straight
Edge finish of concrete products:	with bevelled edge
Height (cm):	105
Hint:	Load case A+B, exposed concrete class 4, circumferential chamfer 8x8, concrete strength class C35/45
Length (cm):	49
Manufacturer:	Lithonplus
Material specification:	Fair-faced concrete
Series:	L-TEC
Surface treatment Gardening & landscaping:	smooth
Width (cm):	12
