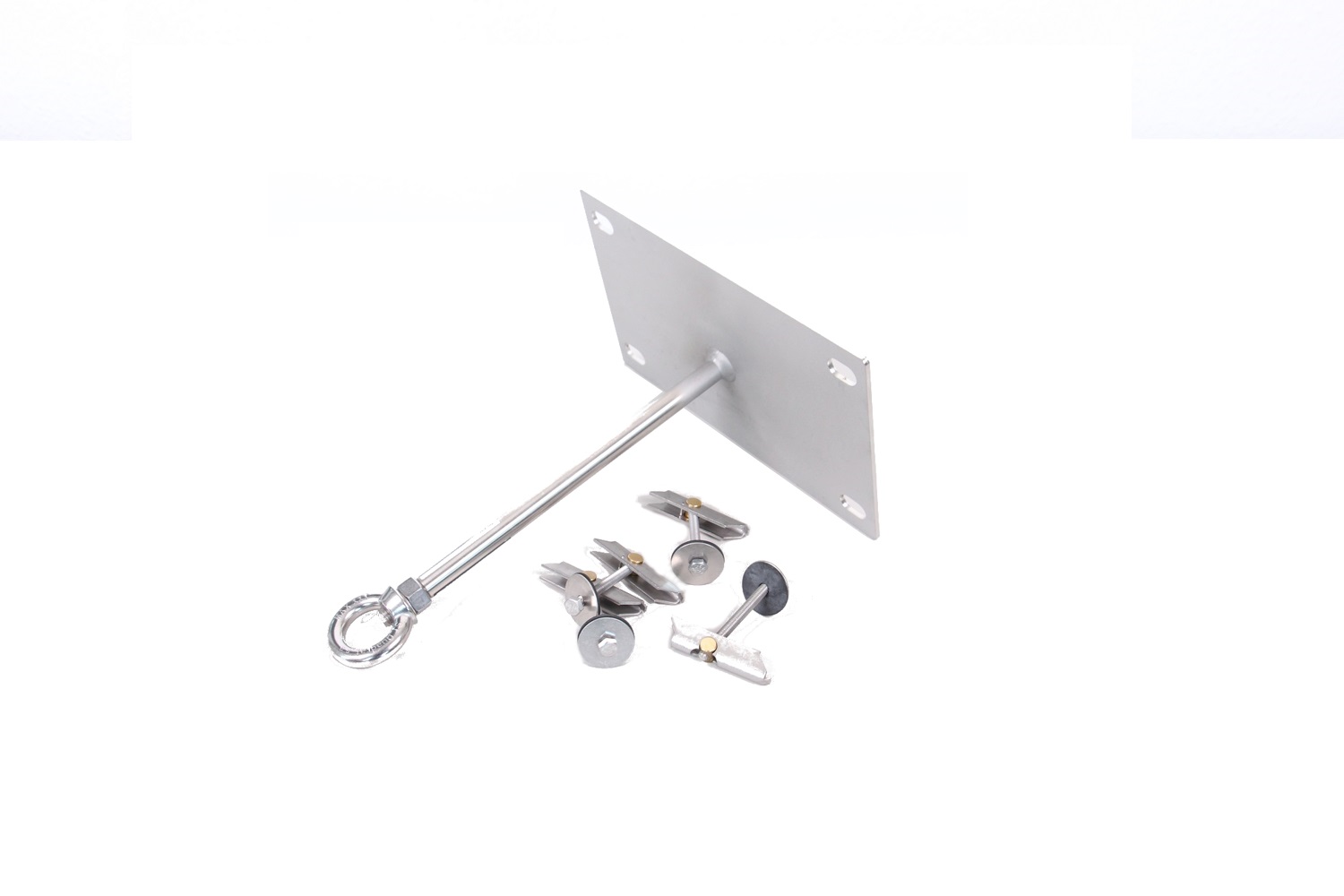

LUX-top® ASP EV 2
- Anchor points for fall protection
- Anchor point for attachment to concrete ceilings/concrete components min. C20/25 (B25)
- Up to construction height 800 mm
- Low setting depth (e.g. for concrete core activation)
- Installation height can be subsequently adjusted using an approved extension
- Tested and certified in accordance with EN 795
- Can be used as a single anchor point (EN 795 type A) or as an end or intermediate anchor in LUX-top® cable systems (EN 795 type C)
- This installation variant is part of the general technical approval (abZ) 14.9-727 and is labelled with the Ü symbol
Manufacturer "ST Quadrat Fall Protection S.A."
ST Quadrat Fall Protection S.A.
m. Mwst
45 rue Fuert
0
Beyren L
+352/283300
info@st-quadrat.lu
m. Mwst
45 rue Fuert
0
Beyren L
+352/283300
info@st-quadrat.lu
| Article type: | Anchor point for fall protection |
|---|---|
| Brand: | ST Quadrat |
| Corrosion protection: | Corrosion resistance class CRC II in accordance with DIN EN 1993-1-4 |
| Dimension: | Base plate: 200 x 312 x 4 mm |
| Height (mm): | 500 |
| Manufacturer: | ST Square |
| Rope material: | Stainless steel |
| suitable for: | Steel trapezoidal profile height 50 - 165 mm |
0 of 0 reviews
Average rating of 0 out of 5 stars
Login
No reviews found. Share your insights with others.
LUX-top® ASP EV 50/9 II - Ø 18mm stainless steel anchor point 500mm
Product request
(Product number: 2010190190)
