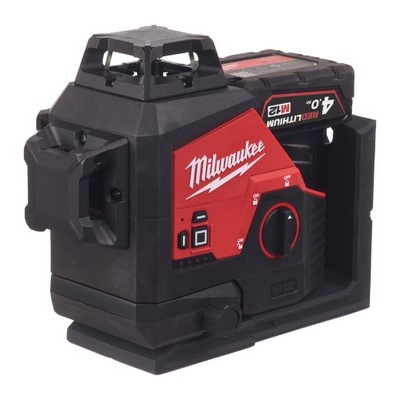

Milwaukee M12™ 3 x 360° Cross Line Laser

The M12™ 3 x 360° cordless cross line laser offers all-in-one functionality with one horizontal and two vertical lines for quick and easy alignment, levelling, squaring and transferring, making it easy to shape large spaces with one tool
With high-intensity green diodes to ensure maximum visibility - up to 4x better visibility compared to red lasers
High intensity green laser beams provide a working range of 38m in radius (100m with one receiver)
Provides an all-day runtime of over 15 hours with an M12™ B4 battery
3-mode pendulum system: Manual mode for use at any angle, self-levelling mode that compensates for a non-level condition with a 4° self-levelling range, and pendulum lock mode to protect components during transport
Integrated magnetic mount with rear-mounted reinforced rare earth magnets, ¼? and ?? Tripod thread and suspension hole - allows attachment to steel studs, wooden studs and tripod
The bracket also allows 330° mounting of the laser fixed around the plumb point, with an integrated fine adjustment for faster point-to-point alignment
Suitable for construction sites with protection class IP 54, withstands drops from a height of up to 1 m
100% system-compatible with the MILWAUKEE®-M12™ product range

Manufacturer "Techtronic Industries Central"

Techtronic Industries Central

Europe GmbH
Walder Str. 53
40724
Hilden D
02103/960-0
info.ce@tti-emea.com

Article type:	Cross line laser
Battery capacity (Ah):	4
Battery voltage (V):	12
Brand:	Milwaukee
Functions:	Horizontal levelling, vertical alignment, levelling
Laser colour:	green
Levelling range:	4°
Manufacturer:	TECHTRONIC
Measuring accuracy:	0.3 (mm/m)
Model:	M123PL-401C
Number of batteries:	1
Number of lasers (st):	3
Operating mode:	Battery operation
Running time (h):	15
Scope of delivery:	Holder, HI-VIS target plate, 1 x M12 B4 battery pack, C12 C charger, transport case
Self-levelling:	Yes
Tripod threaded mount:	1/4", 5/8"
Weight with batteries/rechargeable battery approx.:	1500
Working range-Ø without receiver (m):	38
Working range-Ø with receiver (m):	100
