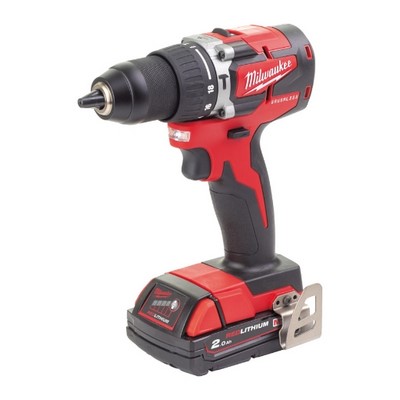

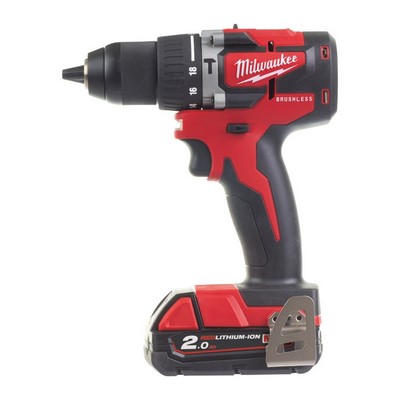

Milwaukee M18™ compact brushless cordless impact drill driver

Extremely handy: Only 165 mm long for working in hard-to-reach places
Improved 13 mm metal quick-action drill chuck for easy bit changes and strong bit retention
REDLINK™ electronics - overload protection in the machine and battery ensures a long service life
The REDLITHIUM™ battery offers a perfectly harmonised design, advanced electronics and loss-free power output for a longer service life and longer service life
With max. 60 Nm torque, the machine is the ideal combination of power and manoeuvrability
Metal belt clip
Battery charge level indicator and LED illumination of the work area
100% system-compatible with the MILWAUKEE®-M18™ product range

Manufacturer "Techtronic Industries Central"

Techtronic Industries Central

Europe GmbH
Walder Str. 53
40724
Hilden D
02103/960-0
info.ce@tti-emea.com

Article type:	Cordless impact drill
Battery capacity (Ah):	2
Battery technology:	Li-ion
Battery voltage (V):	18
Brand:	Milwaukee
Drill chuck clamping range from (mm):	1.5
Drill chuck clamping range up to (mm):	13
Drilling Ø in masonry max. (mm):	16
Drill Ø in steel max. (mm):	13
Drill Ø in wood max. (mm):	52
Drive technology machines:	Battery
Idle speed 1st gear from (min-1):	0
Idle speed 1st gear up to (min-1):	500
Idle speed 2nd gear from (min-1):	0
Idle speed 2nd gear up to (min-1):	1800
Length (mm):	165
Manufacturer:	Techtronic
Max. number of strokes (min-1):	27000
Model:	M18 CBLPD-202X
Noise level (dB):	104.8
Number of batteries:	2
Number of gears:	2
Scope of delivery:	2 x 2.0Ah battery, charger in case, belt clip
Screw Ø max. (mm):	6
Tool holder:	Quick-action drill chuck
Torque for hard screwing max. (Nm):	60
Uncertainty at K (m/s²):	1.5
Use Drilling & screwing:	Drilling, percussion drilling, screwing
Vibration emission value ah (m/s²):	12.4 m/s² for impact drilling in concrete, 1.44 m/s² for drilling in metal, 0.85 m/s² for screws
Weight (kg):	1.5
