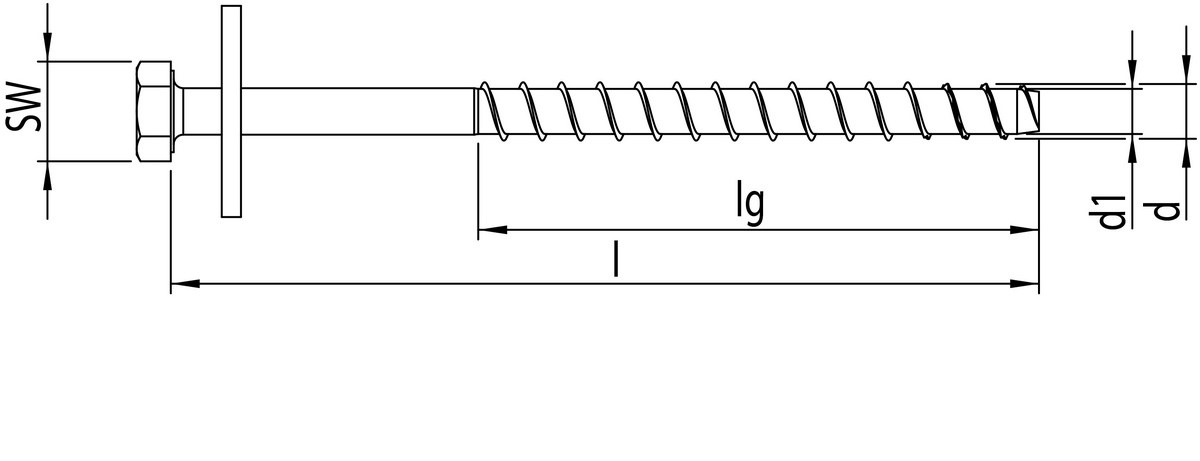

MULTI-MONTI-plus SS , hexagon head with pressed-on washer

The new MULTI-MONTI®-plus (MMS-plus) screw anchor with optimised standards is a further development of the MULTI-MONTI® concrete screw. It is screwed directly into a pre-drilled hole without an anchor and can be loaded immediately. The reinforced toothing on the screw tip cuts an internal thread into the building material when it is screwed in. This creates a positive fit, which is ultimately used for anchoring. This not only simplifies the installation process, but also guarantees the craftsman a high degree of application safety. The MULTI-MONTI®-plus concrete screw can be used close to the edge and without a torque spanner, is completely removable and can be reused after testing.

Product strengths

New standard: hexagon head with pressed-on washer
Optimised concrete thread with more effective area
Can be set by machine and can be loaded immediately
Additional load classes per diameter and improved installation safety

Manufacturer "Heco Schrauben GmbH & Co. KG"

Heco Schrauben GmbH & Co. KG

Dr-Kurt-Steim-Str. 28
78713
Schramberg D
07422 - 9890
info@heco-schrauben.de

More products from Heco Schrauben GmbH & Co. KG

Article type:	Concrete screw
Brand:	HECO screws
Contents (st):	25
Diameter (mm):	12
Head drive:	Hexagon
Head shape:	Hexagon head
Length (mm):	100
Manufacturer:	Heco screws
Manufacturer designation:	MULTI-MONTI®-plus SS screw anchor
Material screws:	Steel
Screw with sealing disc:	true
Standard:	ETA-15/0784
Suitable for aluminium & sheet metal:	true
Suitable for concrete:	true
Suitable for plastic:	true
Suitable for wood:	true
Surface treatment of hardware:	blue galvanised, A2K
Tested by building authorities:	true
Thread division:	Solid thread
Thread pitch:	Coarse thread
Thread type:	Concrete thread
suitable for:	SW 15
