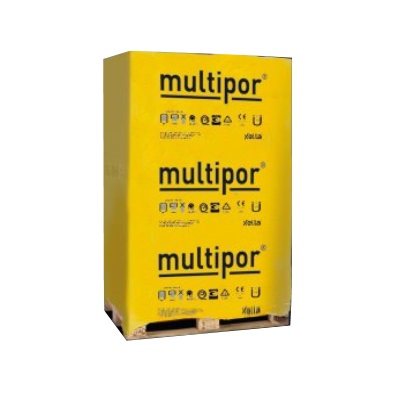

Multipor mineral insulation board

Solid, mineral, monolithic thermal insulation material made of calcium silicate hydrates, lime, sand, cement, water, pore-forming agents (porosity >95 % by volume)

Area of application

Interior insulation of walls (WI, WTR)
Ceiling insulation systems on top and underneath: underground car parks, cellars, driveways (DI, DEO)
Thermal insulation for pitched and flat roofs (DAD, DAA dh, DAA ds, DZ)
External thermal insulation composite system (WAP)
External insulation of walls under cladding (WAB)

Other properties

Institut Bauen und Umwelt e.V. (IBU e.V.): EPD-XEL-2009212-D "environmentally compatible building product"
Naturplus quality mark: 0404-0812-0881
harmless in terms of building biology and microbiology, inhibitory effect against fungi and microorganisms, fully recyclable
eco-Institut label: ID 0813-33144-001 (VOC-free: Standard A+)

Manufacturer "Xella Deutschland GmbH"

Xella Deutschland GmbH

Düsseldorfer Landstraße 395
47259
Duisburg D
0203/60880-0
info@xella.com

More products from Xella Deutschland GmbH

Area of application Insulation materials:	Wall
Area of application Insulation materials according to DIN 4108-10:	WI
Article type:	Mineral insulation board
Brand:	Multipor
Compressive stress (kPA):	200
Contents (st):	144
Edge formation Insulation materials:	Stump
Fire protection class:	A1
Hint:	solid, mineral, monolithic, thermal insulation material made of calcium silicate hydrates, ingredients: lime, sand, cement, water, pore-forming agent, hydrophobic agent, primer (porosity approx. 95 % by volume)
Insulation material:	Calcium silicate
Length (mm):	600
Manufacturer:	Xella
Manufacturer designation:	Mineral insulation board
Melting point:	? 1.200 °C
Nominal value of thermal conductivity ?D (W/mK):	.04
Rated value of thermal conductivity ? (W/mK):	.042
Series:	TOPwall
Surface insulation materials:	smooth
Thickness (mm):	50
Use of insulating materials:	Interior wall insulation
Width (mm):	390
