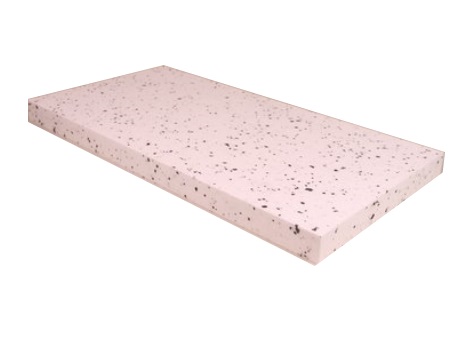

Rygol floor insulation board EPS 035 DEO dm

RYGOL floor insulation boards from the BASIC series are used for thermal insulation under screeds. With a surface pressure load of 100kPa and a low installation height, they are the standard for efficient thermal insulation in new builds, refurbishments and renovations. The simple installation ensures rapid construction progress in residential, office and commercial buildings.

Properties:

Safety thanks to polymeric flame protection
For dry and wet screeds
High thermal insulation
High compressive strength
Low construction height
Simple, quick installation
Levelling of uneven floors
Resistant to mould and moisture
Rot-proof
Permanently pleasant living comfort
100% recyclable

Installation instructions:

The boards are laid tightly butted and in a bond, avoiding cross joints. In the case of floating screeds, a PE edge strip must be applied to the contact surfaces with the wall and a suitable film must be laid on the thermal insulation boards before screeds are applied to prevent screed material from penetrating into the insulation layer.

Manufacturer "Rygol Dämmstoffe Werner Rygol"

Rygol Dämmstoffe Werner Rygol

Kelheimer Str-. 37
93351
Painten D
09499 - 94000
painten@rygol.de

More products from Rygol Dämmstoffe Werner Rygol

Area of application Insulation materials:	Floor
Area of application Insulation materials according to DIN 4108-10:	DEO dm
Article type:	Insulation board
Brand:	Rygol
Coating Insulation materials:	No
Compressive stress (kPA):	100
Edge formation Insulation materials:	Stump
Fire protection class:	E
Insulation material:	EPS (expanded polystyrene)
Length (mm):	1000
Manufacturer:	Rygol insulation materials
Manufacturer designation:	BASIC floor insulation board
Nominal value of thermal conductivity ?D (W/mK):	.034
Rated value of thermal conductivity ? (W/mK):	.035
Thermal conductivity group:	WLG 035
Thickness (mm):	20
Use of insulating materials:	Floor insulation
Width (mm):	500
