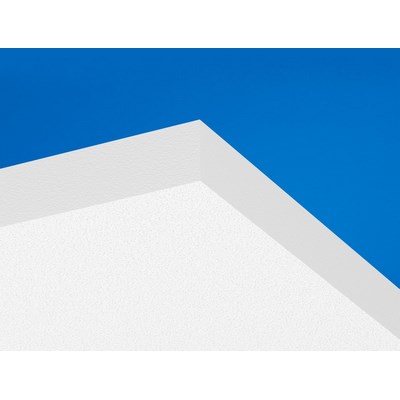

Ecophon Solo Rectangle ceiling sail

Ecophon Solo™ Rectangle is an acoustic solution when a suspended ceiling with wall connection is not possible, for example when TABS (thermoactive building system) is used for cooling or when the room volume needs to be maintained
Solo™ Rectangle is a frameless free-hanging ceiling element that offers a wide range of design options in terms of colour and mounting options
The three different suspension options are: adjustable wire suspension, 1-point ceiling fastener and adjustable direct fastener
The combination with the further developed absorber anchor (patented) makes it possible to install the elements at different levels and angles
The Ecophon Solo™ Rectangle elements 2400x1200x40 mm weigh approx. 11.5 kg
They are made of glass wool, with the two visible surfaces coated with Akutex™ FT colour coating
The edges are precisely squared and colour-coated
Akutex™ FT is available for most Ecophon acoustic ceiling panels
In combination with the glass wool used for the panels, this special surface achieves optimum sound absorption
Compared to the Akutex™ T surface, the average pore size of the colour application is less than half, while the number of pores is twice as high
Due to the smaller pores, the product is more dirt-repellent and easier to clean
The unique acoustic properties are the same for both surfaces

Manufacturer "Saint Gobain Ecophon AB"

Saint Gobain Ecophon AB

Yttervägen 1
0
Hyllinge S
0451 - 8995201

Application area drywall construction:	Ceiling
Article type:	Ceiling sails
Brand:	Ecophone
Colour:	white
Drywall material:	Mineral fibre
Field of application:	Inside
Fire protection class:	A2
Fleece lamination:	none
Hole pattern:	Unperforated
Length (mm):	1800.00
Manufacturer:	Ecophone
Model:	Akutex™ FT
Properties:	Sound absorption through front and rear, right-angled, colour-coated edges, great creative freedom
Series:	Solo™ Rectangle
Thickness (mm):	40.00
Width (mm):	1200.00
