Schwabe heavy current extension CEE
- The heavy-duty "RN-F" rubber hose cables have rubber insulating sheaths and are coated with neoprene rubber
- They are resistant to oil, UV and ozone and are suitable for temperature ranges from -30°C to +60°C
- Thanks to their good mechanical resistance, they can withstand high loads in dry and damp rooms as well as in industrial water and can be used permanently outdoors, e.g. in agricultural operations or on construction sites
- Approved for construction sites and farms
- Heavy-duty rubber cable H07RN-F
- Colour: black
- CEE plug or CEE phase reversing plug and CEE coupling with hinged cover
- Plugs and couplings of the latest generation, "Made in Germany"
- 400 V, 5-pole, 6 h
- IP44: protected against foreign bodies and splash water
Manufacturer "as - Schwabe GmbH"
as - Schwabe GmbH
Technik Produkte
Merkurstraße 10
72184
Eutingen im Gäu D
07457/94853-0
info@as-schwabe.de
Technik Produkte
Merkurstraße 10
72184
Eutingen im Gäu D
07457/94853-0
info@as-schwabe.de
| Article type: | Power extension |
|---|---|
| Brand: | as-Swabian |
| Cable cross-section (mm²): | 4 |
| Cable designation: | H07RN-F |
| Cable length (m): | 25 |
| Colour: | black |
| Electrical installation material: | Metal, neoprene rubber |
| Field of application: | Exterior |
| IP protection class: | IP44 |
| Input connection: | CEE plug 5-pin |
| Mains voltage (V): | 400 |
| Manufacturer: | Swabian |
| Max. load capacity (W): | 22000 |
| Output connection: | CEE coupling 5-pin |
| Properties: | Oil-resistant, tested to IEC 60309, DIN VDE 0282-4, with phase inverter |
| Rated current (A): | 32 |
| WEEE registration number: | DE61303276 |
| Hersteller |
| Produktinformation |
0 of 0 reviews
Average rating of 0 out of 5 stars
Login
No reviews found. Share your insights with others.

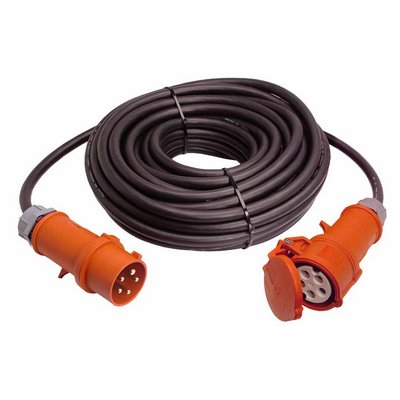

Schwabe CEE power extension 25m 400V 32A max. 22 kW H07RN-F 5G4 black
Product number:
7030370166
EAN:
4011160605185
€314.16
Content:
1
STÜCK
Delivery time of 4 business days once payment has been received
