Schwabe IronCoat Xperts cable reel

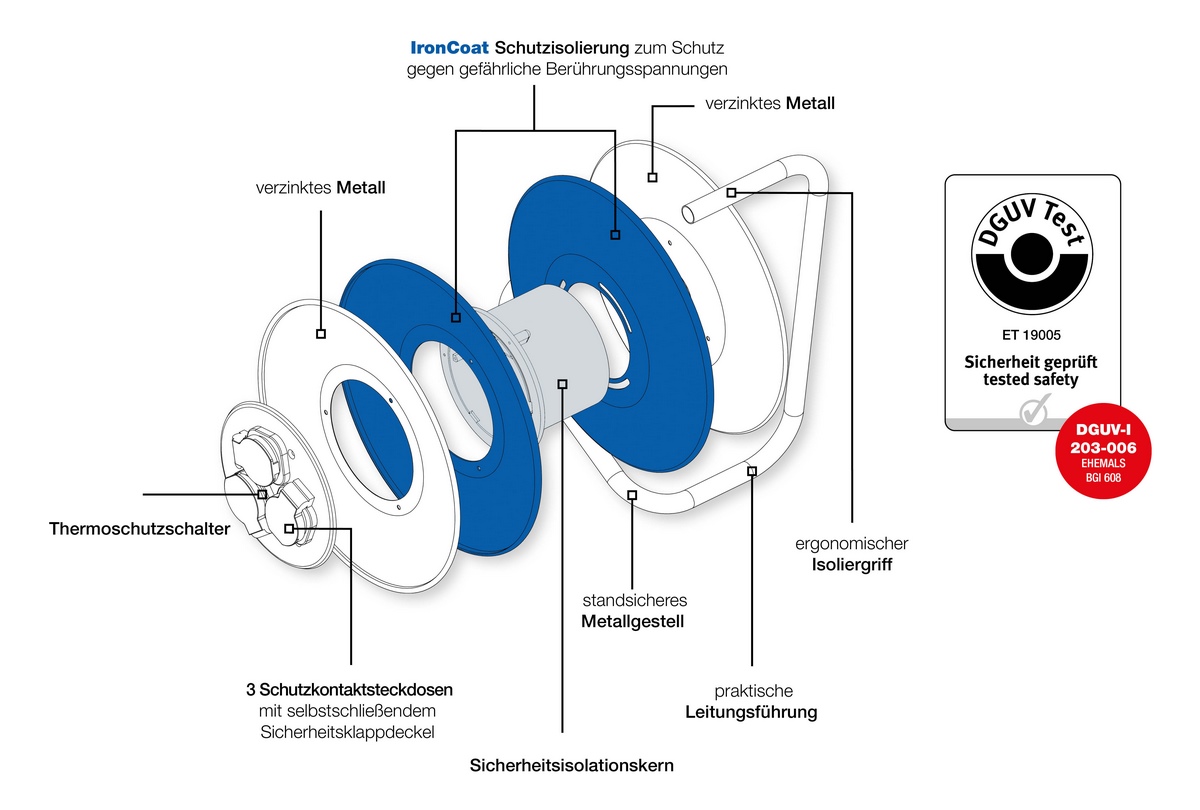

IronCoat metal cable reels combine the advantages of a classic sheet steel cable reel with improved protection against dangerous contact voltages
The special patented protective insulation of the side parts protects against electric shocks caused by defective cable strands when the cable is rolled up
As a result, no current can be emitted from the inside to parts of the cable reel that can be touched over a large area, which ensures protection against serious damage to health
Reel body made of hot-dip galvanised sheet steel with special protective insulation
With sturdy, shock-absorbing X-double tube frame with star grip brake
With ergonomic, non-slip 2-component handle and cable guide
With H07BQ-F polyurethane construction site cable
With earthing contact plug
With 3 safety sockets with safety hinged lids and hammer markings
With built-in thermal circuit breaker
IP44: protected against foreign bodies and splash water
IronCoat metal cable reels have been tested by the DGUV (German Social Accident Insurance) and fulfil the requirements of GS-ET 35 / BGI 608
They are therefore ideally suited for professional use on construction and assembly sites

Manufacturer "as - Schwabe GmbH"

as - Schwabe GmbH

Technik Produkte
Merkurstraße 10
72184
Eutingen im Gäu D
07457/94853-0
info@as-schwabe.de

Article type:	Cable reel
Brand:	as-Swabian
Cable designation:	H07BQ-F 3G2.5
Cable length (m):	40
Diameter (cm):	32
Drum body material:	Sheet steel
Equipment:	16 A
Field of application:	Inside & outside
Hinged lid incl.:	true
IP protection class:	IP44
Length (m):	40
Manufacturer:	Swabian
Number of current outputs (st):	3
Standard:	EN 61242, DIN VDE 0620-2-1, DIN EN 50525-2
Supply voltage (V):	230
Thermal circuit breaker incl.:	true
WEEE registration number:	DE61303276
