Extremely robust, patented drum body made of TARMA-PLAST hard plastic.
Patented, fold-out and plastic-coated chassis in red safety colour made of hardened steel.
2 large transport handles for easy transport by 2 people.
The ergonomic, fold-out handle makes the drum very easy to move, even on uneven ground.

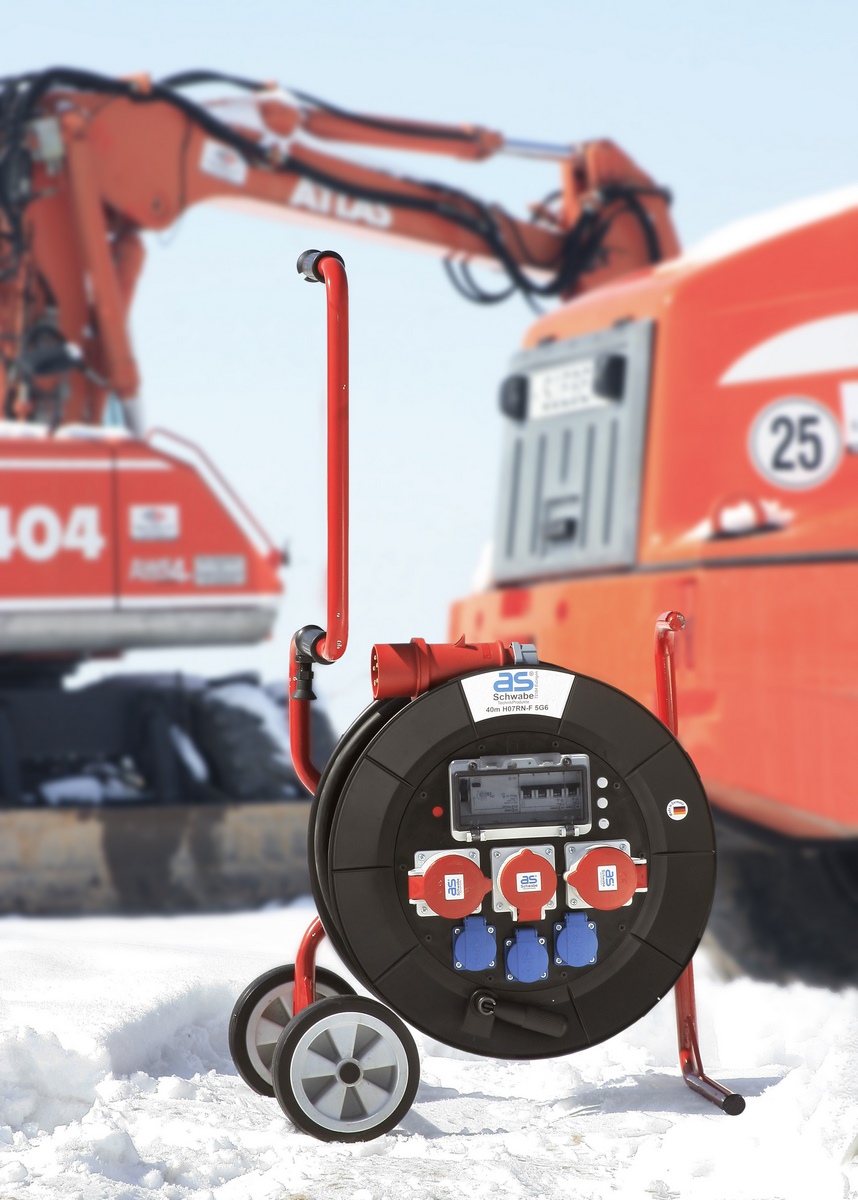

Wheels suitable for heavy construction site terrain.
Easy and safe rolling of the drum thanks to the drum body being positioned in the direction of travel.
Square, space-saving design for easy transport in vehicles.

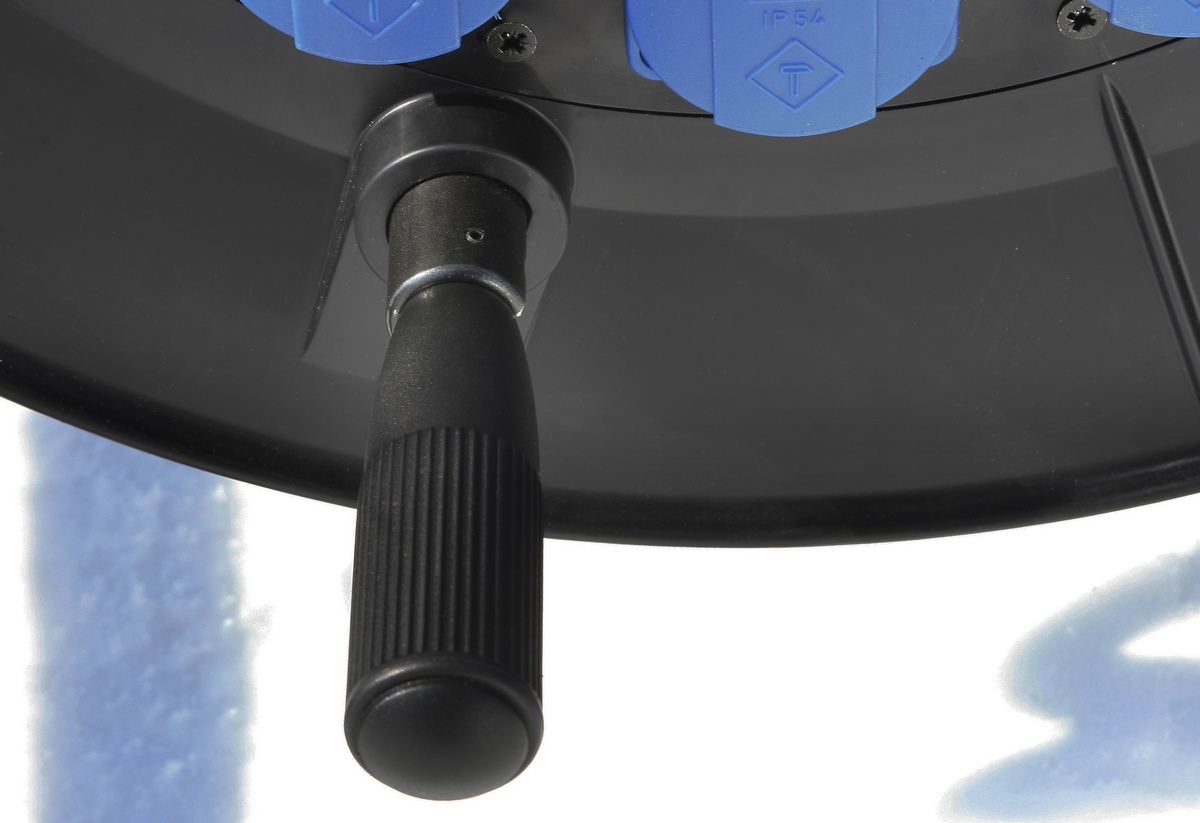

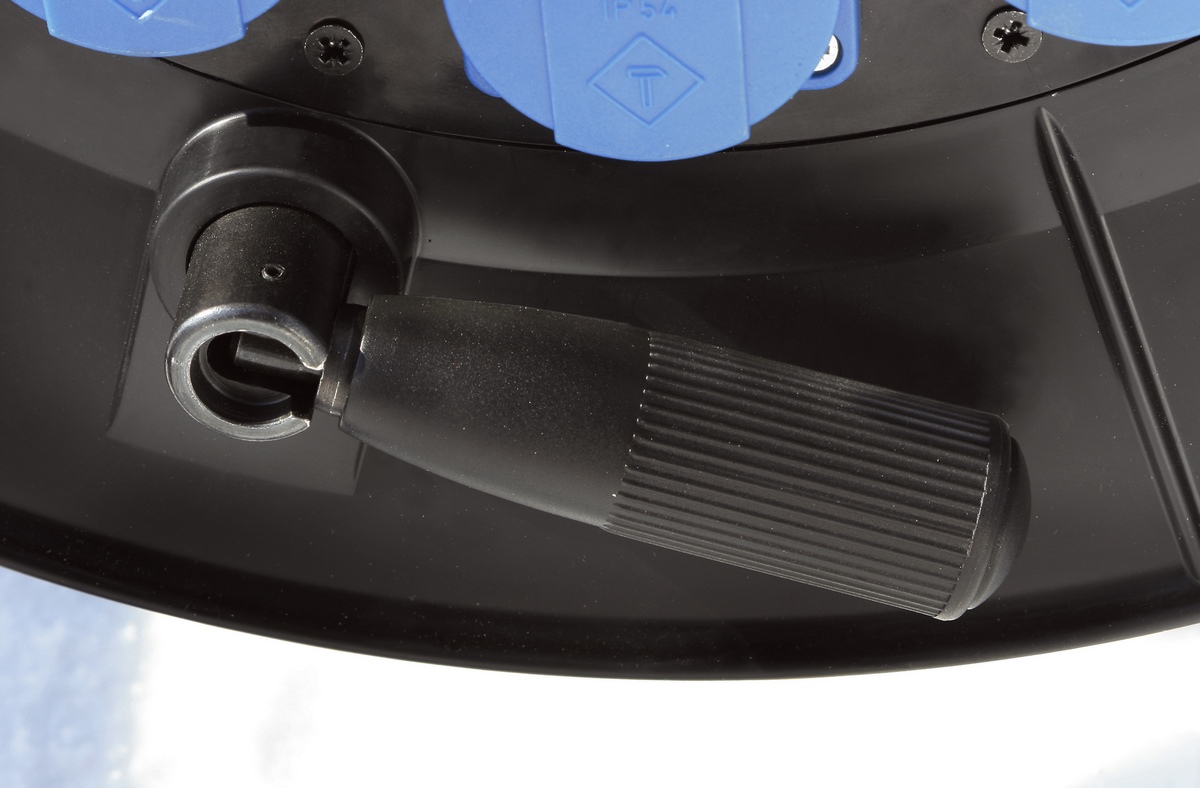

Large fold-down crank handle for convenient reeling of the drum.

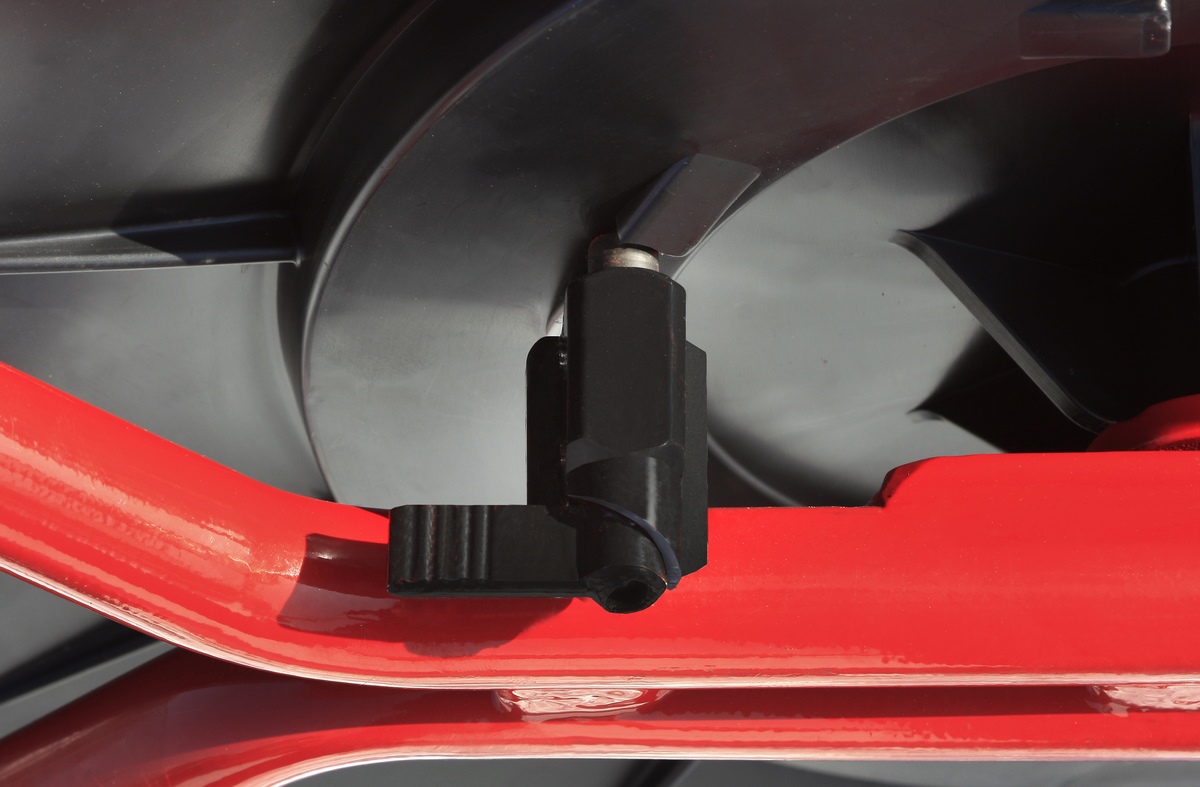

Solid brake with locking mechanism for safe transport.

Manufacturer "as - Schwabe GmbH"

as - Schwabe GmbH

Technik Produkte
Merkurstraße 10
72184
Eutingen im Gäu D
07457/94853-0
info@as-schwabe.de

Article type:	Cable reel
Brand:	as-Swabian
Cable colour:	black
Cable designation:	H07RN-F 5G6
Cable length (m):	40
Colour:	black
Diameter (cm):	46
Drum body material:	Plastic

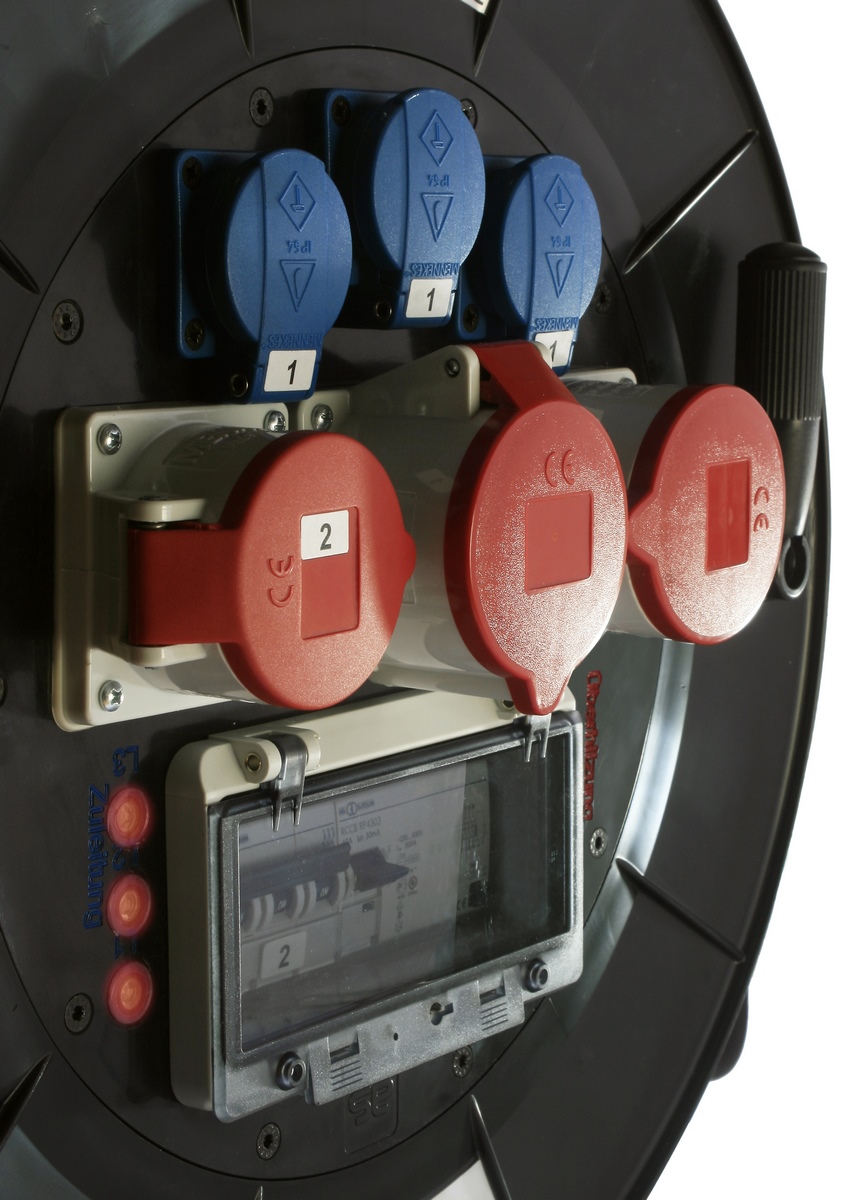

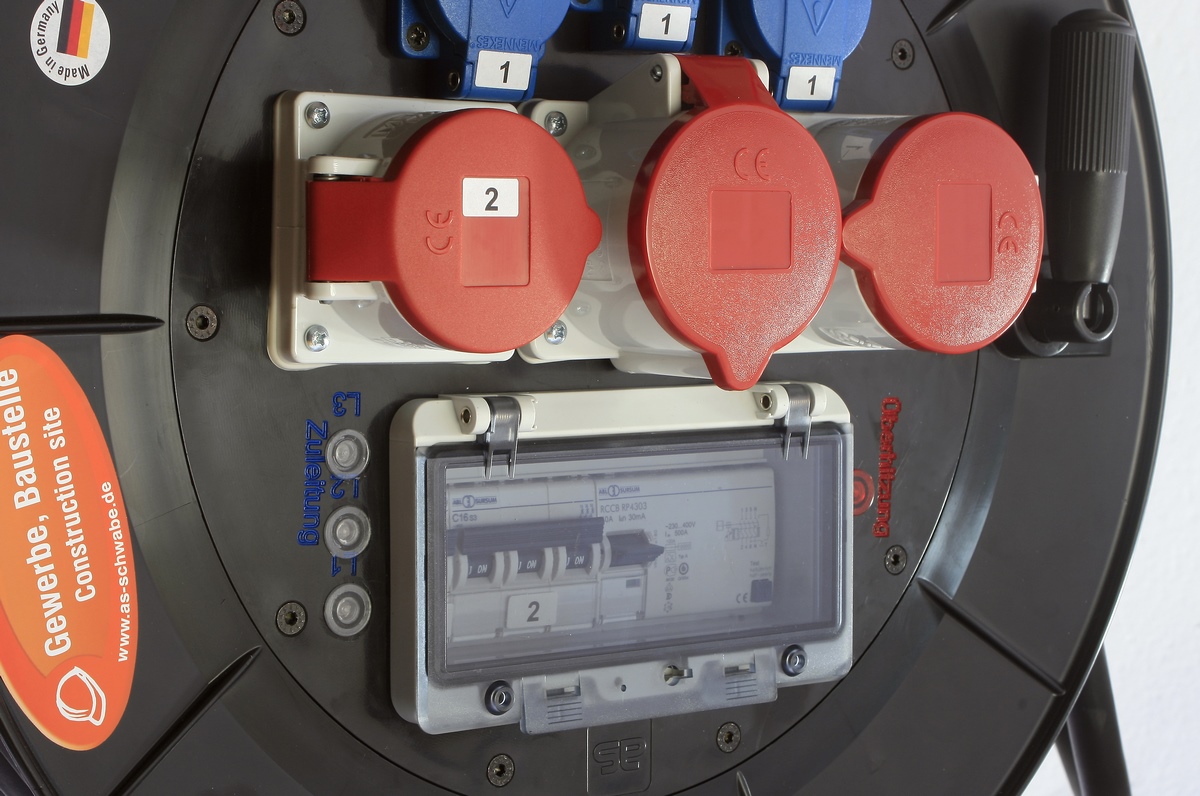

Equipment:	3x splash-proof socket outlets with earthing contact 230 V, 1x CEE socket outlet 5-pin 400 V / 16 A, 2x CEE socket outlet 5-pin 400 V / 32 A, 1 x RCD 40 A, 4-pin, 30 mA, 1 x circuit breaker C 16 A, 1-pin, 1 x circuit breaker C 16 A, 3-pin
Field of application:	Inside & outside
Hinged lid incl.:	true
IP protection class:	IP44
Length (m):	40
Manufacturer:	Swabian
Number of current outputs (st):	6
Standard:	DIN VDE 0620, IEC 60309, DIN EN 50525-2
Supply voltage (V):	400
Thermal circuit breaker incl.:	true
WEEE registration number:	DE61303276
